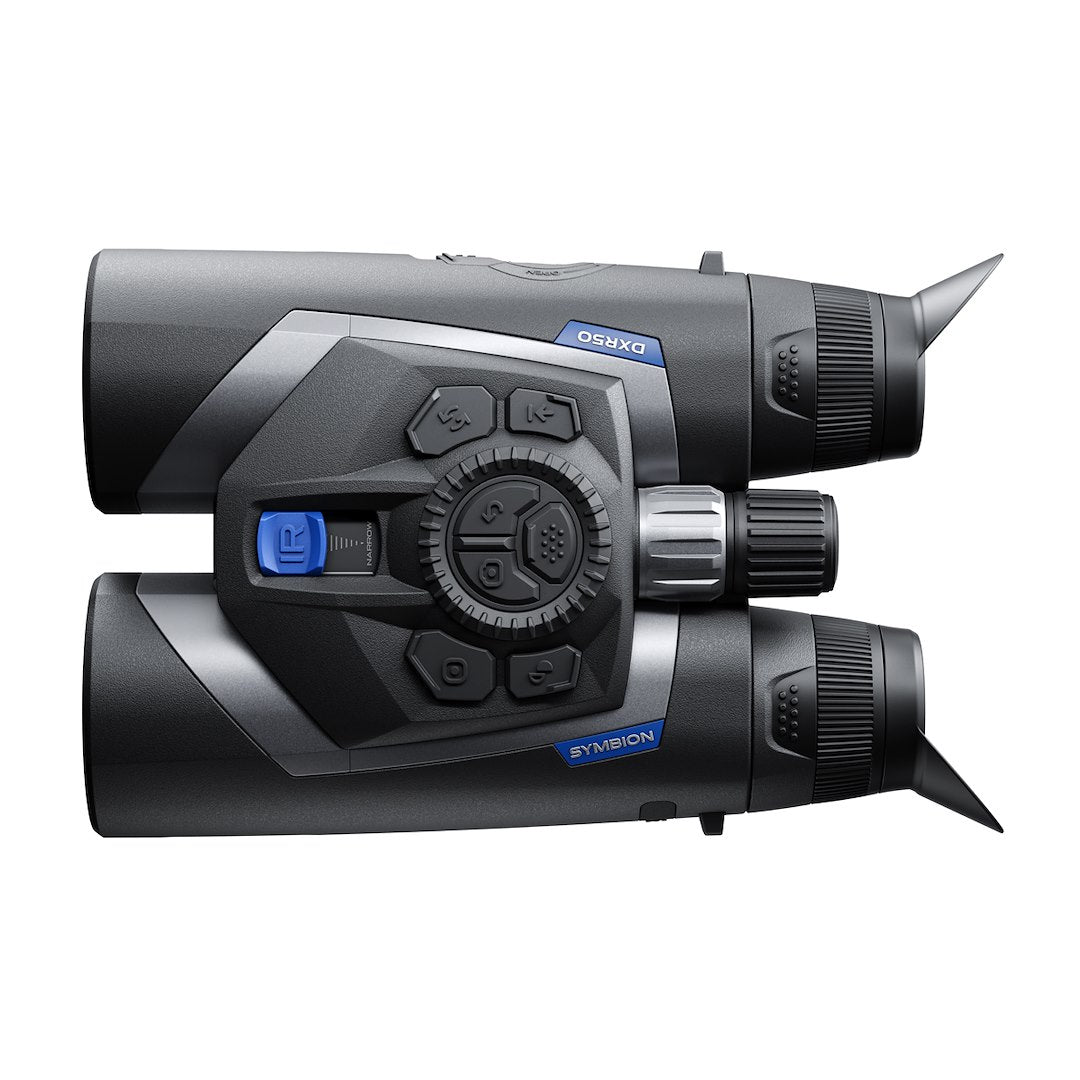

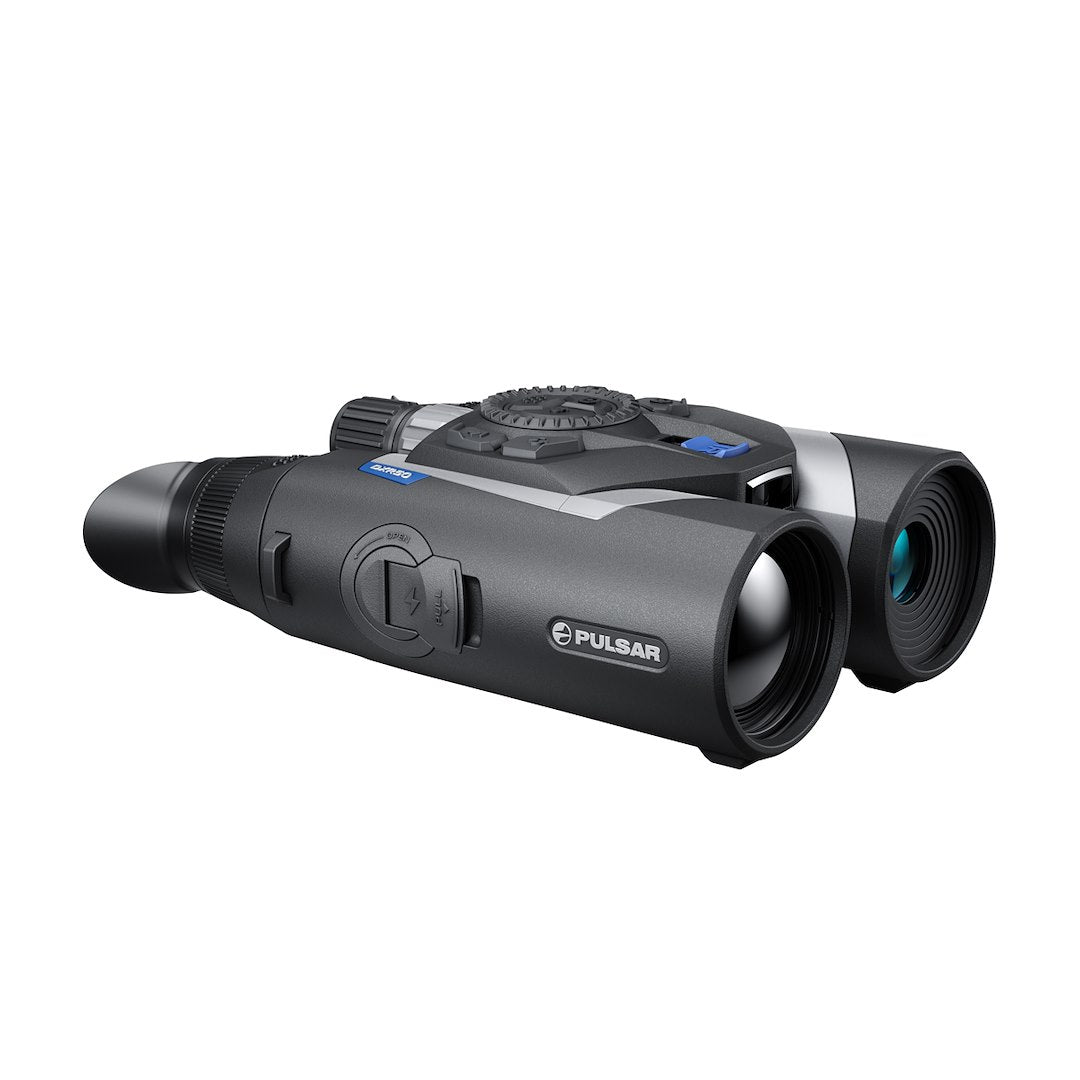

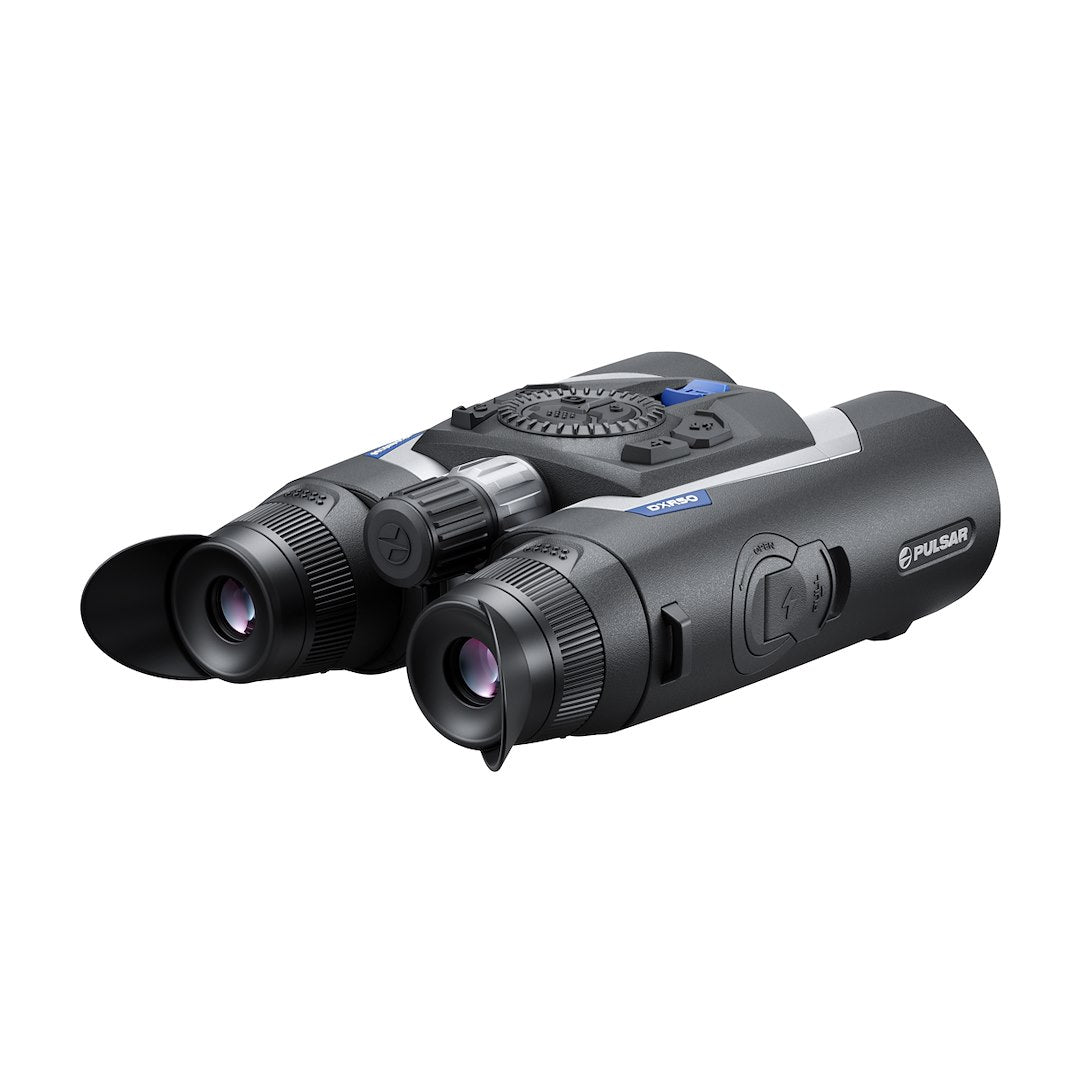

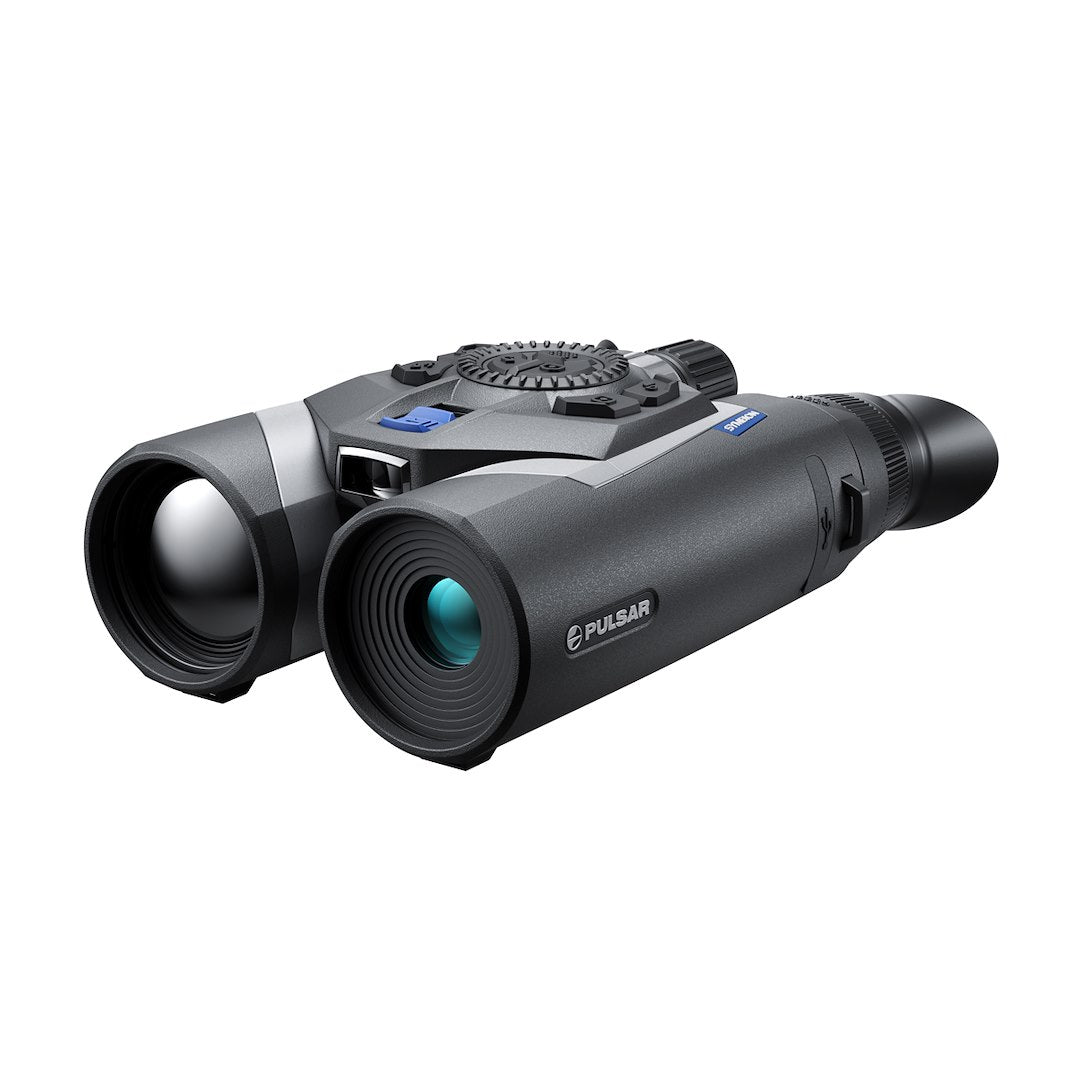

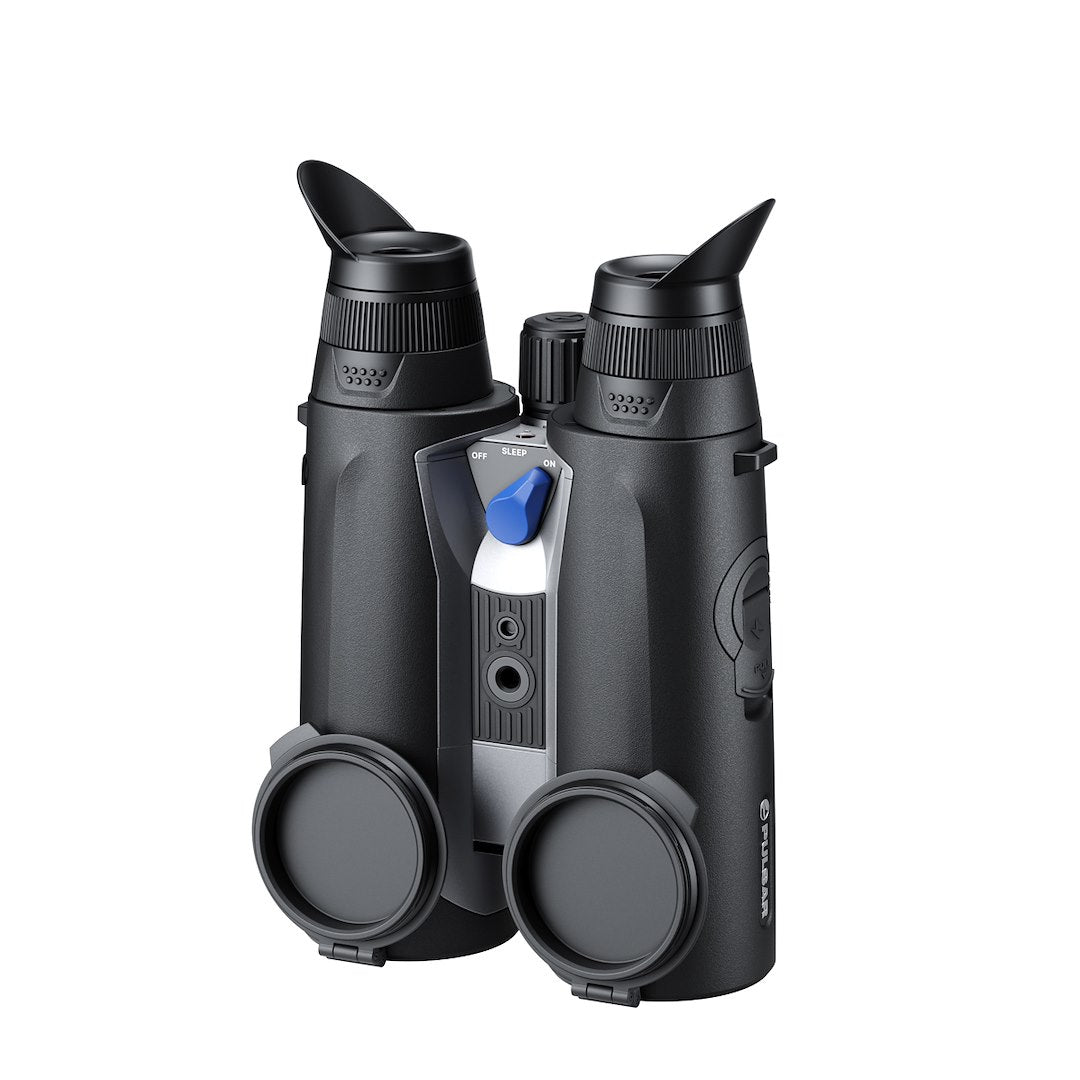

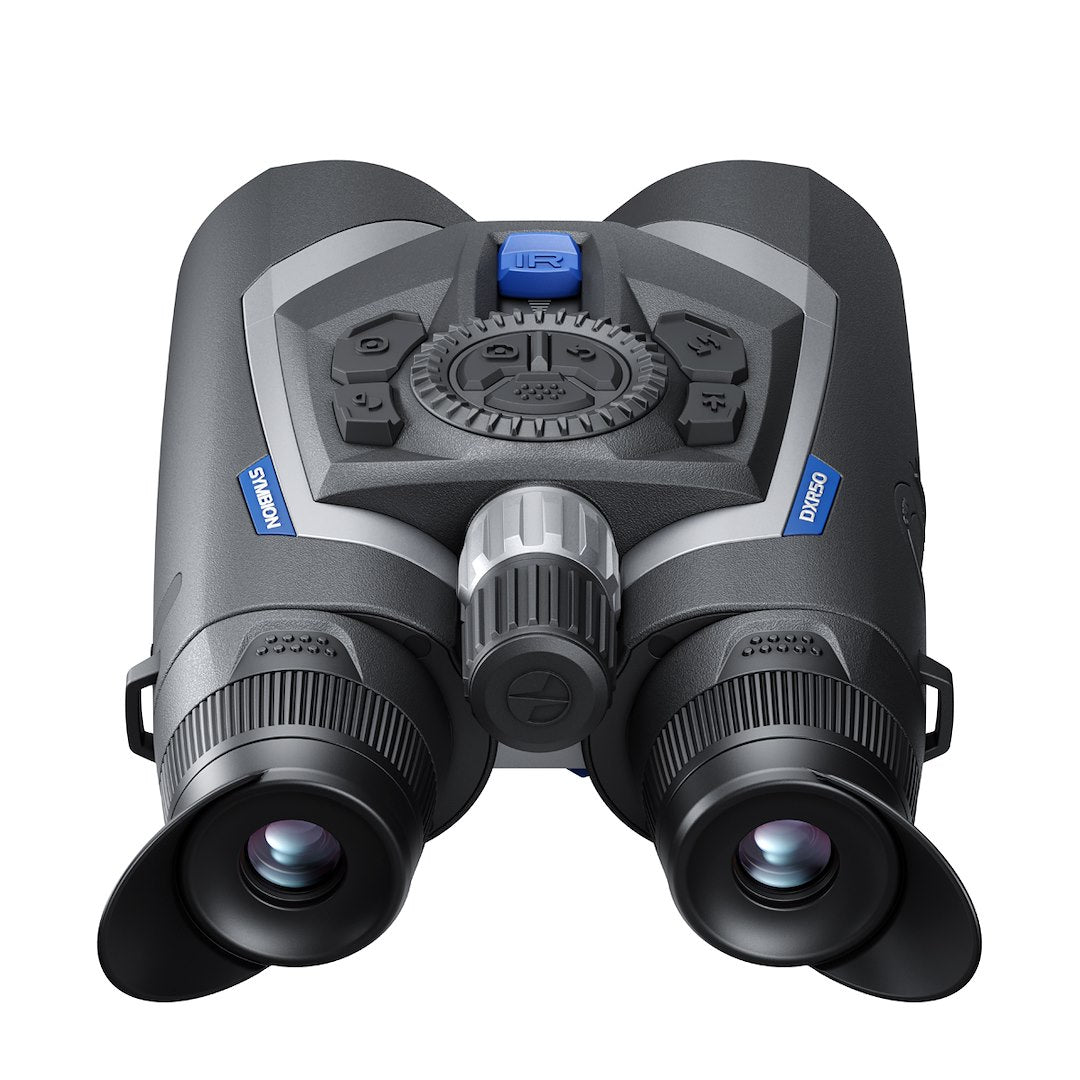

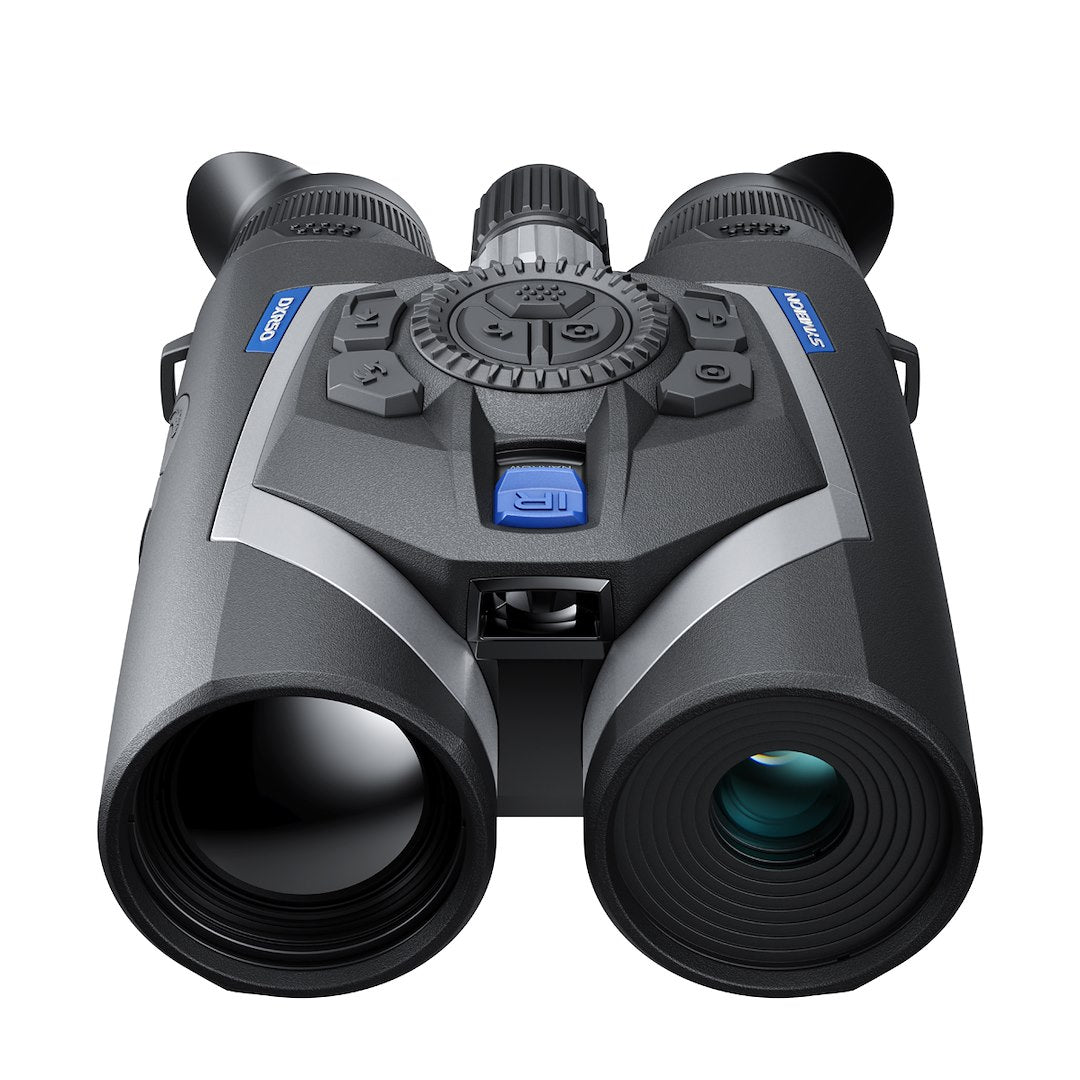

Pulsar Symbion LRF DXR50 Multispectral Binoculars
Pulsar Symbion LRF DXR50 Multispectral Binoculars
Dostawa: 2–4 dni robocze
The multispectral binocular Pulsar Symbion LRF DXR50 is an advanced observation device that combines thermal imaging, 4K night vision, color day vision and a precise laser rangefinder in one design. Thanks to the use of two independent lenses and sensors, the user receives an extremely detailed, contrasting, and realistic image in all lighting and weather conditions.
The modern, yet classic design of the binocular ensures excellent ergonomics and high comfort for long-term observations. The thermal imaging channel uses a new generation 640×480 sensor with a pixel size of 12 µm and high sensitivity sNETD <18 mK. Such high sensitivity allows for the detection of minimal temperature differences, even in difficult conditions such as fog, precipitation, or high air humidity. Optical magnification of 4×, with the possibility of digital increase up to 32×, enables effective target identification at long distances. The highest class germanium lens used provides a detection range for objects the size of a human silhouette up to 2300 meters.
The day-night vision channel is based on a 4K 3840×2160 CMOS sensor, which guarantees excellent sharpness and richness of detail in both color day vision and complete darkness. Optical magnification of 6.5×, with the possibility of digital increase up to 26×, allows for precise observation even at long distances. All this is complemented by a built-in 850 nm infrared illuminator, ensuring effective night observation, and a convenient beam focus adjustment slider, which significantly improves operating comfort.
The binocular allows for free and quick switching between thermal imaging, night vision and day vision modes with a single button. Additionally, thanks to the picture-in-picture (PIP) mode, simultaneous viewing of images from two channels is possible, which provides a fuller picture of the surroundings and greater control over observation.
Digital image stabilization allows for comfortable observations at high magnifications, even without support or while moving.
The built-in laser rangefinder (LRF) enables precise distance measurement up to 1500 meters with an accuracy of up to 1 meter.
The image is displayed on frost-resistant AMOLED Full HD 1920x1080 displays, ensuring high fluidity, contrast, and viewing comfort.
A refresh rate of 50 Hz guarantees a natural and stable image, even when observing fast-moving objects.
The binocular is equipped with a built-in video and photo recorder with 64 GB memory, allowing you to save the most important moments.
The Wi-Fi module allows collaboration with the Polish-language StreamVision 2 application, offering remote image preview, function control, and software updates.
The Polish-language menu and intuitive operation make using the device quick and convenient even for less experienced users.
The power supply is based on a quick-change APS5 battery with a capacity of 4900 mAh, which provides up to 10 hours of continuous operation on a single charge, and two batteries are included in the set. The casing meets the IP67 standard, which means full water and dust resistance, even when submerged in water.
Pulsar Symbion LRF DXR50 is a premium multispectral binocular, offering the highest image quality, distinguished by perfect finish, the highest quality of components used and the precision of European manufacturing, designed for the most demanding users and extreme field applications.
Key features of Pulsar Symbion LRF DXR50:
- MULTISPECTRAL binoculars
Pulsar Symbion LRF DXR50 is a multispectral binocular equipped with two independent lenses and sensors, offering an exceptionally detailed thermal image, 4K night vision, and color day vision.
Thermal imaging sensor with sensitivity less than 18mK
The advanced sNETD sensor with sensitivity <18 mK guarantees precise detail recognition even in adverse weather conditions such as rain and fog, even when temperature contrast is low. Minimal temperature differences are perfectly visible.
- Full comfort during long observations
Binocular observation significantly reduces eye fatigue during use. The human brain is accustomed to receiving images from two sources simultaneously and combining them into a complete whole. When observing with one eye, we force the brain to change its natural processes, which can quickly lead to discomfort and fatigue.
- Seamless switching between night vision and thermal imaging mode.
Symbion supports three observation modes: thermal imaging, night vision, and color day vision, which can be freely switched with a single button.
- Built-in laser rangefinder
The rangefinder allows precise distance determination up to 1500 meters with an accuracy of 1 meter.
- Modern microbolometers
The thermal imager has a sensor with 640x480 resolution and a pixel size of 12µm, ensuring incredible image detail.
- Digital image stabilization
The binoculars are equipped with digital image stabilization, which allows observations to be made at long distances and high magnifications without support, while moving, or in a moving vehicle.
- Proximity sensor
The Symbion binoculars are equipped with a proximity sensor, which automatically puts the binoculars into sleep mode when moved away from the eyes, and instantly restores the image when observation resumes.
- Highest quality night vision sensor
The night vision channel is based on the highest quality CMOS sensor with 4K 3840x2160 resolution, guaranteeing high image detail.
- Built-in infrared illuminator with beam focus adjustment
The built-in infrared illuminator with a wavelength of 850 nm, combined with innovative beam focus adjustment, guarantees high detail, long range, and ease of use.
- Software update capability
The company Pulsar allows software updates in its products, giving users access to the latest improvements. This unique feature means the device is constantly evolving and getting better.
- Digital zoom
The Pulsar Symbion LRF DXR50 in thermal imaging mode offers digital zoom up to 8x, providing magnification from 4x to 32x, while in night vision mode it offers 4x magnification, providing from 6.5x to 26x.
- Waterproof
The device has an IP67 waterproofing rating, meaning it is completely waterproof (submersible in water up to 1 meter for 30 minutes).
- Simple Operation
Intuitive operation combined with modern technology provides an effective yet comfortable-to-use binocular.
- Built-in video/photo recorder with 64 GB memory
Symbion has a built-in video and photo recorder with a capacity of 64 GB. The USB-C port allows you to transfer recordings directly to your computer.
- Built-in WiFi module, Polish-language Stream Vision 2 app
The binoculars can communicate with external mobile devices, where, using the free, Polish-language StreamVision 2 app, you can: view recorded images, save photos and videos to your phone or tablet's memory, control advanced device functions, save files to the free cloud, and update the device, equipping the binoculars with increasingly advanced features.
- Sensitivity gain adjustment
Thermal imaging mode has a three-level sensitivity gain adjustment, which improves detection and recognition quality in various observation conditions. In case of a decrease in temperature contrast (fog, precipitation, high humidity), it is recommended to increase the gain level.
- Smoothing filter
A function that improves image quality, allowing us to reduce digital distortion while maintaining a high level of sensitivity.
- Frost-resistant AMOLED displays with 1920x1080 pixel resolution
Displays with high resolution (1920x1080 pixels) combined with high resistance to extreme temperatures ensure that the device will not fail us even in the most difficult conditions.
- Extreme range of 2300m
The use of high-quality germanium optics ensures a detection range of up to 2300m.
- Picture in Picture Mode
Allows you to enlarge the central part of the image in a specially displayed window. The additional window occupies only 10% of the total display area.
In the Symbion LRF binoculars, this function allows simultaneous display of images from both optical channels, night vision and thermal imaging.
- Color Palettes
Various color palettes for the image are available – the user has as many as 9 versions in thermal imaging mode.(White Hot, Green, Black Hot, Hot Red, RedMonochrome, Rainbow, Ultramarine, Violet, Sepia), colored daytime image, and 3 versions in night vision mode
- Menu in Polish
To facilitate device operation, Pulsar products are equipped with a menu in Polish.
- High refresh rate
Thanks to the refresh rate of 50 Hz, even when observing moving objects, the image is smooth and observations are comfortable.
- Powered by APS5 battery
The quickly replaceable APS5 Li-ion battery with a capacity of 4900 mAh provides 10 hours of continuous operation on a single charge. The set includes 2 batteries; additionally, a regular power bank connected via the USB-C port can be used as an external power source.
- Wide temperature range
The binoculars can be used at any time of year – the device operates in a temperature range of -25 to +50 degrees Celsius.
