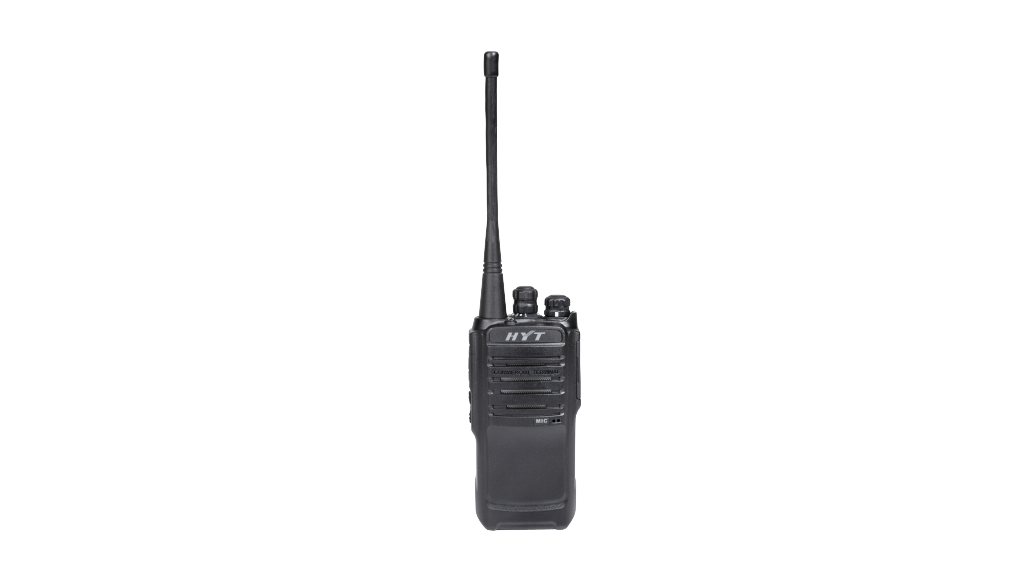

Hytera TC-508E is a new generation of the proven TC-508 — a professional analog radio with a UKE license, 48 channels in 3 zones, and IP54/MIL-STD-810H protection. Bluetooth is used exclusively for convenient programming and configuration cloning (Air Clone). The 1700 mAh BL1720 battery provides up to 14 hours of continuous operation.
48 channels
3 zones
14 h
Operating time (5-5-90)
IP54
MIL-STD-810H
2–4 W
VHF/UHF Power
UKE license required — the radio operates on frequencies requiring a license from the Office of Electronic Communications. The cost of the license depends on the scope of use. Contact AEGIS Systems — we assist with the licensing process.
Functions
- VOX — hands-free communication with a headset
- Scrambler — basic conversation encryption
- CTCSS/CDCSS — sub-tones and digital codes for channel privacy
- BCL (Busy Channel Lockout) — busy channel lockout
- TOT (Time-Out Timer) — protection against accidental transmission
- Monitor — channel monitoring before transmitting
- Air Clone — configuration cloning via Bluetooth (wireless)
Technical specifications
| VHF Band | 136–174 MHz |
|---|---|
| UHF Band | 400–480 MHz |
| Transmitting power | 2 W / 4 W (VHF); up to 4 W (UHF) |
| Number of channels | 48 channels / 3 zones |
| Channel spacing | 12.5 / 25 kHz |
| Battery | BL1720, 1700 mAh Li-Ion Polymer |
| Operating time | Up to 14 h @ 5-5-90 |
| Protection rating | IP54 |
| Resistance | MIL-STD-810H |
| Bluetooth | Yes (for programming / Air Clone only) |
| Operating temperature | -20°C to +55°C |
| UKE License | Required |
Kit contents
| Hytera TC-508E Radio | × 1 |
|---|---|
| BL1720 Battery (1700 mAh) | × 1 |
| CH10A07 Charger with PS1044 Power Adapter | × 1 |
| Hand strap | × 1 |
| Belt clip | × 1 |
