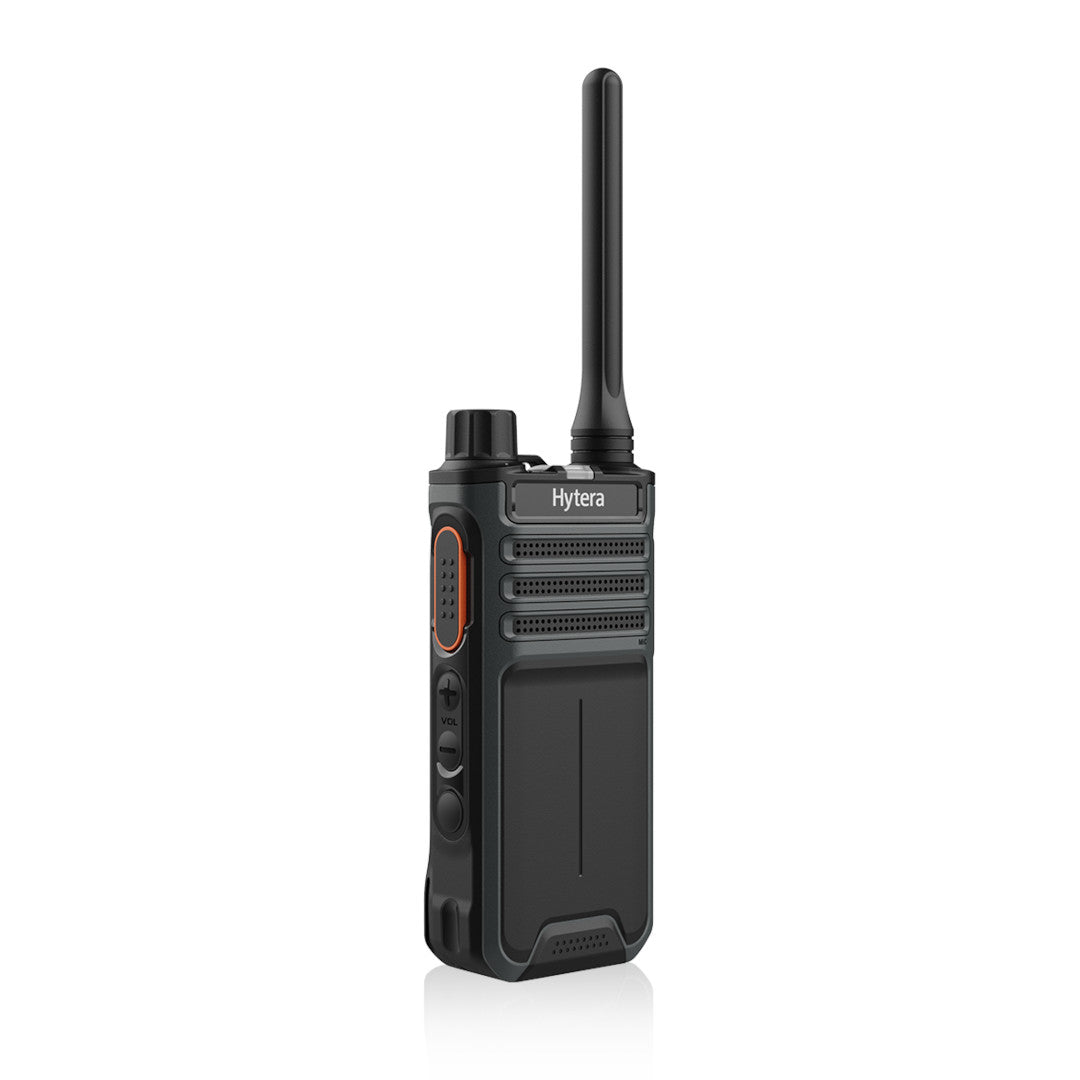

Hytera BP515LF – Digital-Analog DMR PMR446 Radio (256 channels, USB-C, IP54)
Hytera BP515LF is a license-free digital-analog PMR446 radio supporting the DMR Tier I standard. The DMR digital mode allows two independent conversations simultaneously on the same channel and offers better sound quality and greater range than analog PMR446. 256 channels in 4 zones, 1500 mAh battery, USB-C charging, IP54, MIL-STD-810G.
256 channels
4 zones, DMR + analog
18 h
Operating time (5-5-90)
DMR Tier I
License-free, PMR446
USB-C
Charging from power bank
BP515LF vs AP515LF: BP515LF supports DMR Tier I digital mode —
better range, clearer sound in harsh conditions, and 2 conversations on 1 channel.
AP515LF is analog only, but has a larger battery (4000 vs 1500 mAh) and 25 h of operation (vs 18 h).
Choose BP515LF if you prioritize range and digital quality; AP515LF if the priority
is long operating time without charging.
Features
- DMR Tier I digital mode and analog PMR446 — automatic switching
- Pseudo Trunking — dynamic channel assignment in DMR network
- Emergency Call
- VOX — hands-free communication with a headset
- CTCSS/CDCSS — sub-tones and digital codes
- Automatic scanning
- BCL (Busy Channel Lockout)
- TOT (Time-Out Timer)
- 3-level noise reduction adjustment
- Voice announcements — channel, battery status
Technical Specification
| Standard | PMR446 + DMR Tier I (license-free) |
|---|---|
| Band | 446.0 – 446.2 MHz |
| Transmit Power | 0.5 W |
| Number of Channels | 256 (4 zones, analog + digital) |
| Channel Spacing | 12.5 kHz |
| Battery | 1500 mAh Li-Ion, 7.4 V (BL1507) |
| Operating Time | Up to 18 h @ 5-5-90 |
| Charging | USB-C, 10 W (full 1.8 h / 1 h = 10 h operation) |
| Speaker | 3 W, up to 90 dBA |
| Protection Class | IP54 |
| Durability | MIL-STD-810G |
| Operating Temperature | -30°C to +60°C |
| Dimensions | 115×55×29.5 mm |
| Weight | Approx. 210 g (with battery) |
Kit Contents
| Hytera BP515LF Radio | × 1 |
|---|---|
| 1500 mAh Li-Ion Battery (BL1507) | × 1 |
| CH10A07 Desktop Charger with Power Adapter | × 1 |
| Belt Clip | × 1 |
| Hand Strap | × 1 |
