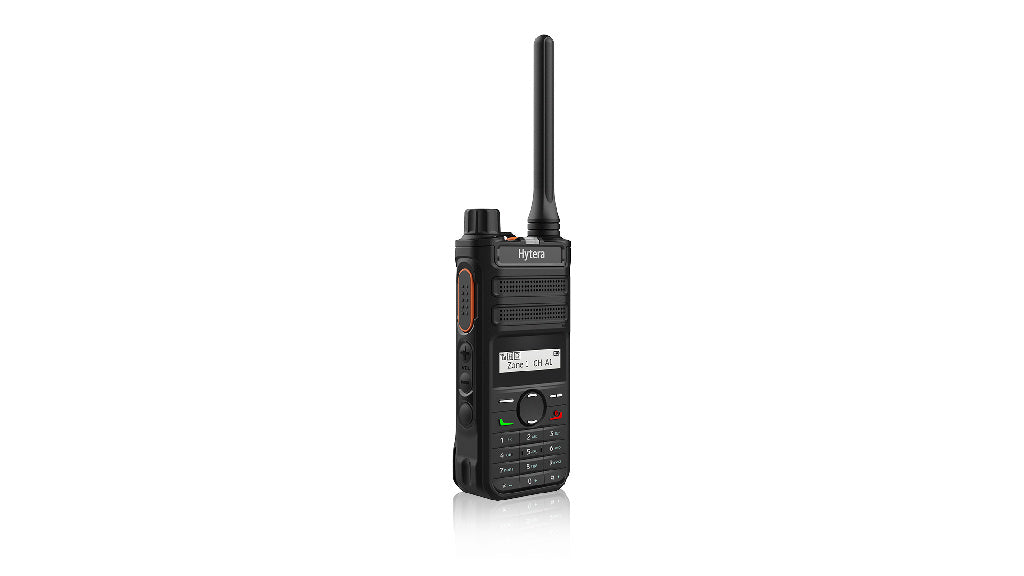

Hytera AP585 BT is an AP585 version with built-in Bluetooth — the same 1.4'' LCD display, 128 channels, IP54, MIL-STD-810G, with added support for wireless headphones (EHW07, EHW08) and Bluetooth PTT button (POA121). USB-C charging or via CH10A07 desktop charger. UKE license required.
128 channels
1.4'' LCD display
12 h
Operating time (5-5-90)
IP54
MIL-STD-810G
Bluetooth
BT headphones, BT PTT
AP585 vs AP585 BT: The only difference is the built-in Bluetooth module in the BT version — it enables operation with Hytera EHW07/EHW08 wireless headphones and POA121 wireless PTT. All other parameters are identical.
UKE license required — the radio operates on frequencies requiring a license from the Office of Electronic Communications.
Features
- Bluetooth — EHW07/EHW08 wireless headphones and POA121 PTT button
- 1.4'' LCD display — channel and battery view
- 128 channels
- Scrambler — basic encryption
- VOX, CTCSS/CDCSS, Scan
- USB-C charging or CH10A07 charger
Technical Specification
| VHF band | 136–174 MHz |
|---|---|
| UHF band | 470–527 MHz |
| Transmit power | 1–5 W (VHF) / 1–4 W (UHF) |
| Number of channels | 128 channels |
| Display | 1.4'' monochrome LCD |
| Bluetooth | Yes (BT headphones + BT PTT button) |
| Battery | BL1507, 1500 mAh Li-Ion |
| Operating time | Up to 12 h @ 5-5-90 |
| Protection rating | IP54 |
| Durability | MIL-STD-810G |
| Dimensions | 115×55×29.5 mm (without antenna) |
| Weight | Approx. 230 g (with battery and antenna) |
| UKE License | Required |
Kit Contents
| Hytera AP585 BT radio | × 1 |
|---|---|
| BL1507 battery (1500 mAh) | × 1 |
| CH10A07 desktop charger with PS1044 power supply | × 1 |
| BC48 belt clip | × 1 |
