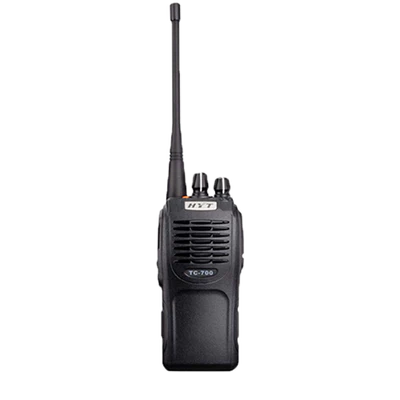

HYT TC-700 – VHF/UHF Analog Radio (16 Channels, 1000 mW Speaker, Scrambler)
HYT TC-700 is a proven VHF/UHF analog radio — 16 channels, 1000 mW speaker, Scrambler, VOX, 5-tone signaling, and HDC. 1700 mAh Li-Ion battery, IP54, MIL-STD-810C/D/E/F. Predecessor of the TC-700P model with an older type of side connector.
1000 mW
Speaker Power
16 channels
VHF / UHF
Scrambler
Analog Encryption
IP54
MIL-STD-810C/D/E/F
TC-700 vs TC-700P: The TC-700P is the successor to the TC-700, featuring a new multi-pin
side connector — more resistant to external factors and compatible
with newer HYT audio accessories. The radio parameters of both models are identical.
If you have existing accessories for the TC-700 (older connector), the TC-700 retains
full compatibility.
Features
- 1000 mW speaker — audibility even in very noisy environments
- Scrambler — analog call encryption
- VOX — hands-free communication
- CTCSS / CDCSS — sub-tones and digital codes
- 5-tone and HDC (digital) signaling
- Normal Scan and Vote Scan
- Voice Channel Announcement
- Mandown — position sensor (optional)
- Lone Worker — lone worker protection
- Cable configuration cloning
Technical Specifications
| VHF Band | 136–174 MHz, power 1–5 W |
|---|---|
| UHF Band | 400–470 MHz, power 1–4 W |
| Number of Channels | 16 |
| Channel Spacing | 12.5 / 25 kHz |
| Speaker | 1000 mW |
| Accessory Connector | Older type (different from TC-700P) |
| Battery | 1700 mAh Li-Ion (replaceable) |
| Operating Time | Approx. 14 h @ 5-5-90 |
| Protection Rating | IP54 |
| Durability | MIL-STD-810C/D/E/F |
| Operating Temperature | -30°C to +60°C |
| License | Required (UKE) |
Kit Contents
| HYT TC-700 Radio | × 1 |
|---|---|
| 1700 mAh Li-Ion Battery | × 1 |
| Antenna | × 1 |
| Desktop Charger with Power Supply | × 1 |
| Belt Clip | × 1 |
| Hand Strap | × 1 |
