- Type 11769Compatible tube
- 51°Field of view
- 215 gWeight
- 1× AAPower supply
The AGM PVS14-51 SKD housing with manual gain control (MG) is a set of assembled parts required to assemble a PVS14-51 night vision monocular, without the image intensifier tube. It is intended for service centers and companies certified in the assembly of electro-optical devices – AGM sells such kits as part of the OEM program. The housing works with the 11769-type tube and comes with a full standard equipment set, from the lens cover with a daylight filter to the soft case.
Type 11769
Compatible tube
51°
Field of view
215 g
Weight
1× AA
Power supply
Key Features
- Set of assembled parts for a PVS14-51 night vision monocular.
- The image intensifier tube is not included in the set – the housing is designed for the 11769-type tube.
- Manual gain control and automatic bright light cut-off.
- Built-in infrared illuminator.
- Compact, durable design with the option of head mounting for hands-free operation.
- Ergonomic, easy-to-use controls.
- Powered by one AA battery, with an operating time of up to 50 hours at 20 °C.
- LED indicators: low battery, IR illuminator on, bright light cut-off.
Compatibility
According to the manufacturer, the housing can be equipped with a generation 2 or 3 image intensifier tube with a green or white phosphor; the compatible tube type is specified as 11769, e.g., the AGM MX 11769 Gen 2+ P43-NL1 or P45-NW1. The set itself is not a functioning device – without installing the tube and performing alignment, it is not suitable for observation either by day or by night. The housing is sold as part of the AGM OEM program to manufacturers who are certified in the assembly of electro-optical devices.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | PVS14-51 SKD Kit with MG w/Standard Kit (11769) |
| Part number | #11P50XXXXXXX1 |
| Compatible tube | type 11769 (tube not included in the set) |
| Magnification | 1× |
| Optical system | 19 mm; F/1.26 |
| Field of view | 51° |
| Focus range | 0.25 m – infinity |
| Diopter correction | from −6 to +2 diopters |
| LED indicators | low battery, IR illuminator on, bright light cut-off |
| Infrared illuminator | yes |
| Manual gain control | yes |
| Bright light cut-off | yes |
| Power supply | 1 × AA alkaline battery (1.5 V) |
| Operating time | up to 50 h at 20 °C |
| Operating temperature | −51 °C – +49 °C |
| Storage temperature | −51 °C – +85 °C |
| Weight | 215 g |
| Dimensions | 102 × 63 × 69 mm |

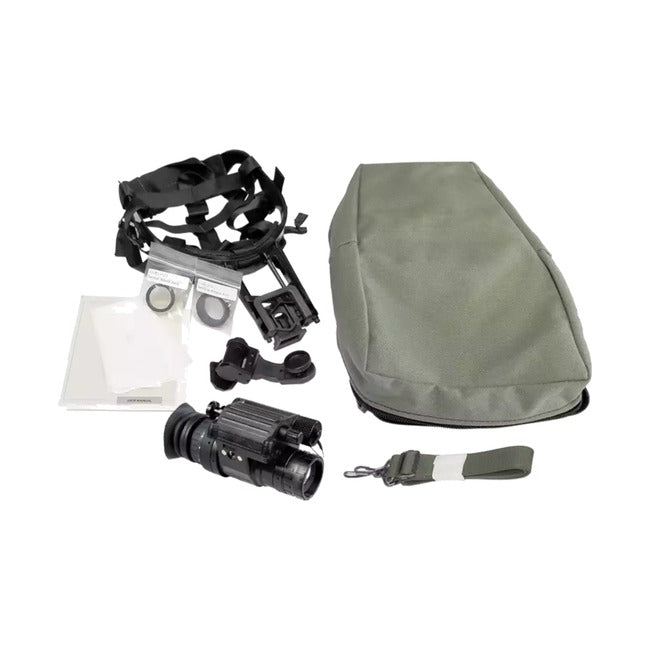

Set Contents
- Lens cover with daylight filter
- Eyecup
- Anti-fog cover
- Lens protective cover
- Head mount
- Head mount adapter
- Lens cloth
- User manual
- Shoulder strap
- Soft case
Frequently Asked Questions
Is the image intensifier tube included in the set?
No. This is an SKD housing without a tube. The manufacturer specifies the 11769-type tube as compatible and states that the housing can be equipped with a generation 2 or 3 tube with green or white phosphor.
Can I assemble the night vision monocular from this housing myself?
Installing the image intensifier tube in the housing requires experience and appropriate service equipment, so we recommend contacting us before purchase to select the appropriate tube and housing. The manufacturer states that without installing the tube and performing alignment, the set is not a functioning device.
What power supply does the housing use?
One 1.5 V AA alkaline battery. The manufacturer states an operating time of up to 50 hours at 20 °C.
