DJI FlyCart 30 – transport drone up to 40 kg (Cargo + Winch, O3, built-in parachute)
DJI FlyCart 30 is a heavy-lift enterprise transport drone — payload capacity up to 30 kg (dual battery) / 40 kg (single battery), range 28 km without payload and 16 km with full load. Two delivery modes: 70 L cargo box and winch (20 m cable, no landing required). O3 transmission up to 20 km (FCC), built-in emergency parachute, IP55.
30 kg
Max. payload (dual battery)
16 km
Range with full load
20 km
O3 Transmission (FCC)
Parachute
Built-in emergency system
Two transport modes

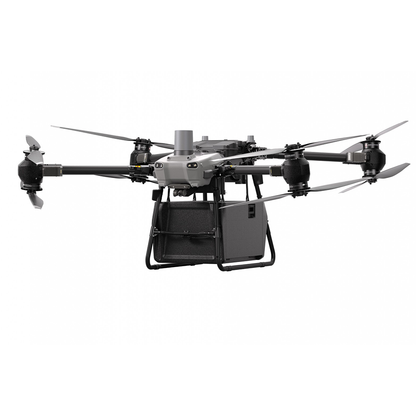

| Cargo Mode (box) | 70 L capacity (573×416×306 mm internal) Up to 30 kg (dual) / 40 kg (single battery) Automatic weight and center of gravity detection |
|---|---|

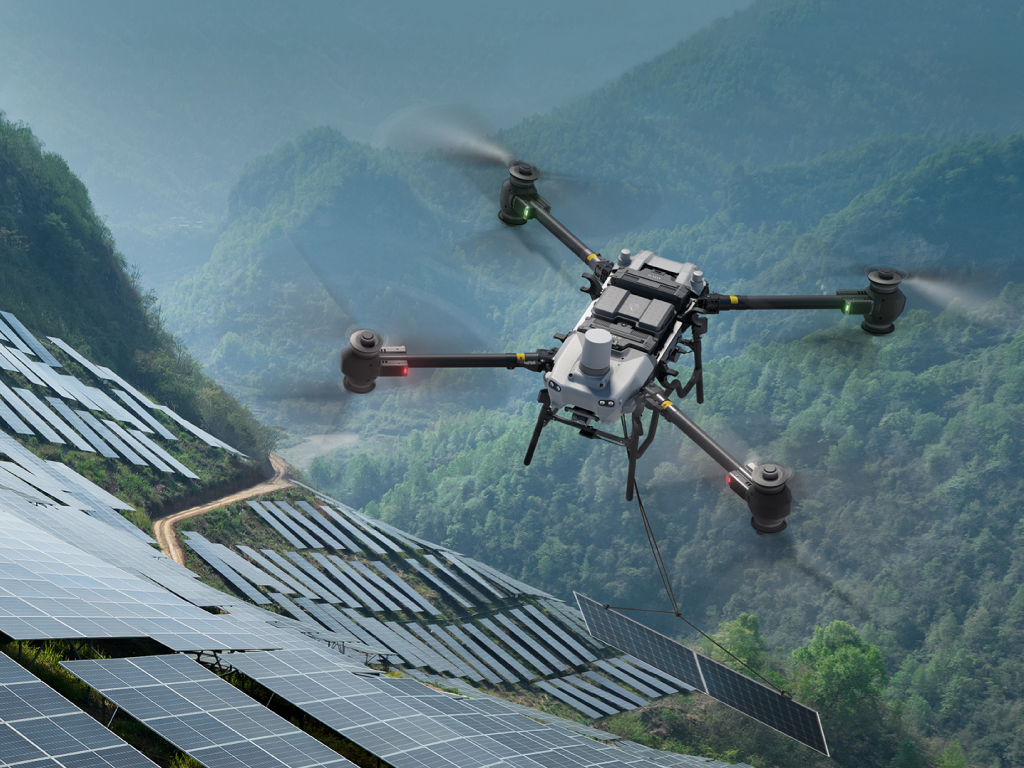

| Winch Mode | 20 m cable, 0.8 m/s speed Up to 30 kg (dual) / 40 kg (single battery) Automatic release upon landing, Swing Control Emergency thermal cable cutting option Accessory: DJI FlyCart 30 Winch System (sold separately) |
Range and flight time
| Without payload | Up to 28 km |
|---|---|
| With 30 kg payload | Up to 16 km, up to 18 minutes flight time |
| With 40 kg payload | Up to 9 minutes flight time |
| Max. speed (manual) | 20 m/s |
| Max. speed (auto route) | 15 m/s |
| Max. operating altitude | 6000 m (without payload) / 3000 m (with 30 kg) |
O3 Enterprise Transmission and connectivity
- O3 Enterprise — range 20 km (FCC) / 8 km (CE), 4 antennas
- 4G Enhanced Video Transmission (DJI Cellular Dongle)
- AES-256 data encryption
- 2.4 GHz and 5.8 GHz bands
- Dual Operator Mode — two operators simultaneously
- Controller: DJI RC Plus (6 h operation, hot-swap battery)
Safety
- Built-in parachute — activated from 60 m altitude, 6 m/s descent rate
- Dual active phased array radar (day and night, 1.5–50 m)
- Binocular vision system
- ADS-B In — detection of manned aircraft
- RTK ±10 cm (H and V) with optional RTK module
- Setting backup landing spots
- 6-second propeller start delay + two-stage landing confirmation
- AR Projection — precise landing with AR view
- Self-heating batteries — operation down to -20°C
Applications
- Transport of materials and tools in difficult-to-access terrain
- Power industry — equipment delivery for work on HV lines
- Rescue and emergency operations — medicine, equipment, food
- Mountain and marine (offshore) logistics
- Industrial construction — delivery of components to height
Power and charging
- Battery: DJI DB2000 Intelligent Battery 38,000 mAh
- Charging station: DJI C8000 Charging Station 7200 W
Full technical specification
| Propulsion configuration | 4 axes, 8 propellers |
|---|---|
| Weight (without batteries) | 42.5 kg |
| Weight (with 2× DB2000) | 65 kg |
| Max. take-off weight | 95 kg (with payload, sea level) |
| Folded dimensions | 1590×1900×947 mm |
| Unfolded dimensions | 2800×3085×947 mm |
| Payload (dual battery) | Up to 30 kg |
| Payload (single battery) | Up to 40 kg |
| Box capacity | 70 L (573×416×306 mm) |
| Max. speed (manual) | 20 m/s |
| Max. speed (auto) | 15 m/s |
| Range without payload | 28 km |
| Range with 30 kg payload | 16 km |
| Flight time with 30 kg | Up to 18 minutes |
| Max. operating altitude | 6000 m (without payload) / 3000 m (30 kg) |
| Operating temperature | -20°C to +45°C |
| Wind resistance | Up to 12 m/s |
| IP rating | IP55 |
| Transmission (FCC / CE) | 20 km / 8 km |
| RTK | ±10 cm H and V (with RTK module) |
| Parachute | Built-in, activated from 60 m, 6 m/s descent rate |
FAQ
Why is the dual battery payload 30 kg and the single battery payload 40 kg?
Two DB2000 batteries weigh a total of approx. 22.5 kg. In single battery mode, the drone is lighter by one battery, so it can carry more payload within the 95 kg MTOW limit. DJI recommends dual battery for power redundancy.
When does the built-in parachute activate?
Automatically in case of critical failure, from a minimum altitude of 60 m. Descent rate after activation: 6 m/s. The operator can also activate it manually from the controller.
What is the range in Europe (CE)?
Under CE standards, the O3 transmission range is 8 km (vs 20 km FCC). In practice, BVLOS operations in the EU require additional permits regardless of the technical range.

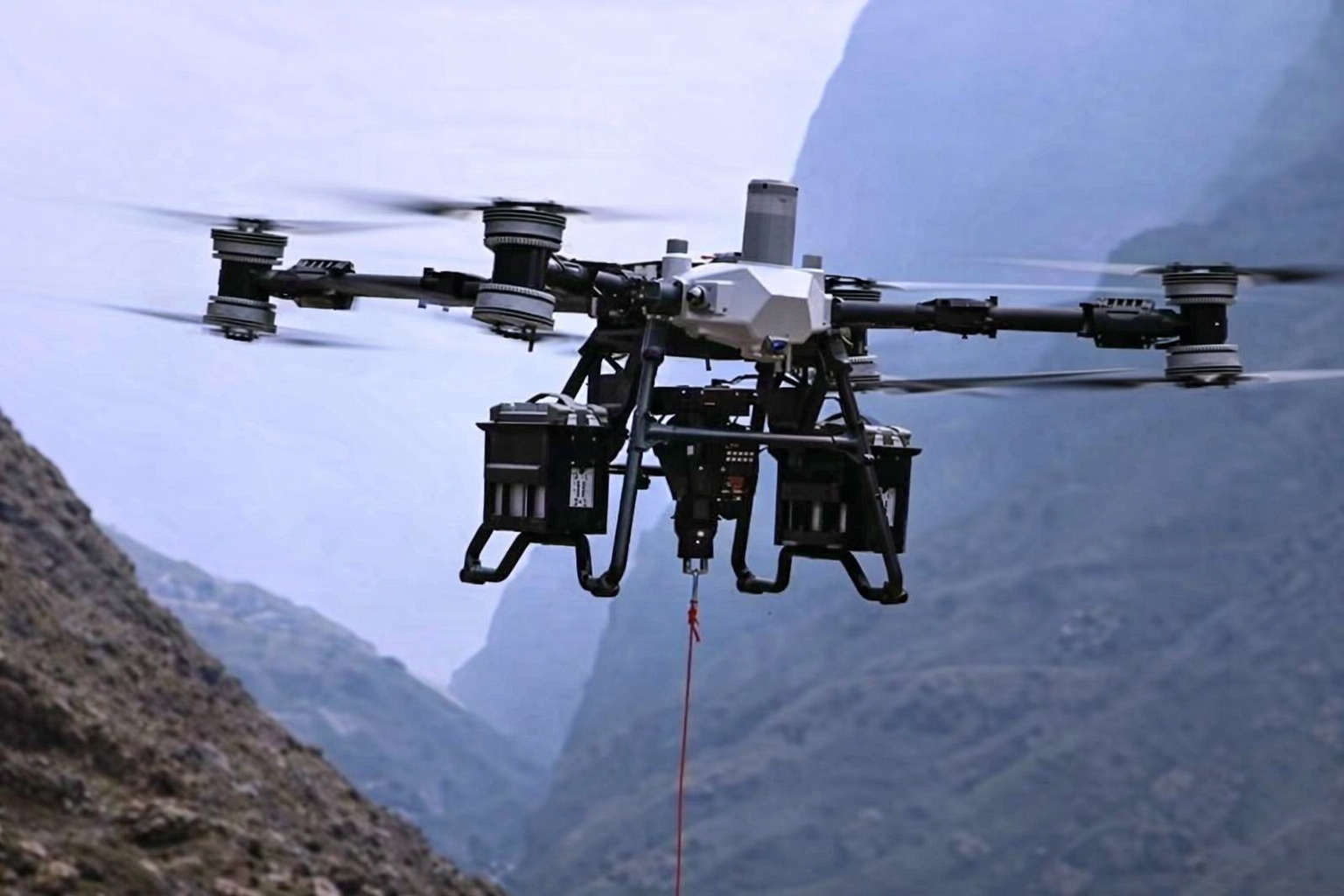

How does Winch mode work without landing?
The drone hovers over the target, the cable (20 m) lowers the payload to the ground — upon touch, the payload is automatically released. Swing Control stabilizes payload oscillations in flight. In an emergency, the cable can be thermally cut to release the drone.
