- 384×28812 µm, 50 Hz detector
- ≤20 mKNETD sensitivity
- 1250 mDetection range
- 2–16×Magnification

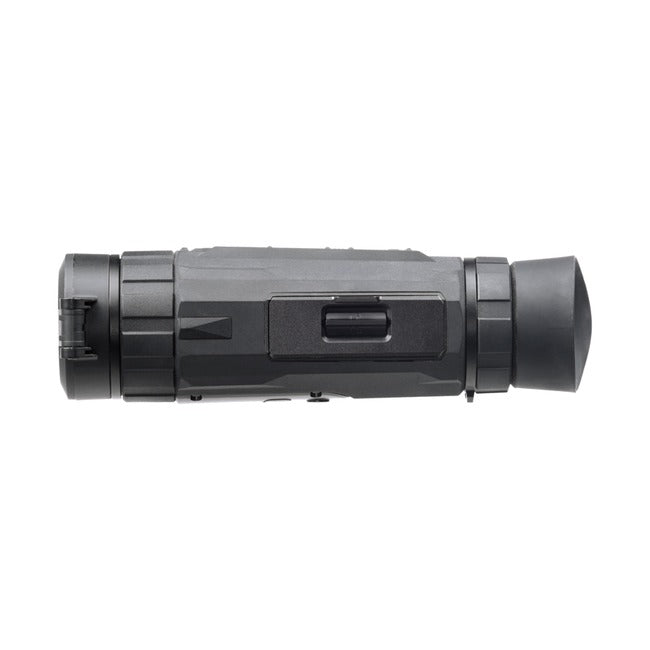

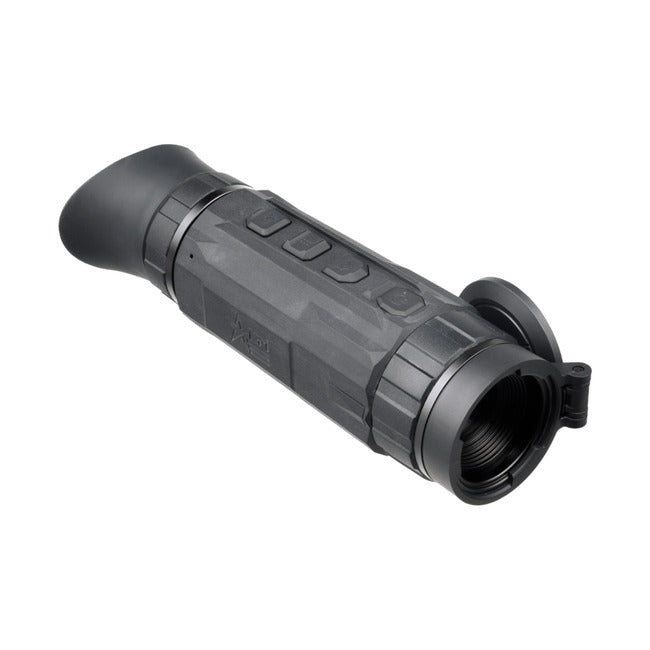

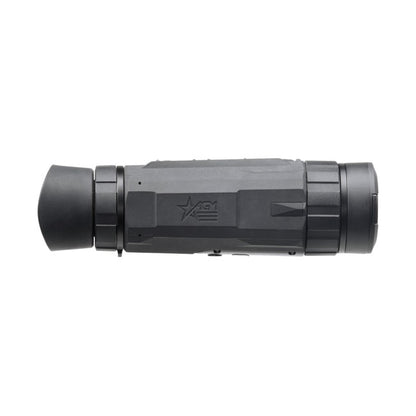

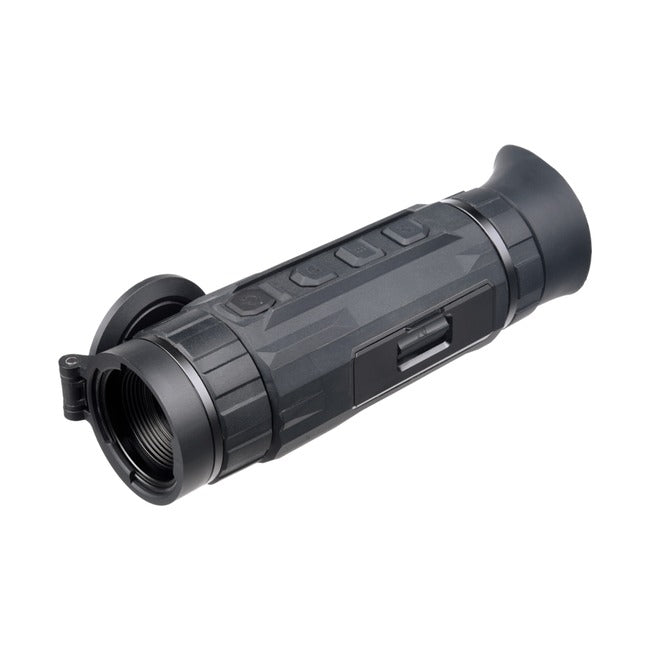

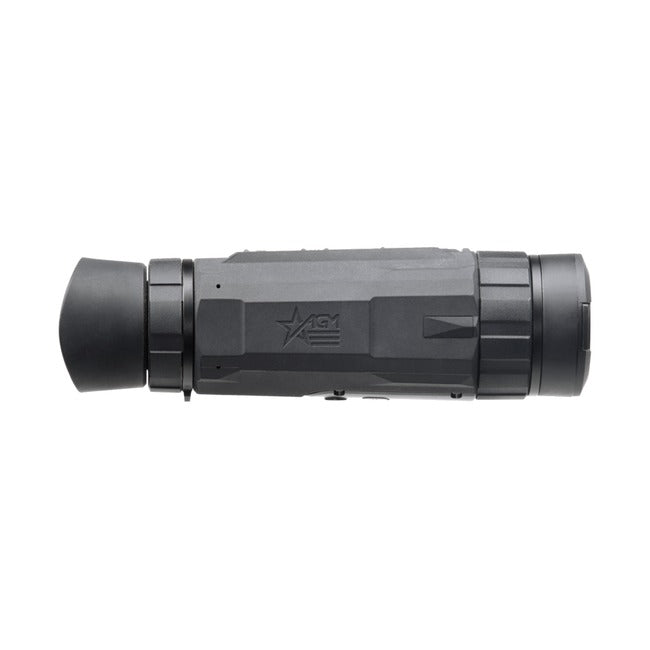

The AGM Sidewinder TM25-384 is a handheld thermal monocular from the Sidewinder series, equipped with a 384×288 detector with NETD sensitivity ≤20 mK and a 25 mm lens. It is designed for hunters, wildlife observers, property protection, and area patrols. The 25 mm lens with a wide field of view makes it easy to search the terrain at short and medium distances, and the detection range for a 6-foot-tall object is 1250 m. The device has a durable IP67 housing, a removable 18650 battery, and 64 GB of built-in memory.
384×288
12 µm, 50 Hz detector
≤20 mK
NETD sensitivity
1250 m
Detection range
2–16×
Magnification
Key Features
- Uncooled 384×288 VOx detector, 12 µm pixel, 50 Hz refresh rate, NETD sensitivity ≤20 mK
- 25 mm F1.0 lens, 10.5° × 7.9° field of view
- 2–16× magnification (2× base and 1×, 2×, 4×, 8× digital zoom), diopter adjustment from −5 to +3 diopters
- Image processing: detail enhancement, noise reduction, NLM filter, and Image Boost function
- 1024×768 OLED display and four color palettes, hottest point tracking
- 64 GB built-in memory – video recording with sound and photo storage
- Wi-Fi hotspot for live image transmission and file access via the mobile app
- Removable 18650 battery – up to 7 hours of operation, external 5 V power supply via USB-C
- IP67 waterproof and dustproof housing, operating in temperatures from −30 to +55 °C
Applications
The manufacturer lists hunting and nighttime game identification, wildlife observation and patrolling, property protection, tourism, camping, and marine applications as the main uses. The detector's high sensitivity helps reveal details of thermal signatures in rain, fog, and complete darkness, while the removable battery extends observation time in the field.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | Sidewinder TM25-384 |
| Part Number | 3142451004SI21 |
| Detector Type | Uncooled vanadium oxide (VOx) array, 12 µm pixel |
| Detector Resolution | 384×288 |
| Refresh Rate | 50 Hz |
| Spectral Range | 8–14 µm |
| Sensitivity (NETD) | ≤20 mK (25 °C, F1.0) |
| Detection Range (6-foot Object) | 1250 m |
| Lens | 25 mm, F1.0 |
| Field of View (Horiz. × Vert.) | 10.5° × 7.9° |
| Magnification | 2–16× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Diopter Adjustment | from −5 to +3 diopters |
| Display | OLED 1024×768 |
| Calibration (FFC) | Automatic, manual, external |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Image Boost | Yes |
| Hottest Point Tracking | Yes |
| Wi-Fi Hotspot | Yes |
| Standby Mode | Yes |
| Memory | 64 GB built-in |
| Video / Audio Recording | Yes / Yes |
| Photos | Yes |
| Battery | 1 × 18650 lithium-ion, removable |
| Operating Time | Up to 7 hours |
| Power Supply | 5 V DC / 2 A, 1.75 W |
| Connector | USB-C |
| Operating Temperature | from −30 to +55 °C |
| Ingress Protection | IP67 |
| Dimensions | 188 × 58 × 65 mm |
| Weight | 500 g |
| Warranty | 2 years (official limited AGM warranty in Europe) |
Package Contents
- AGM Sidewinder TM25-384 thermal monocular
- 18650 battery
- Battery charger
- Power supply (EU and US plugs included)
- USB cable
- Wrist strap
- Carrying case
- Protective bag
- Lens cloth
- User manual
Frequently Asked Questions
How long does it last on a single battery?
The manufacturer states up to 7 hours of operation on an 18650 battery. The battery is removable, and the monocular can also be powered by an external 5 V power source via the USB-C connector.
Does the monocular record video?
Yes. The device records video with sound and takes photos, saving them to the 64 GB built-in memory. The files can be viewed via Wi-Fi in the mobile app.
Does the model have a rangefinder?
No. The Sidewinder TM25-384 specifications do not include a laser rangefinder.
