- 940 nmWavelength
- up to 650 mIllumination range
- 5 WOsram LED power
- IP68Water resistance

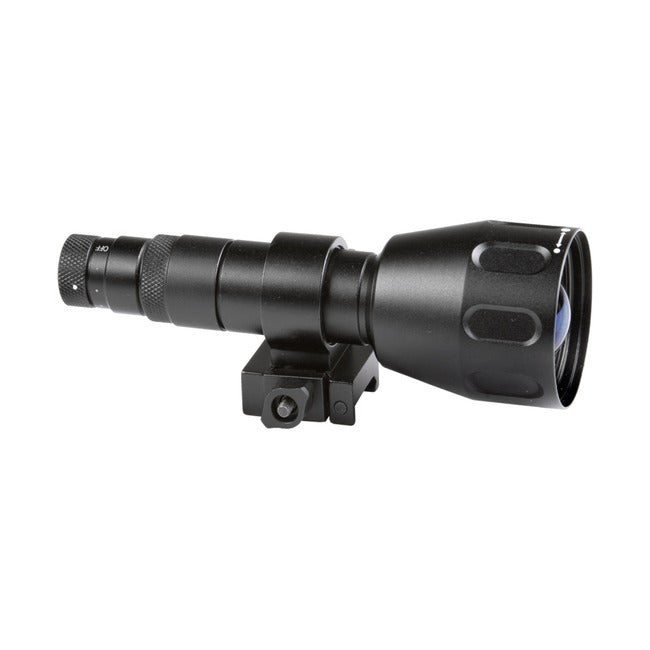

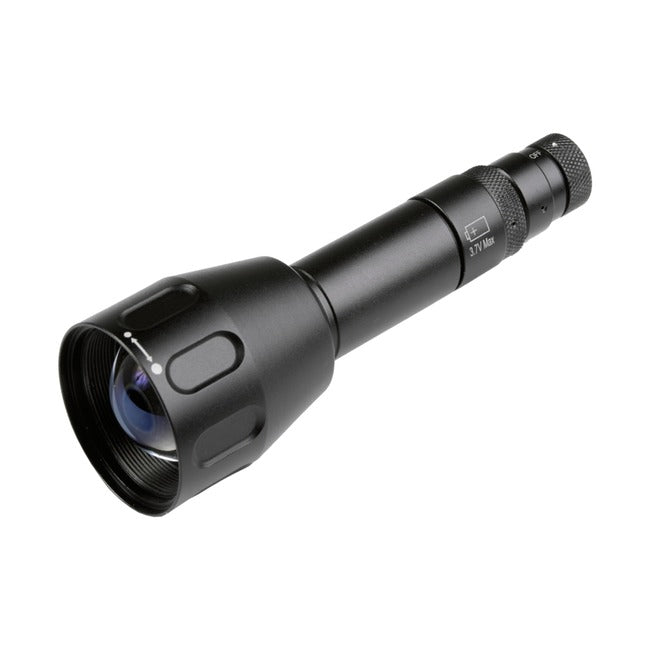

The AGM Sioux TH 940 is a long-range infrared flashlight designed for digital night vision devices and image intensifier tubes of generations 2 and 3. The 5 W Osram LED with a wavelength of 940 nm illuminates objects from distances of up to 650 m, and the brightness is continuously adjustable from 0–100% using a wired remote control. The IP68 sealed housing and 195 g weight make the illuminator well-suited for use both on a Weaver rail and handheld.
940 nm
Wavelength
up to 650 m
Illumination range
5 W
Osram LED power
IP68
Water resistance
Key Features
- Long-range infrared illuminator with a 5 W Osram LED
- 940 nm wavelength – light completely invisible to the human eye and eye-safe
- Continuous brightness adjustment from 0–100% via a wired remote control, as well as a full-power mode
- Wide beam angle adjustment from 2–31°
- Illumination range of up to 650 m
- Control via a button in the rear cap or a remote control
- IP68 waterproof housing, operating in temperatures from -30 to +50 °C

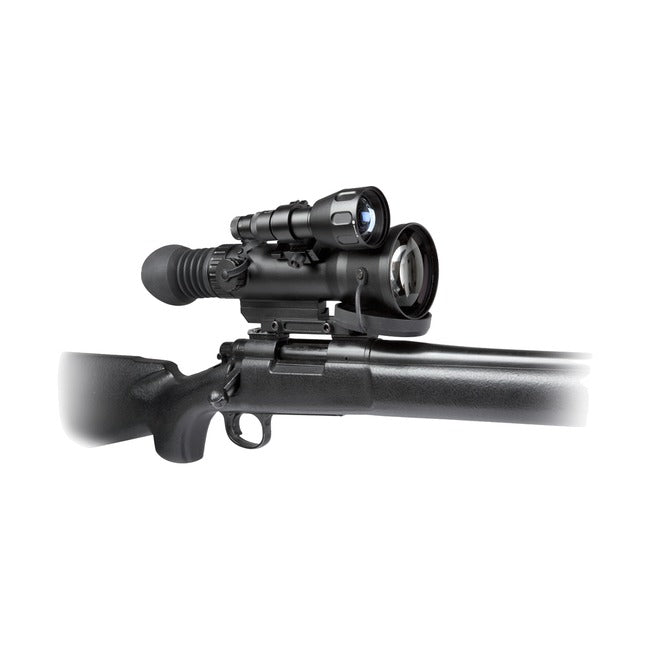

- Mounting on a Weaver rail or use as a handheld illuminator, weight 195 g
- 18650 battery and charger included as standard, 3-year manufacturer's warranty
Compatibility

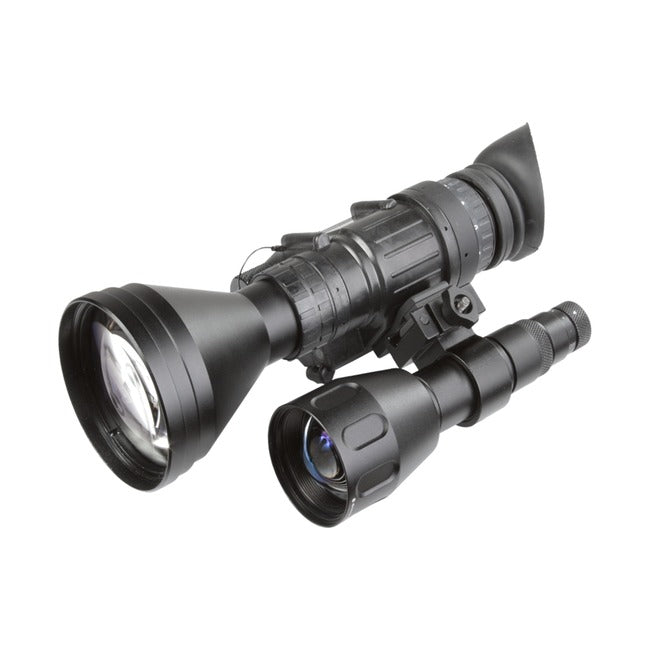

The manufacturer states that the Sioux TH 940 works with digital night vision devices and image intensifier tubes of generations 2 and 3. The illuminator illuminates the scene in infrared and expands the capabilities of such a device when ambient light is very low or completely absent. The remote control allows you to change the brightness without reaching for the illuminator itself, making it easier to operate when mounted on a Weaver rail. The Sioux Torch series includes 850 nm and 940 nm models – the former is the standard for most night vision applications, while the latter remains completely invisible.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | Sioux TH 940 (Sioux Torch) |
| Part number | 501SIOUX940IT1 |
| Compatible night vision devices | digital, Gen 2, Gen 3 |
| IR emitter type | LED (Osram) |
| LED power | 5 W |
| Wavelength (peak) | 940 nm |
| Operating modes | full power / continuous brightness adjustment from 0–100% via remote control |
| Illumination range | up to 650 m |
| Beam angle | 2–31° |
| Control | button in the rear cap, remote control |
| Power supply | 1 × 18650 battery (3.7 V) |
| Operating time (at 20 °C) | up to 1.5 h (full power) |
| Sealing | waterproof, IP68 |
| Operating temperature | from -30 to +50 °C |
| Weight | 195 g |
| Dimensions | 172 × 56 × 56 mm |
| Manufacturer's warranty | 3 years |
Package Contents
- Sioux TH 940 infrared illuminator
- Remote control
- Mounting bracket
- 18650 battery
- Charger
- User manual
Frequently Asked Questions
What is the remote control used for?
It allows you to continuously adjust the illuminator's brightness from 0–100% without reaching for the device itself. The illuminator can also be operated using the button in the rear cap.
How long does it run on a single battery?
The manufacturer states up to 1.5 h of operation at full power at a temperature of 20 °C. Power is provided by one 18650 battery (3.7 V), which is supplied in the set with a charger.
Is the illuminator waterproof?
Yes. The manufacturer states an IP68 sealing and an operating temperature range from -30 to +50 °C.
