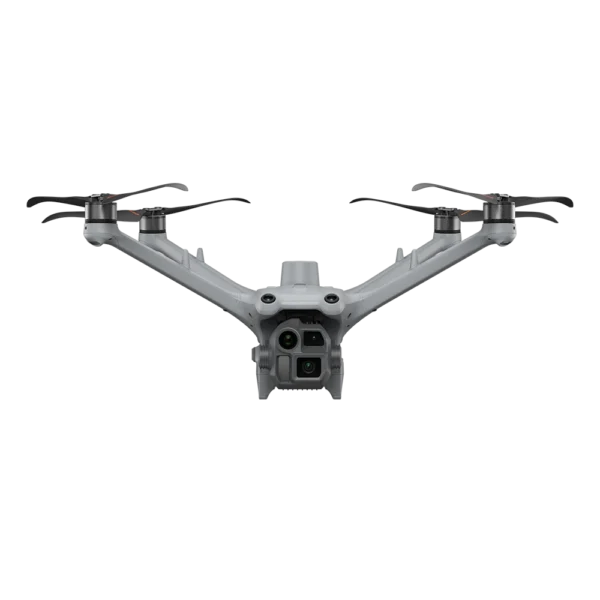

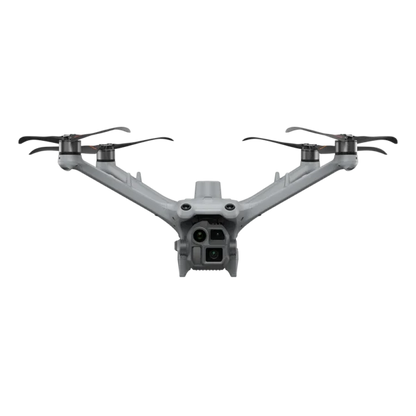

DJI Matrice 4D – Kluczowa specyfikacja
| Model | DJI Matrice 4D |
|---|---|
| Waga maksymalna | ~2090 g |
| Wymiary bez śmigieł | ~377.7 × 416.2 × 212.5 mm |
| Klasa ochrony | IP55 (odporność na kurz i wodę) |
| Temperatura pracy | -20 °C – 50 °C |
| Maksymalny czas lotu | do ~54 min |
| Maks. prędkość pozioma | ~21 m/s |
| Zasięg operacyjny | do ~10 km (bez dodatkowych systemów) |
| System kamer | |
| Kamera szerokokątna | 4/3" CMOS | 20 MP | f/2.8 – f/11 |
| Kamera średniego zasięgu | 1/1.3" CMOS | 48 MP |
| Kamera tele | 1/1.5" CMOS | 48 MP |
| Dodatkowe sensory | |
| Dalmierz laserowy | Tak — laserowy LRF |
| Przeznaczenie | |
| Typ misji | Inspekcje, mapowanie, precyzyjne pomiary |

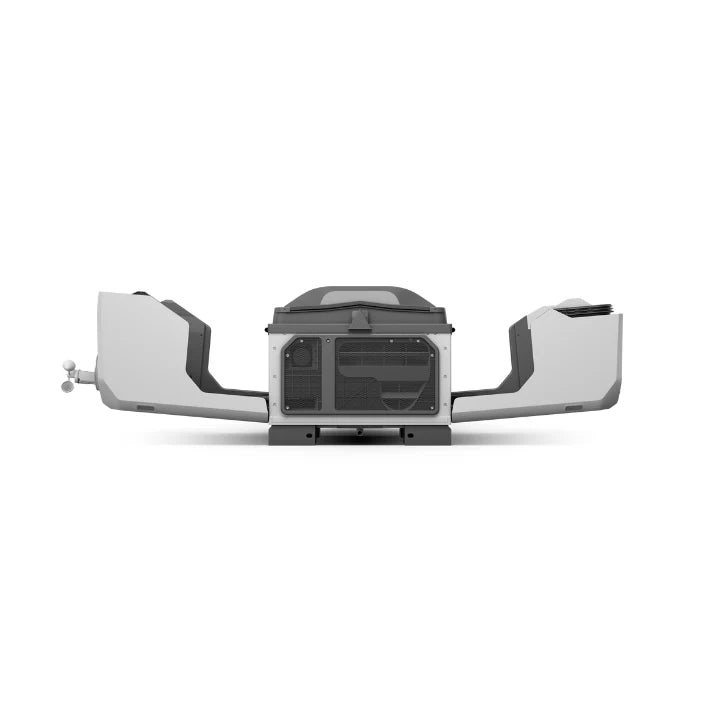

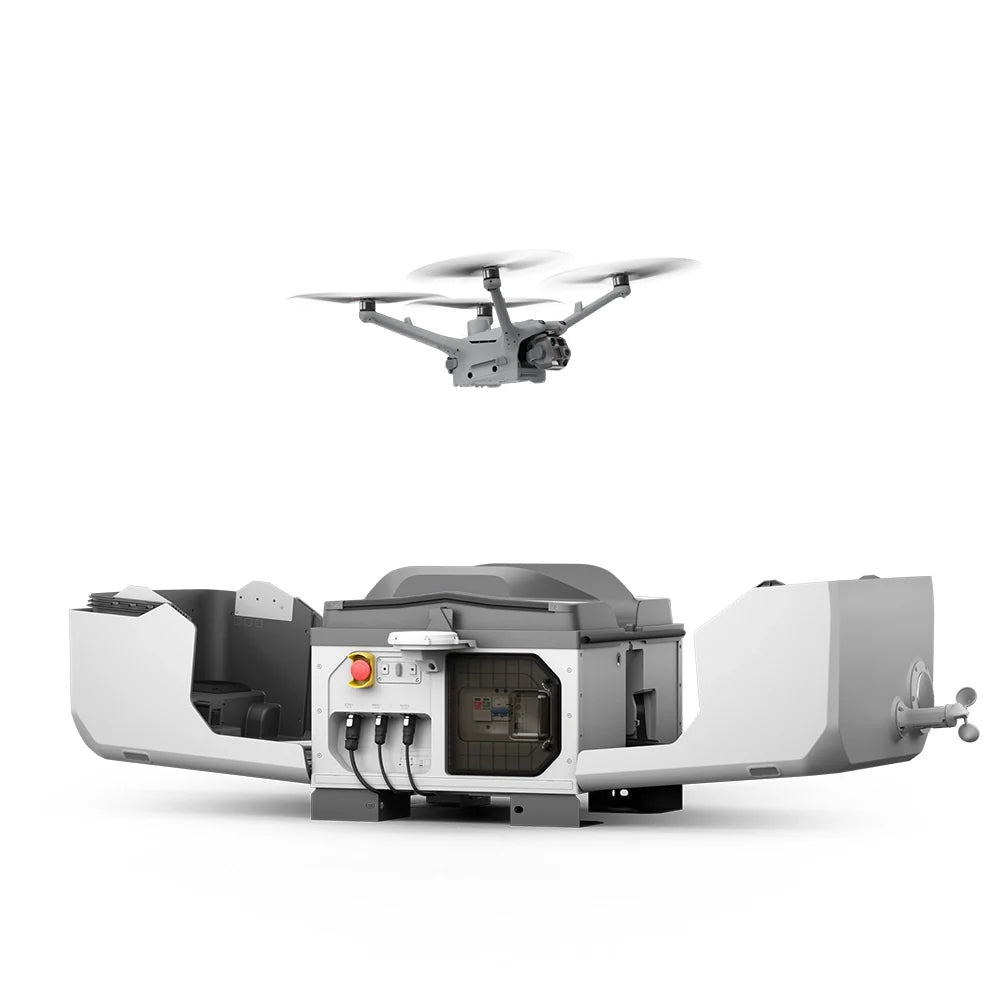

DJI Dock 3 – General Specifications
| Product name | DJI Dock 3 |
|---|---|
| Total weight | 55 kg (without airplane) |
| Size |
Dock cover open: 1760 × 745 × 485 mm (L × W × H) Dock cover closed: 640 × 745 × 770 mm (L × W × H) |
| Input voltage | 100–240 V (AC), 50/60 Hz |
| Input power | Max 800 W |
| Operating temperature | -30° to 50° C (-22° to 122° F) |
| Ingress protection rating | IP56 |
| Number of drones accommodated | 1 |
| Maximum permissible wind speed at landing | 12 m/s |
| Maximum operating altitude | 4500 m |
| RTK Base Station | |
| Satellite reception frequency |
GPS: L1 C/A, L2, L5 BeiDou: B1I, B2I, B3I, B2a, B2b, B1C GLONASS: F1, F2 Galileo: E1, E5a, E5b, E6 QZSS: L1, L2, L5 |
| Positioning accuracy |
Horizontal: 1 cm + 1 ppm (RMS) Vertical: 2 cm + 1 ppm (RMS) |
| DJI Dock 3 – Charging Performance | |
| Output voltage | 35 V DC |
| Charging time | 27 minutes (15% to 95% charge at 25°C) |
| DJI Dock 3 – Video Transmission | |
| Operating frequency |
2.400–2.4835 GHz 5.150–5.250 GHz (CE: 5.170–5.250 GHz) 5.725–5.850 GHz |
| Antenna | 9 built-in antennas, 2T4R, support smart switching |
| Transmitter power (EIRP) |
2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) 5.2 GHz (CE: 5.170–5.250 GHz): < 23 dBm (FCC/CE) 5.8 GHz: < 33 dBm (FCC), < 14 dBm (CE), < 30 dBm (SRRC) |
| DJI Dock 3 – Air Conditioning System | |
| Operating voltage | 48 V DC |
| Air conditioning type | Compressor-based air conditioning |
| DJI Dock 3 – Backup Battery | |
| Battery capacity | 12 Ah |
| Output voltage | 12 V |
| Battery type | Lead-acid battery |
| Lifespan | > 4 hours (under optimal conditions) |
| DJI Dock 3 – Network Access | |
| Ethernet access | 10/100/1000 Mbps Ethernet port |
| 4G access | Requires DJI Cellular Dongle 2 (sold separately) |
| DJI Dock 3 – Sensors | |
| Wind speed sensor | Included |
| Rain sensor | Included |
| Ambient temperature sensor | Included |
| Water immersion sensor | Included |
| Cabin temperature sensor | Included |
| Cabin humidity sensor | Included |
| DJI Dock 3 – External Security Camera | |
| Resolution | 1920 × 1080 |
| Field of view (FOV) | 151° |
| Auxiliary light | Auxiliary white light |
| DJI Dock 3 – Indoor Security Camera | |
| Resolution | 1920 × 1080 |
| Field of view (FOV) | 151° |
| Auxiliary light | Auxiliary white light |
| DJI Dock 3 – Lightning Protection | |
| AC power port | 20 kA (EN 61643-11 Type 2 / IEC 61643-1 Class II) |
| Ethernet port | 10 kA (EN/IEC 61643-21 Category C) |
| DJI Dock 3 – Supported Software | |
| Applications | DJI Enterprise (Android) |
| Cloud platform |
FlightHub 2 FlightHub 2 Local Version FlightHub Sync DJI Cloud API |
| DJI Dock 3 – Expansion Capacity | |
| Edge computing | Supports data communication with external switches |
