- 850 nmWavelength
- up to 650 mIllumination range
- 5 WOsram LED power
- IP68Water resistance

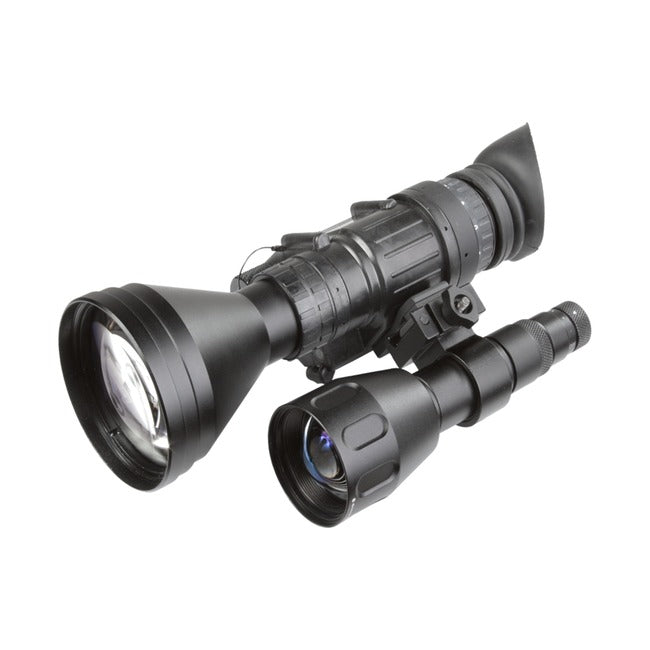

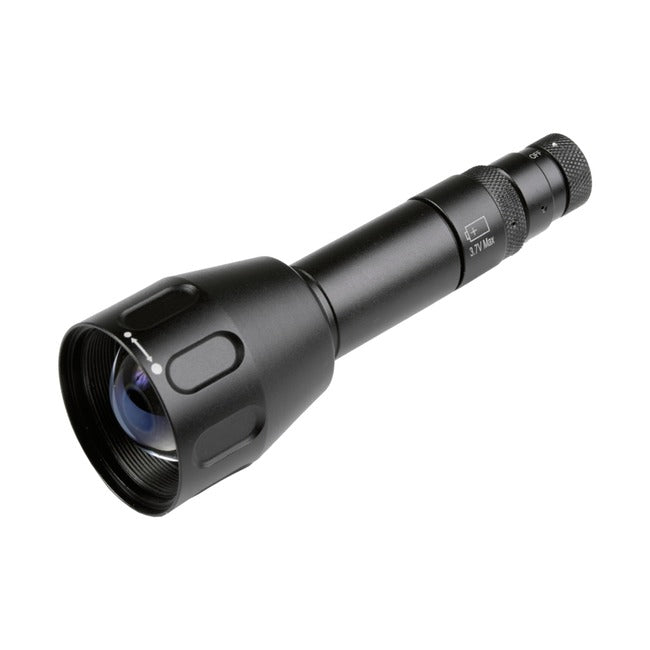

The AGM Sioux TH 850 is a long-range infrared flashlight designed for digital night vision devices and image intensifier tubes of generations 1, 2, and 3. The 5 W Osram LED with a wavelength of 850 nm illuminates objects from distances of up to 650 m, and the brightness is continuously adjustable from 0–100% using a wired remote control. The IP68 sealed housing and 195 g weight make the illuminator ideal for use both on a Weaver rail and handheld.
850 nm
Wavelength
up to 650 m
Illumination range
5 W
Osram LED power
IP68
Water resistance
Key Features
- Long-range infrared illuminator with a 5 W Osram LED
- Wavelength of 850 nm – light invisible to the naked eye, except for a faint red glow when looking directly at the source, eye-safe
- Continuous brightness adjustment from 0–100% using a wired remote control, as well as a full-power mode
- Wide beam angle adjustment from 2–31°
- Illumination range of up to 650 m
- Control via a button in the rear cap or a remote control
- IP68 waterproof housing, operating in temperatures from -30 to +50 °C

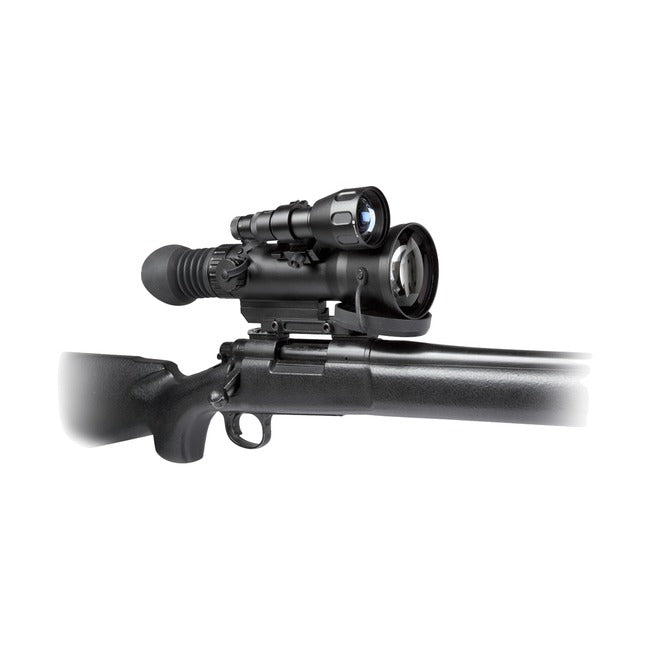

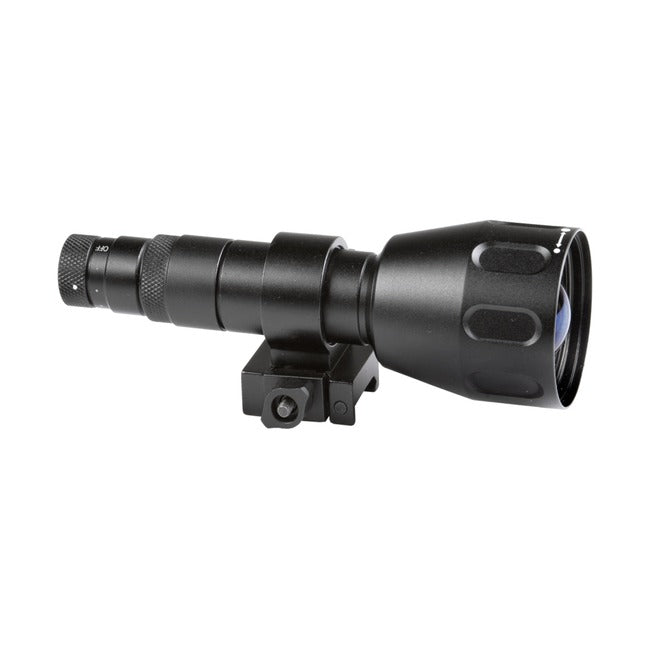

- Mounting on a Weaver rail or use as a handheld illuminator, weight 195 g
- 18650 battery and charger included as standard, 3-year manufacturer's warranty
Compatibility
The manufacturer states that the Sioux TH 850 is compatible with digital night vision devices and image intensifier tubes of generations 1, 2, and 3. The illuminator illuminates the scene in infrared and expands the capabilities of such a device when there is very little or no ambient light. The remote control allows you to change the brightness without reaching for the illuminator itself, making it easier to operate when mounted on a Weaver rail. The Sioux Torch series includes 850 nm and 940 nm models – the former is standard for most night vision applications, while the latter remains completely invisible.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | Sioux TH 850 (Sioux Torch) |
| Part Number | 501SIOUX850IT1 |
| Compatible Night Vision Devices | digital, Gen 1, Gen 2, Gen 3 |
| IR Emitter Type | LED (Osram) |
| LED Power | 5 W |
| Wavelength (Peak) | 850 nm |
| Operating Modes | full power / continuous brightness adjustment from 0–100% using a remote control |
| Illumination Range | up to 650 m |
| Beam Angle | 2–31° |
| Control | button in the rear cap, remote control |
| Power Supply | 1 × 18650 battery (3.7 V) |
| Operating Time (at 20 °C) | up to 1.5 h (full power) |
| Sealing | waterproof, IP68 |
| Operating Temperature | from -30 to +50 °C |
| Weight | 195 g |
| Dimensions | 172 × 56 × 56 mm |
| Manufacturer's Warranty | 3 years |
Package Contents
- Sioux TH 850 infrared illuminator
- Remote control
- Mounting bracket
- 18650 battery
- Charger
- User manual
Frequently Asked Questions
What is the remote control used for?
It allows you to continuously adjust the illuminator's brightness from 0–100% without reaching for the device itself. The illuminator can also be operated using the button in the rear cap.
How long does it run on a single battery?
The manufacturer states up to 1.5 h of operation at full power at a temperature of 20 °C. Power is provided by one 18650 battery (3.7 V), which is supplied in the set along with a charger.
Is the illuminator waterproof?
Yes. The manufacturer states an IP68 rating and an operating temperature range from -30 to +50 °C.
