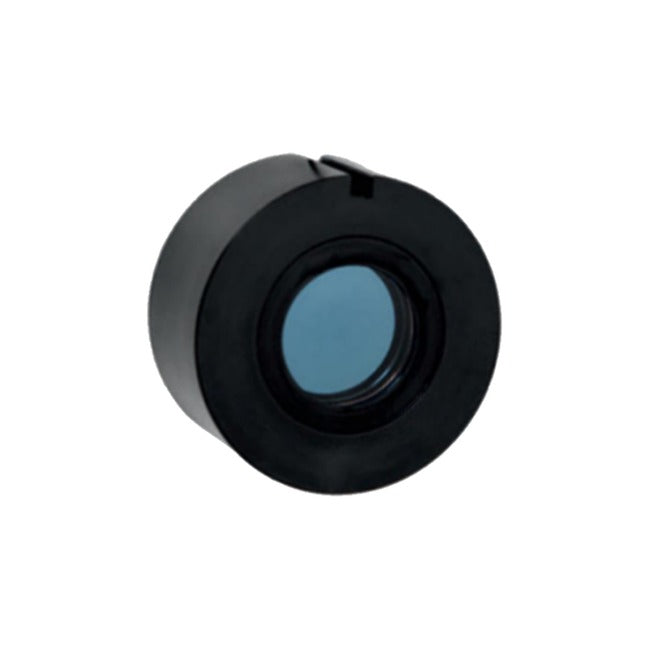

The AGM G2Gb NW1 is an 18 mm image intensifier tube with a white P45 phosphor, designed for AGM Wolf series night vision devices. The manufacturer lists it as a tube for Wolf-14 monoculars and Wolf-7 PRO goggles, making it suitable for servicing these devices or assembling them from an SKD housing. Its compact drop-in design with an integrated power supply and multialkali photocathode provides a resolution of 47–51 lp/mm and a black-and-white image.
Wolf-14 / Wolf-7 PRO
Fits
P45 white
Phosphor
47–51 lp/mm
Resolution
201316421
Part number
Key Features
- 18 mm image intensifier tube, drop-in design with integrated power supply
- White P45 phosphor on a fiber-optic window with a reversing mirror
- Resolution of 47–51 lp/mm, signal-to-noise ratio of 18–20
- S25 multialkali photocathode with sensitivity above 350 µA/lm and spectral sensitivity range of 500–800 nm
- Microchannel plate channel pitch above 12 µm, 1× magnification
- Shock resistance of 500 g, mean time between failures (MTBF) of 10,000 hours
- Weight of 90 g, operating voltage of 2.8±0.8 V
Compatibility
The manufacturer states that the tube fits the AGM Wolf-14 NW1, Wolf-14 NL1 HR, Wolf-7 PRO NL1 HR, and Wolf-7 PRO NW1 night vision devices. It can also be used to assemble a device from a Wolf series SKD housing. According to AGM, the Gen 2 tubes in this family are offered in NL1/NW1, NL2/NW2, and NL3/NW3 classes, which differ mainly in resolution and image cosmetics. The tube needs to be replaced if it is damaged or worn out.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | G2Gb Gen 2+ P45 NW1 |
| Part number | 201316421 |
| Tube type | Gen 2 |
| Phosphor | P45 (white) |
| Resolution | 47–51 lp/mm |
| Signal-to-noise ratio | 18–20 |
| Spectral sensitivity range | 500–800 nm |
| Photocathode sensitivity | above 350 µA/lm |
| Photocathode type | S25, multialkali |
| MCP channel pitch | above 12 µm |
| Photocathode diameter | 18 mm |
| Magnification | 1× |
| Voltage | 2.8±0.8 V |
| Shock resistance | 500 g |
| Mean time between failures (MTBF) | 10,000 h |
| Weight | 90 g |
| Compatibility | AGM Wolf-14 NW1, Wolf-14 NL1 HR, Wolf-7 PRO NL1 HR, Wolf-7 PRO NW1 |
Frequently Asked Questions
Does this tube fit the PVS-14?
The manufacturer does not list the PVS-14 among the devices for this tube—it specifies Wolf-14 and Wolf-7 PRO models. For the PVS-14, AGM provides 11769-type tubes, such as the MX-11769 NW1.
What kind of image does the P45 phosphor produce?
The P45 phosphor produces a white (grayscale) image, unlike the green image produced by tubes with P43 phosphor.
Can I install the tube myself?
Installing the tube requires experience, so it is best to entrust it to a service center or someone who has assembled night vision devices before. We recommend contacting us before purchase to select the right tube for your device.
