- 2560×1440Sensor resolution
- 1×Magnification
- 1000 mRangefinder range
- 400 mIR detection range

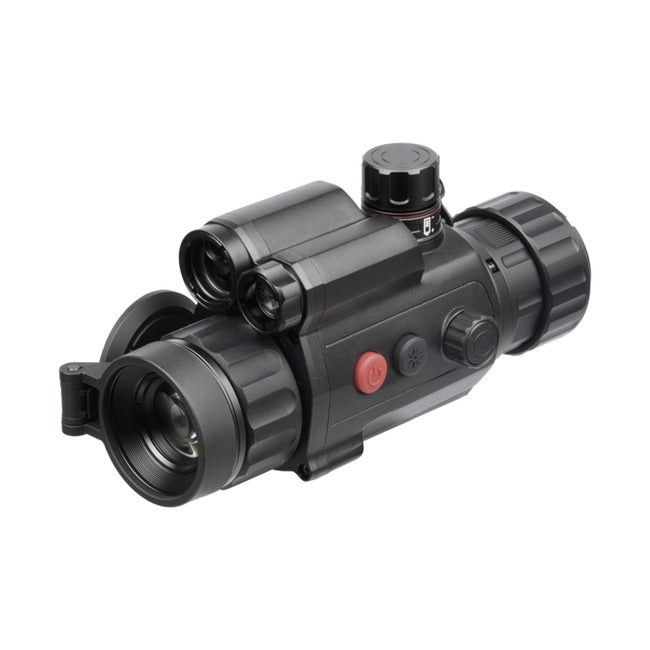

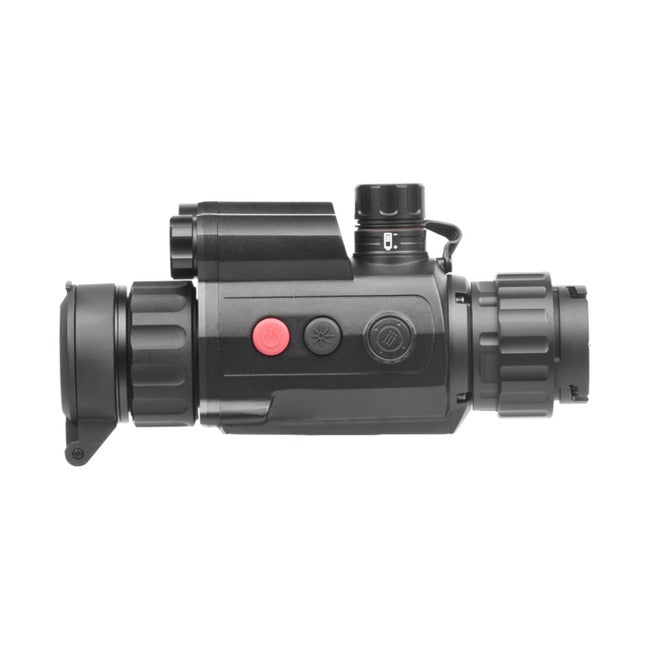

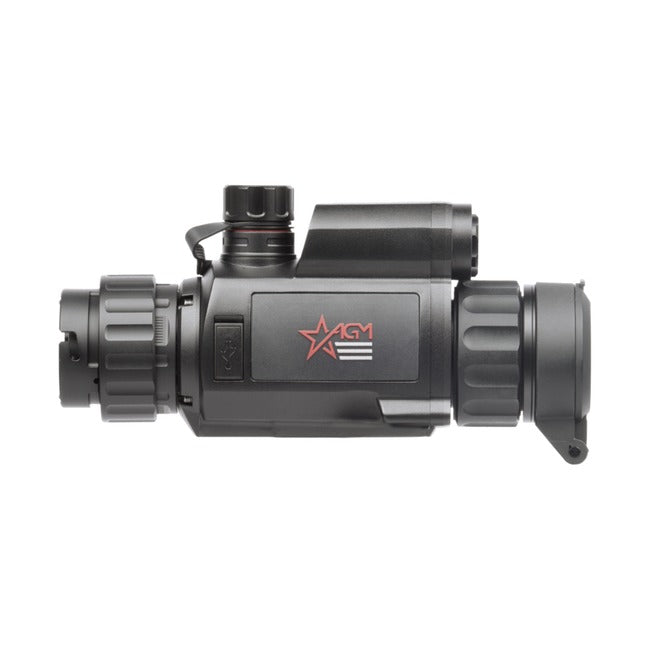

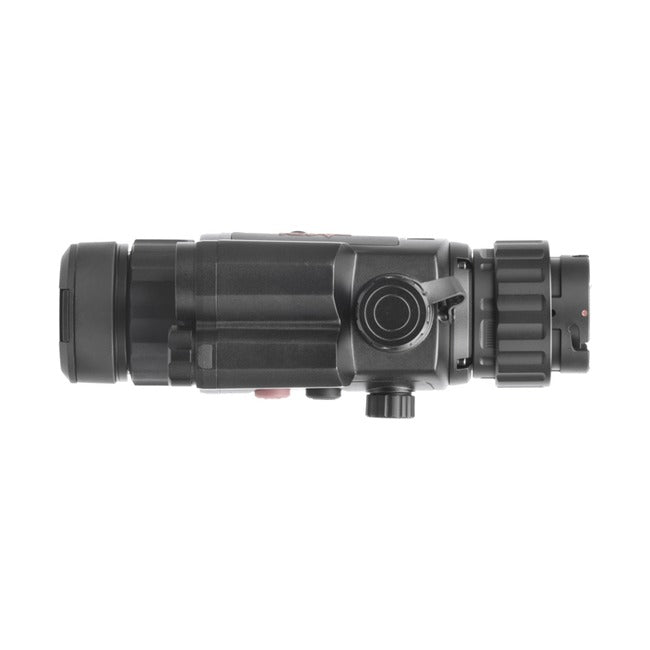

The AGM Neith LRF DC32-4MP is a digital day-night clip-on with a built-in laser rangefinder that turns your existing day scope into a dusk-to-dawn observation and shooting system. Its 2560×1440 sensor, 850 nm infrared illuminator, and detection range of up to 400 m allow you to hunt at night without changing the optics on your firearm. The clip-on can be mounted on a rail using the quick-release mount or in front of the scope using an adapter.
2560×1440
Sensor resolution
1×
Magnification
1000 m
Rangefinder range
400 m
IR detection range
Key Features
- 2560×1440 (4 MP) sensor with high sensitivity in low light and a 25 Hz refresh rate
- Built-in Class 1 laser rangefinder (905 nm) – range measurement up to 1000 m with ±4% accuracy
- 32 mm F1.2 lens, 1× magnification – the clip-on works with the magnification of your day scope
- Image modes: day (color), night, auto, and Defog
- Integrated 850 nm infrared illuminator, detection range up to 400 m
- Two mounting options: quick-release rail mount or adapter for mounting in front of a day scope (both included)
- 2560×1440 (MP4) video recording with sound, JPEG photos, automatic recording after shooting, 64 GB of memory
- Wi-Fi hotspot with live view in the mobile app
- Replaceable 18650 battery (up to 5.5 hours of operation), external power supply via USB-C, IP67 housing, 2-year manufacturer's warranty in Europe
Compatibility
The clip-on mounted in front of the day scope allows you to retain your firearm's existing zero, so you can return to your regular day optics when it is removed. The package includes a quick-release rail mount and an adapter for mounting in front of the scope. For mounting in front of the scope, an adapter ring matching the objective lens diameter is required – contact us before purchasing, and we will help you select the right solution for your scope.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | Neith LRF DC32-4MP |
| Part Number | 814511216414NC21 |
| Type | digital day-night clip-on with rangefinder |
| Sensor Resolution | 2560×1440 |
| Refresh Rate | 25 Hz |
| Magnification | 1× |
| Lens | 32 mm, F1.2 |
| Field of View | 9.9° × 7.5° |
| Minimum Focus Distance | 3 m |
| Detection Range | 400 m (with 850 nm IR illuminator) |
| Display | 0.49" OLED, 1920×1080, 50 fps |
| Exit Pupil | 22 mm |
| Interpupillary Distance | 10 mm |
| Image Modes | day, night, auto, Defog |
| Recording | 2560×1440 MP4 video with sound, 2560×1440 JPEG photos, recording after shooting |
| Memory | built-in 64 GB eMMC |
| Standby Mode | yes |
| Connectivity | Wi-Fi hotspot |
| Rangefinder | Class 1, 905 nm, up to 1000 m, ±4% accuracy |
| Power Supply | 1 18650 Li-ion battery, overvoltage protection |
| Operating Time | up to 5.5 hours (25 °C, Wi-Fi and IR turned off) |
| External Power Supply | 5 V DC / 2 A, USB-C |
| Operating Temperature | from −30 to +55 °C |
| Recoil Resistance | 750 g |
| Dimensions | 183 × 70 × 87 mm |
| Weight | 465 g (without battery) |
| Ingress Protection | IP67 |
| Warranty | 2 years (manufacturer's warranty in Europe) |
Package Contents
- AGM Neith LRF DC32-4MP clip-on
- 2 18650 batteries
- USB cable
- Battery charger
- Power supply
- Quick-release mount (QR)
- Adapter for mounting in front of a day scope
- User manual
- Lens cloth
- Carrying bag
Frequently Asked Questions
Do I need to re-zero the firearm after mounting the clip-on?
The clip-on mounted in front of the day scope is designed to retain the scope's existing zero.
How can the clip-on be mounted?
In two ways: on a rail using the quick-release mount included in the package, or in front of the day scope's objective lens using an adapter.
How long does it run on a single battery?
Up to 5.5 hours of continuous operation at 25 °C with Wi-Fi and the IR illuminator turned off. Two 18650 batteries are included in the package.
