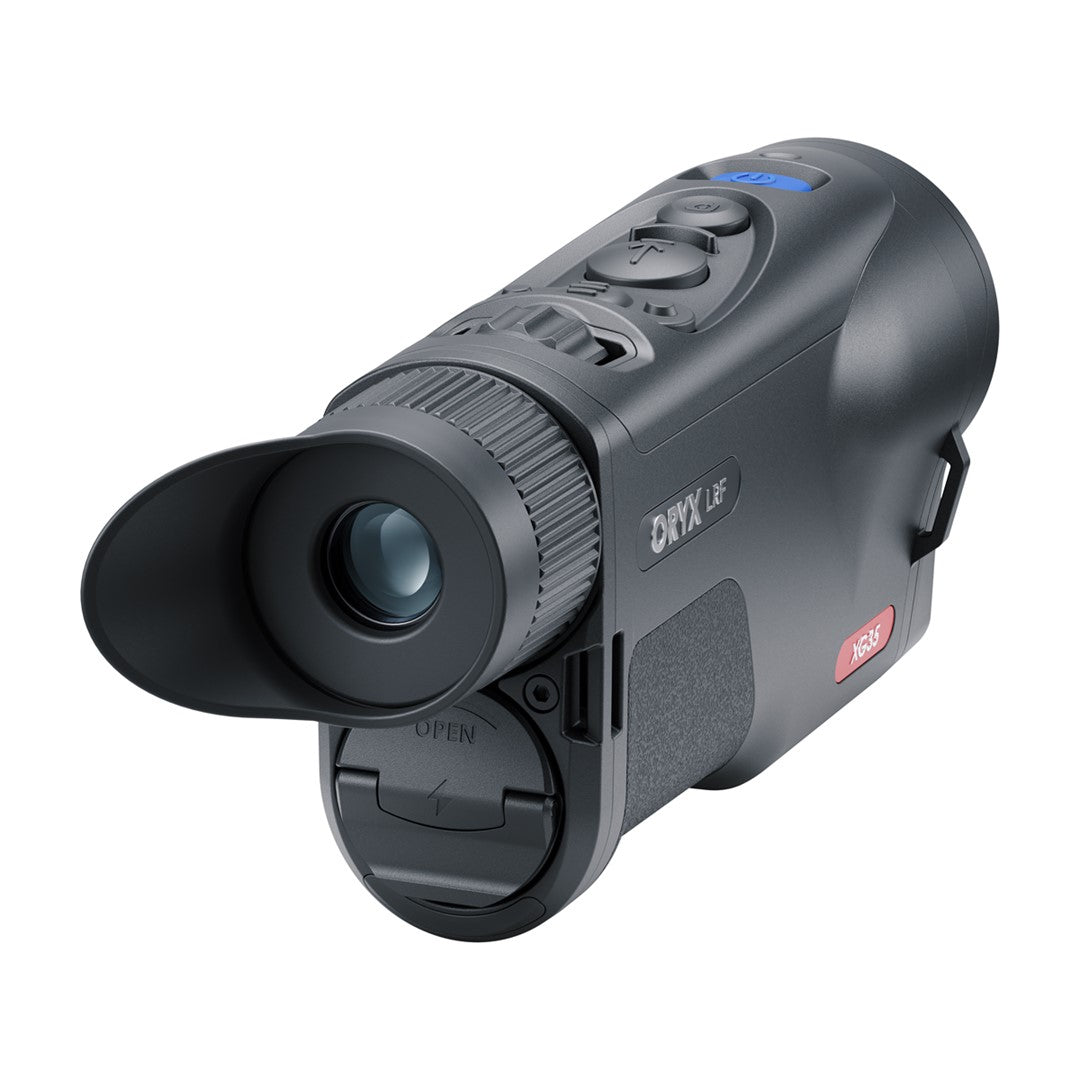

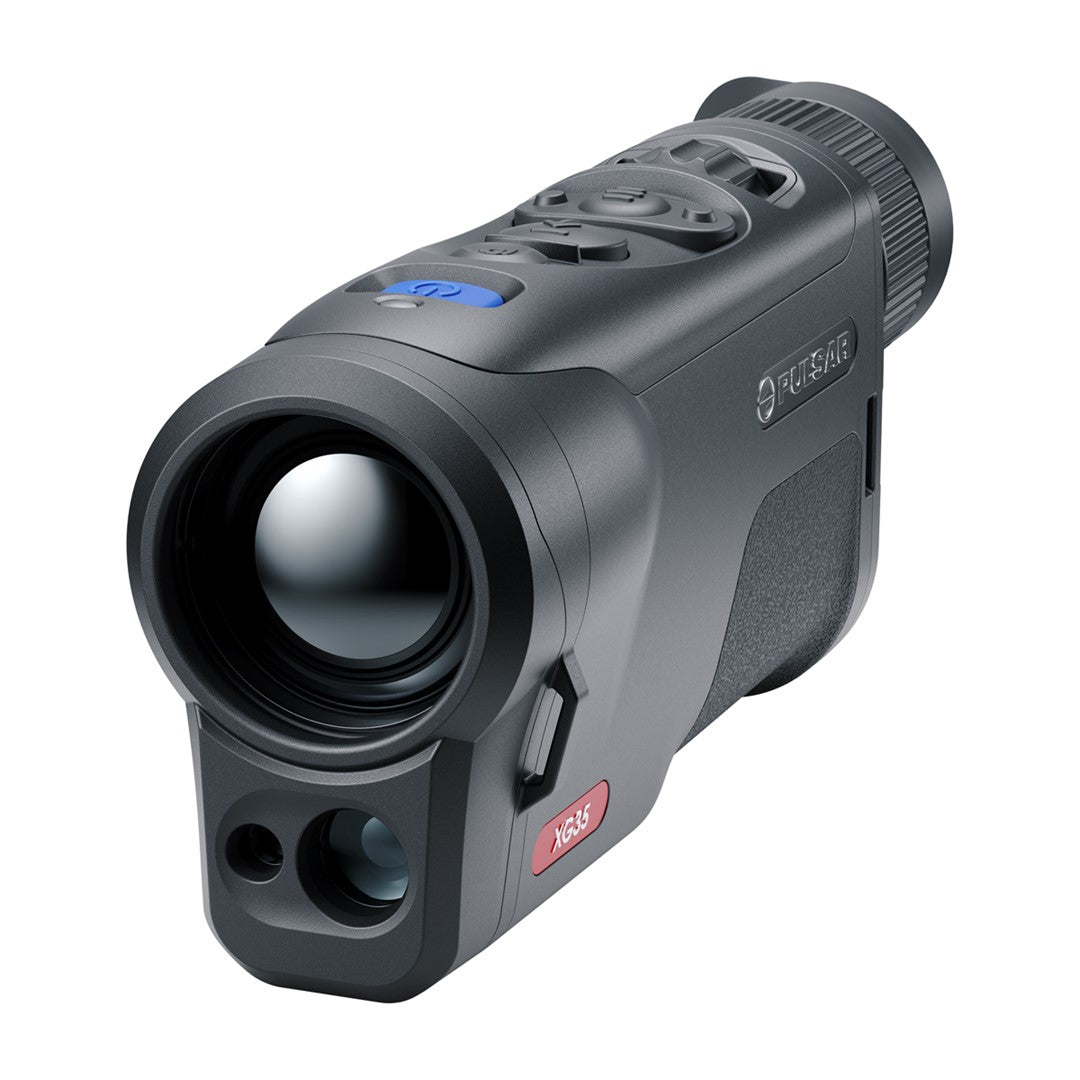

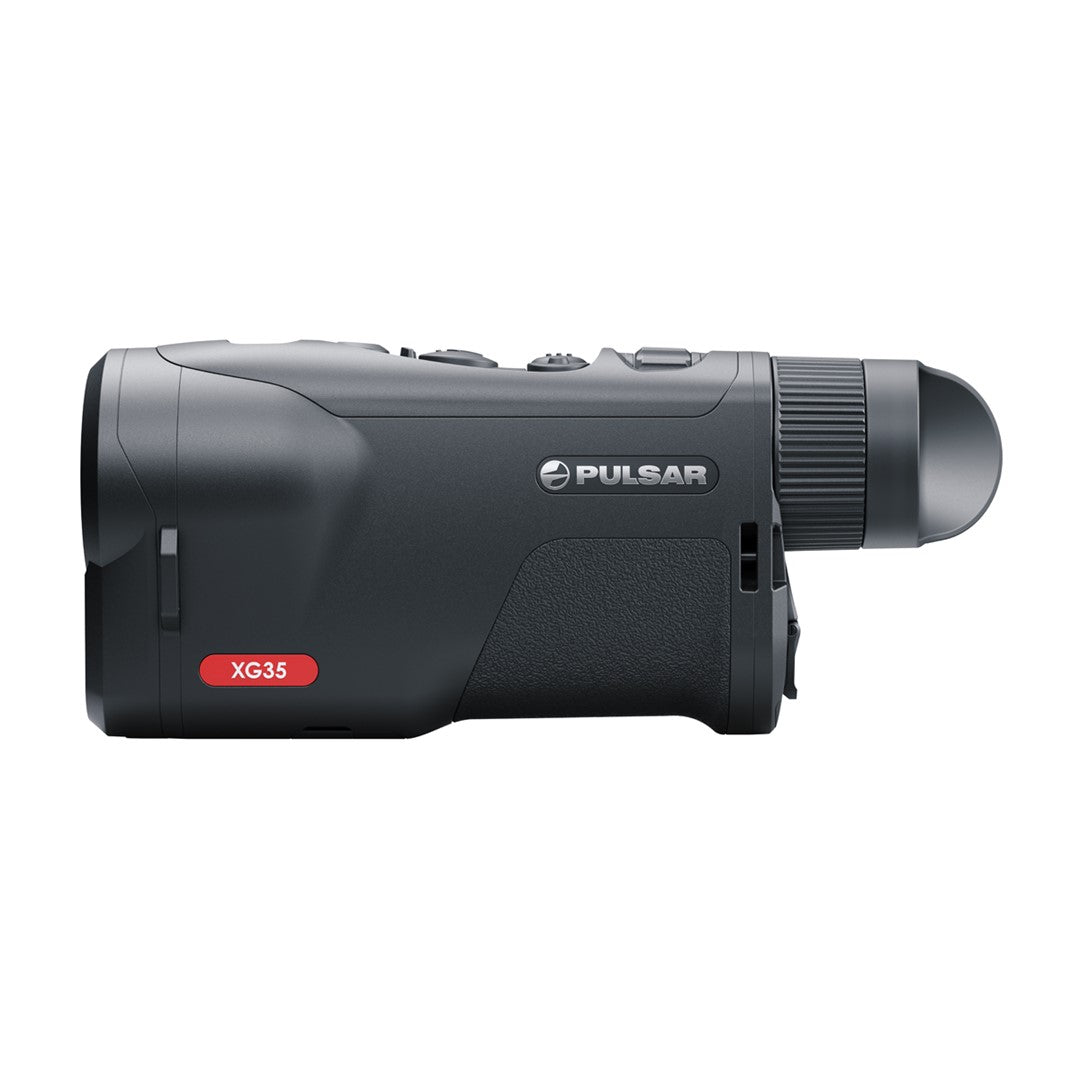

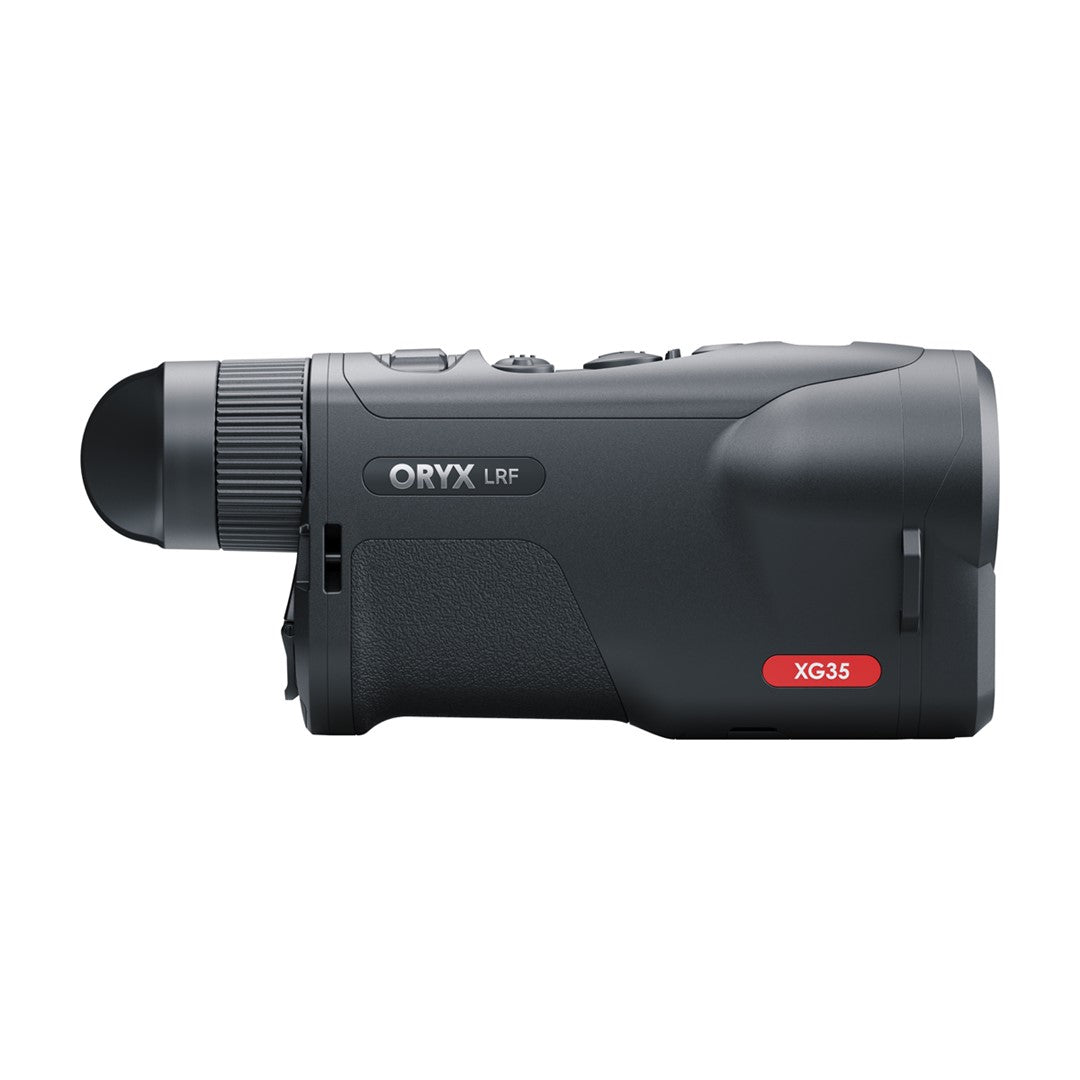

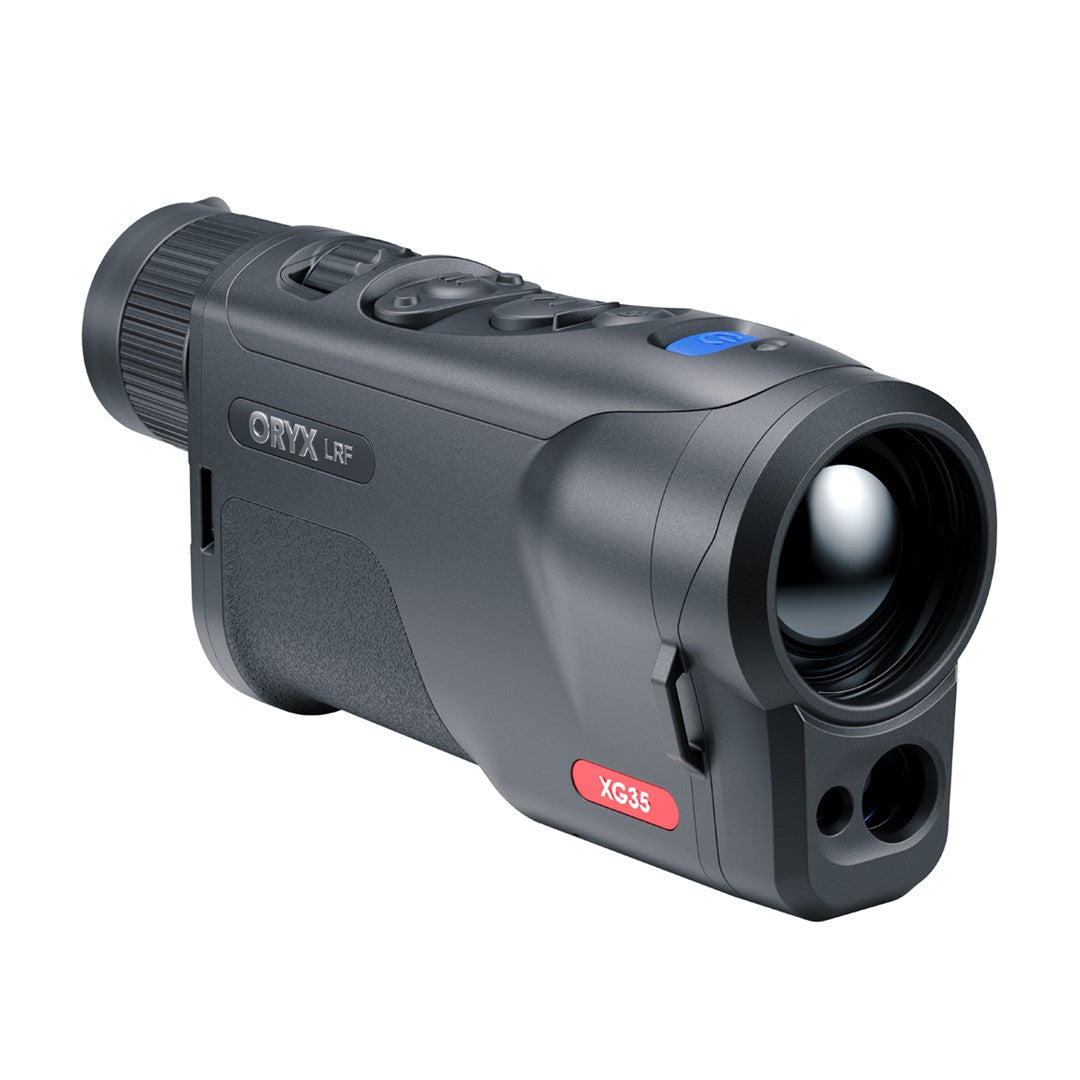

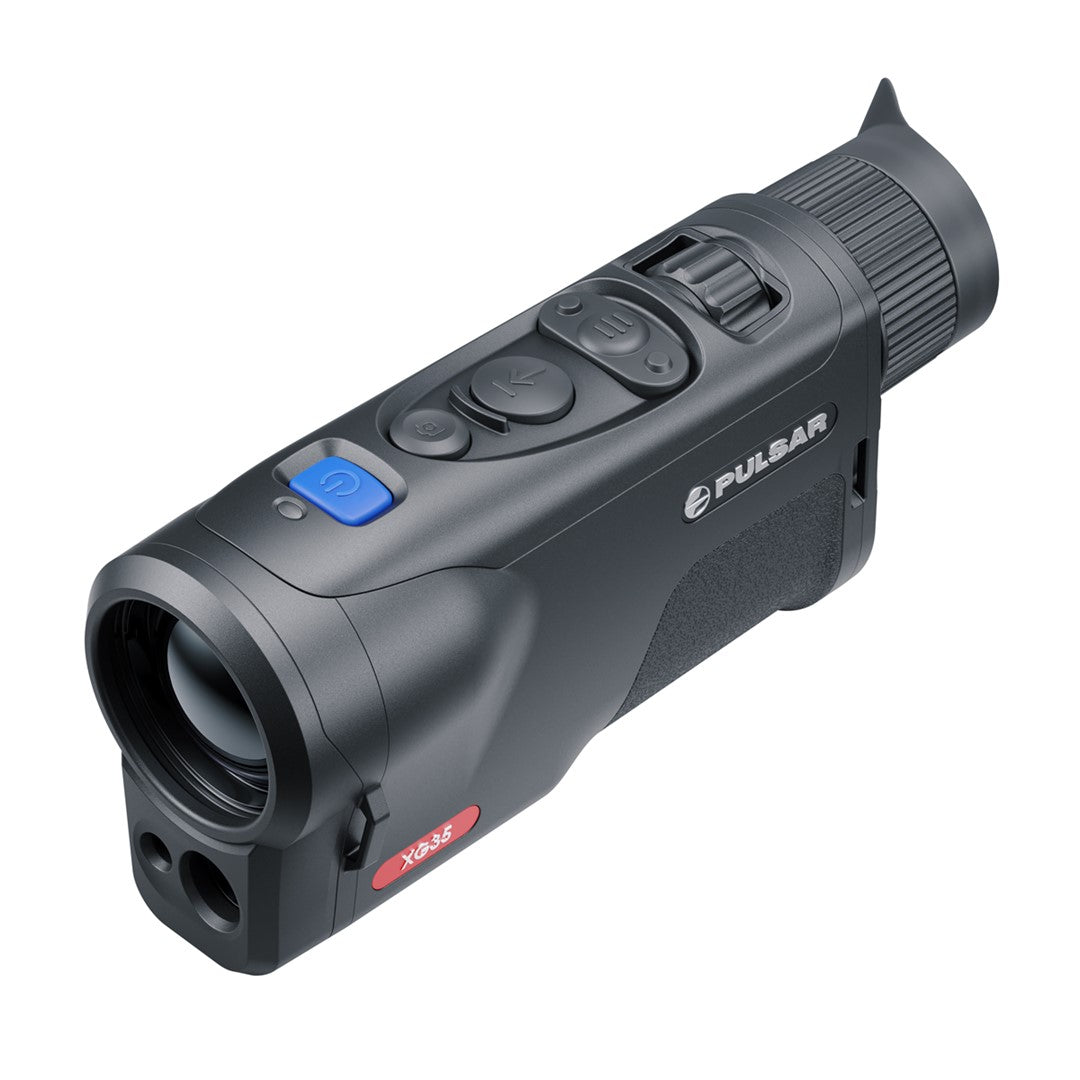

Thermal imager Pulsar Oryx LRF XG35
Thermal imager Pulsar Oryx LRF XG35
Dostawa: 2–4 dni robocze
The thermal imaging monocular has a sensor with a resolution of 640x480 pixels and a pixel size of 12 µm, which guarantees very good image quality, even at high magnifications.
Oryx is equipped with a precision laser rangefinder with a new design, which has a measuring range of up to 1500 meters (measurement accuracy +/- 1 m)
Thermal sensitivity sNETD <20 mK, allows for precise detail recognition even in adverse weather conditions.
The lens with an aperture of f/1.0 and focal length of 35mm guarantees good observation quality and a detection range for human-sized objects of up to 1800 meters.
The device has an optical magnification of 2.5x, and with 8x digital magnification, we can increase it to 20x.
Thanks to the innovative digital image stabilization function, observations can be made without support even at long distances and high magnifications, while moving through the terrain, or even while in a moving car.
The image is transmitted via an AMOLED HD display with a resolution of 1024x768 pixels.
Oryx has been designed for both right- and left-handed users. Thanks to the new focus knob, it can be fully operated with one hand.
The modern, highly ergonomic design of the device, made of the highest quality materials, the extremely durable magnesium casing of the Oryx model has an IP67 ingress protection rating, meaning the monocular is resistant to shocks, water, precipitation, dust, and other harsh conditions.
Oryx has haptic feedback. Thanks to this feature, the buttons vibrate slightly when pressed, ensuring intuitive control even with gloves on.
A very strong clip is included in the set, allowing you to attach the thermal imager to a belt, pocket or backpack, always keeping it at hand.
Oryx has an innovative dual power system. The device has a fixed, built-in battery and a replaceable B-PACK APS5 battery with a capacity of 4900mAh, which allow for up to 12 hours of continuous operation of the device.
Pulsar devices are designed and manufactured in Europe, from European components, offering the highest image and construction quality.
Key features of PULSAR Oryx LRF XG35:
- 640x480 pixel sensor
- Digital image stabilization
An innovative solution in the monocular is digital image stabilization, which allows observations to be made at long distances and high magnifications without support, while moving, or even while in a moving car.
- Easy one-handed operation
Intuitive operation combined with modern technology gives us an effective, yet comfortable to use thermal imager. Additionally, the special design, button layout, and focus knob placement allow for full one-handed control!
- Automatic brightness adjustment
- Improved sensor <20mK
The sensor with the highest available thermal sensitivity with an sNETD <20 mK coefficient ensures precise detail recognition even in adverse weather conditions such as rain and fog, even when the temperature contrast is low.
- Built-in laser rangefinder
Oryx has a built-in laser rangefinder, which will allow us to precisely determine the distance to the target up to 1500 meters with an accuracy of 1 meter.
- Software update capability
Pulsar allows for software updates in its products, giving users access to the latest improvements. This feature means the device is constantly changing and becoming better and better.
- Wide magnification range
Pulsar Oryx has an optical magnification of 2.5x, which can be digitally increased to 20x.
- Exceptional durability
The device has an IP67 protection rating, which means the device is completely dustproof and waterproof (submersion in water up to 1 meter for 30 minutes). Additionally, the specially designed magnesium housing provides exceptional mechanical resistance, protecting the device from drops and shocks.
- Built-in video/photo recorder with 64 GB memory
The thermal imager has a built-in video and photo recorder with 64 GB capacity. The USB-C port allows you to transfer recordings from the thermal imager to a computer, and the mobile application allows direct transfer to your phone.
- Built-in WiFi module, Polish-language Stream Vision 2 application
Every Pulsar device can communicate with external mobile devices on which, using the free, Polish-language StreamVision 2 application, you can: view the image recorded by the thermal imager, save photos and videos in the phone or tablet memory, control advanced thermal imager functions, save files in the free cloud and update the device, improving the thermal imager with increasingly perfect functions.
- Sensitivity gain level change
Three-stage sensitivity gain level change, improves detection and recognition quality in various observation conditions. In case of decreasing temperature contrast (fog, precipitation, high humidity), it is recommended to increase the gain level.
- Smoothing filter
A function that improves image quality, thanks to which we can reduce digital distortions while maintaining a high level of sensitivity.
- Display OFF - Sleep mode
The "Display OFF" function instantly turns the display on/off without turning off the device, which saves battery power and helps you remain undetected in the dark.
- Frost-resistant AMOLED HD display with 1024x768 pixels resolution
The high-resolution display (1024x768 pixels) combined with high resistance to extreme temperatures ensures that the device will not fail even in the most challenging conditions.
- Extreme Range
The use of high-quality germanium optics ensures a detection range of up to 1800m.
- Picture in Picture Mode
Allows you to magnify the central part of the image in a specially displayed window. The additional window occupies only 10% of the total display area.
- Color Palettes
There are various image color palettes available – the user has as many as 9 versions at their disposal. (White Hot, Black Hot, Red Hot, Green, Red Monochrome, Rainbow, Ultramarine, Violet, Sepia).
- Wide Temperature Range
The thermal imager can be used at any time of the year – the device operates in a temperature range from -25 to +40 degrees Celsius.
- High Refresh Rate
Even when observing moving objects, the image is smooth and observations are comfortable thanks to the refresh rate of 50 Hz.
