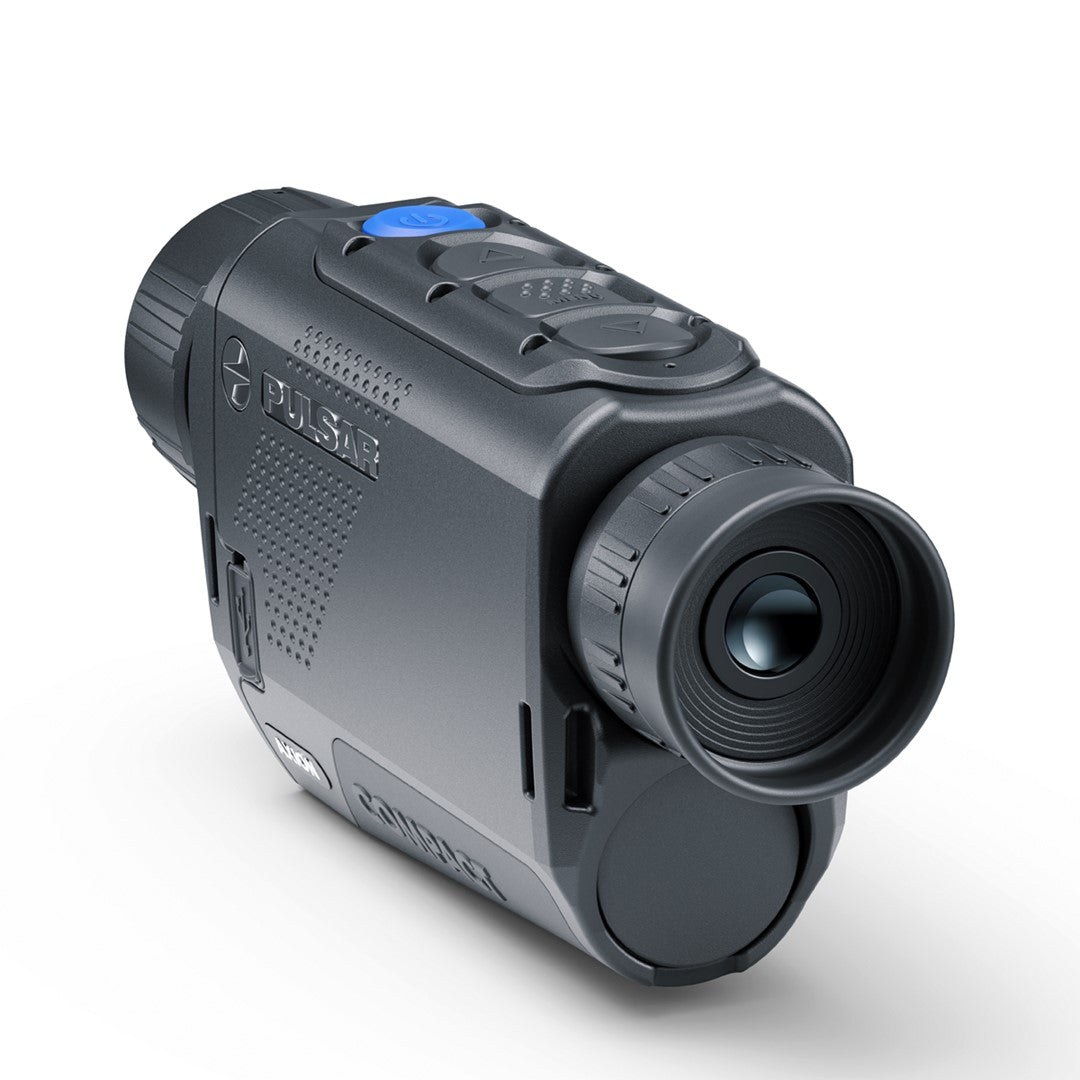

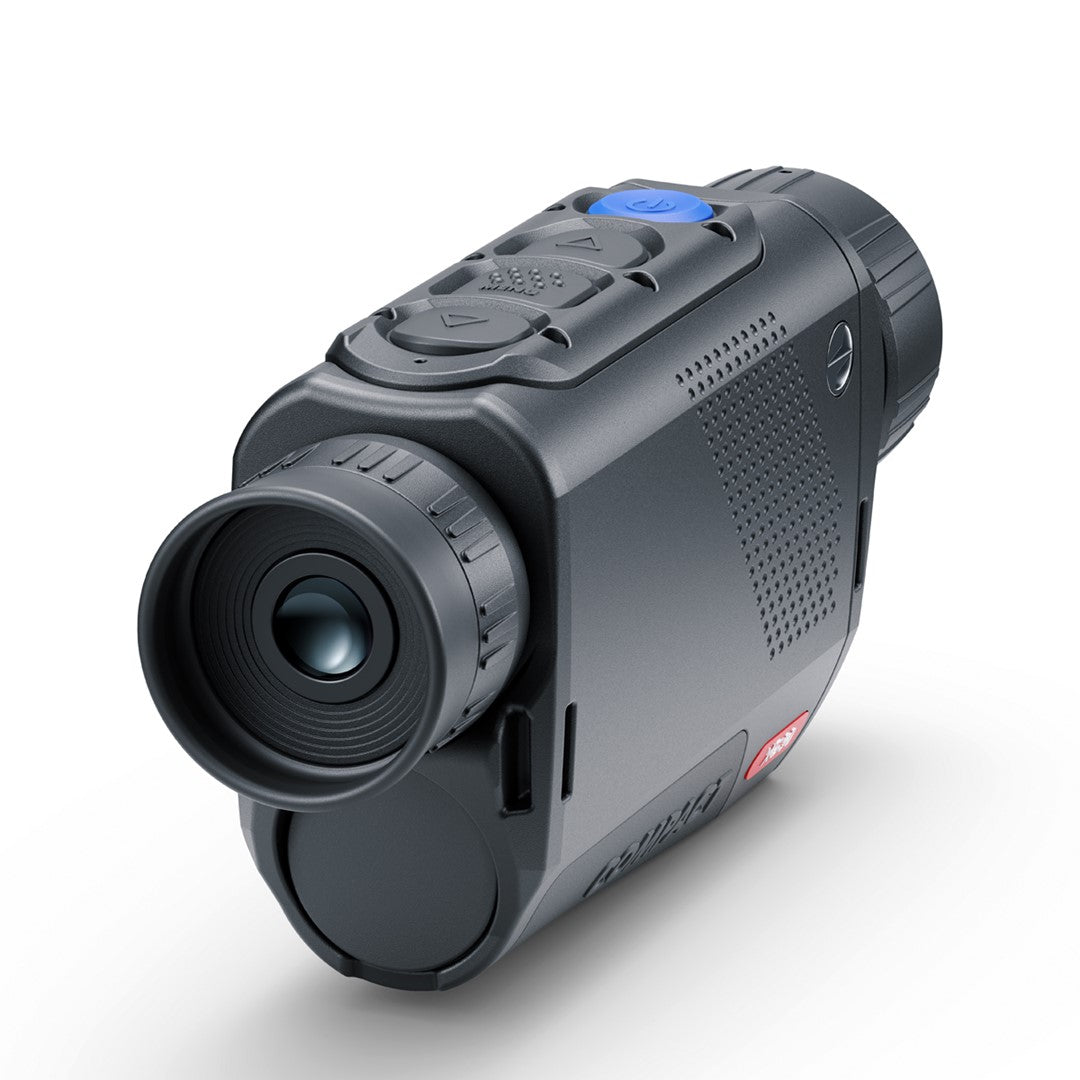

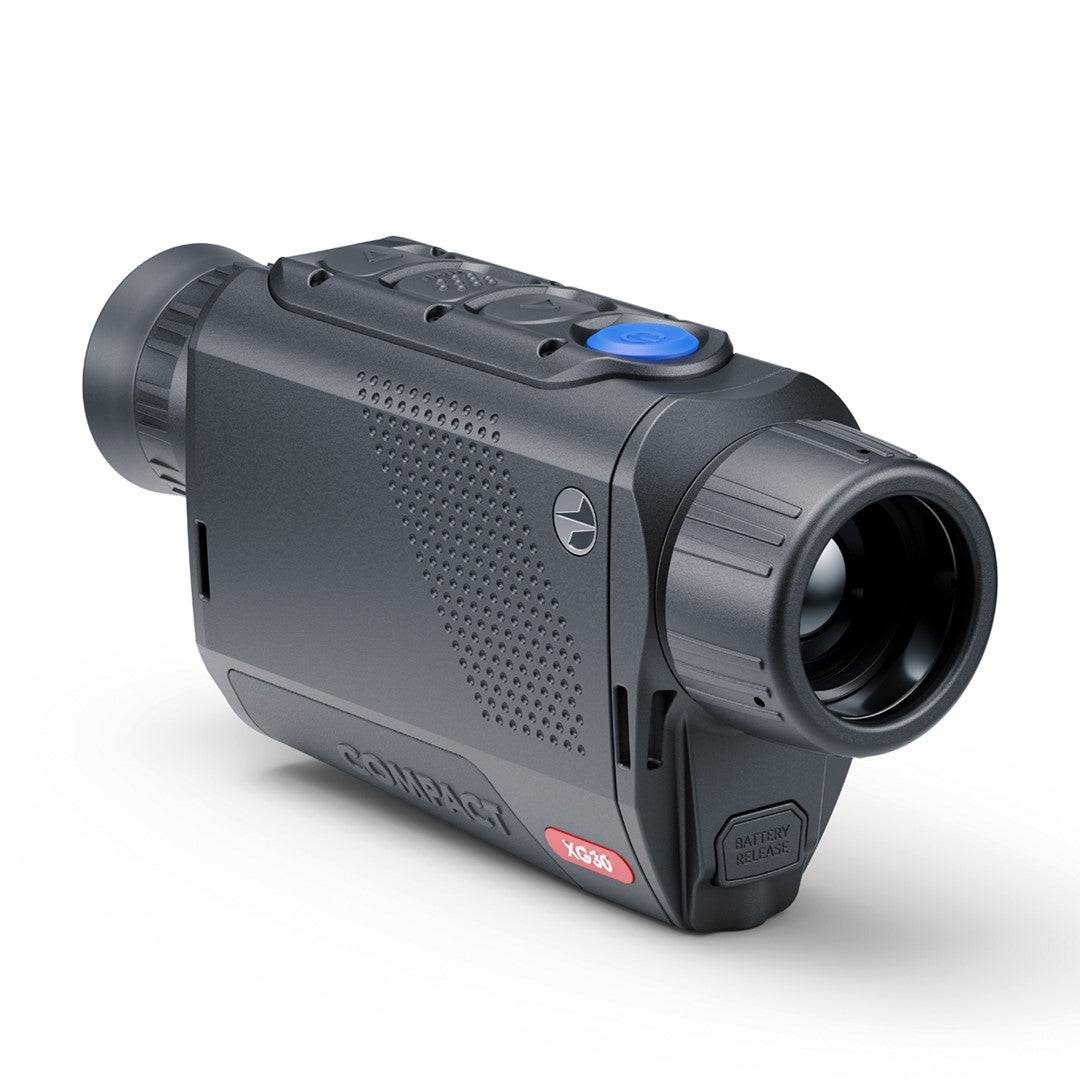

Thermal imager Pulsar Axion Compact XG30
Thermal imager Pulsar Axion Compact XG30
Dostawa: 2–4 dni robocze
Axion COMPACT is Pulsar's most compact series of monoculars.
The Axion COMPACT XG30 model maintains super compact dimensions while offering a 640×480 sensor and thermal sensitivity < 25 mK, making it one of the smallest thermal imagers in its class.
Miniaturized, lightweight, and economical, yet with excellent performance. Axion COMPACT are pocket-sized devices that fit in the palm of your hand, comparable in size to a typical laser rangefinder.
XG sensors with 12 µm technology and 640×480 resolution provide long range and magnification even with small lenses. This is an ideal choice for stalking hunts.
The image is displayed on a frost-resistant AMOLED screen. The device operates in a range of -25 to +40°C. The magnesium alloy housing is waterproof (IPX7), and the weight with battery is 310 g.
The APS3 3200 mAh battery provides up to 7 hours of operation.
Pulsar devices are designed and manufactured in Europe with European components.
Key features of the Pulsar Axion COMPACT XG30 thermal imager:
- Modern microbolometers
The Axion COMPACT XG30 thermal imager is equipped with a large 640x480 sensor and a pixel size of 12µm.
- Waterproof
The device has an IPX7 waterproof rating, meaning it is completely waterproof (submersible in water up to 1 meter for 30 minutes).
- Easy to use
Intuitive operation combined with modern technology gives us an effective, yet comfortable to use thermal monocular.
- Built-in video/photo recorder with 64 GB memory
The thermal imager has a built-in video and photo recorder and internal memory of 64 GB.
The USB-C port and the Stream Vision 2 application allow recordings to be transferred from the thermal imager to a computer.
- Built-in Wi-Fi module, Polish-language Stream Vision 2 application
Pulsar Axion COMPACT XG30 can communicate with external mobile devices, where, using the free, dedicated, Polish-language application StreamVision 2, you can view images, control thermal imager functions, save recordings to the free cloud, and update the device, equipping the sight with increasingly advanced functions.
- Powered by dedicated rechargeable batteries
The quickly replaceable APS 3 high-capacity Li-ion battery provides up to 7 hours of operation on a single charge. A standard power bank connected via the USB-C port can be used as an external power source.
- Long detection range
The use of high-quality germanium optics combined with a modern 12µm pixel sensor, despite a small lens, provides a detection range of up to 1300m.
- Frost-resistant AMOLED display with 640x400 pixel resolution
The AMOLED display guarantees high resistance to extreme temperatures, ensuring that the device will not fail even in the most challenging conditions.
- Software update capability
Pulsar allows users to update software in their products independently, providing access to the latest improvements. This feature means the device is constantly evolving and improving.
- Wide temperature range
Pulsar thermal imagers can be used at any time of the year – the device operates in a temperature range from -25 to +40 degrees Celsius.
- Display OFF
The "Display OFF" function instantly turns the display on/off without turning off the device, which saves battery power and helps you remain unnoticed in the dark.
- Color palettes
Various image color palettes are available – the user has access to as many as 8 versions. (White Hot, Black Hot, Hot Red, Red Monochrome, Rainbow, Ultramarine, Violet, Sepia)
- Stadiametric rangefinder
Thanks to the stadiametric rangefinder, we can easily determine the distance to a target of known size.
- Menu in Polish
To facilitate device operation, Pulsar products are equipped with a menu in Polish.
- High refresh rate
Even when observing moving objects, the image is smooth and observations are comfortable thanks to a 50 Hz refresh rate.
- 8x digital zoom
Axion COMPACT XG30 offers 8x digital zoom, providing magnification in the range of 2x to 16x.
Masz pytania?
Skontaktuj się z nami jeśli potrzebujesz dodatkowych informacji.
Axion Compact to najbardziej kompaktowa seria monokularów Pulsar — zminiaturyzowane, lekkie i ekonomiczne konstrukcje kieszonkowe, mieszczące się w dłoni, o rozmiarach porównywalnych z typowym dalmierzem laserowym. Model Axion Compact XG30 zachowuje super kompaktowe rozmiary, oferując sensor 640×480 i czułość termiczną <25 mK — jeden z najmniejszych termowizorów w tej klasie.
640×480
Rozdzielczość sensora
<25 mK
Czułość termiczna (NETD)
-25 do +40°C
Zakres temperatur pracy
IPX7
Wodoszczelność
Funkcje
- Duży sensor 640×480 mimo kompaktowych gabarytów
- Mrozoodporny ekran AMOLED
- Magnezowa, wodoszczelna obudowa (IPX7)
- Praca w zakresie -25°C do +40°C
Specyfikacja techniczna
| Nr katalogowy | 77508 |
|---|---|
| Model | Pulsar Axion Compact XG30 |
| Rozdzielczość sensora | 640×480 px |
| Rozmiar piksela | 12 µm |
| Czułość termiczna (NETD) | <25 mK |
| Materiał obudowy | Magnez |
| Wodoszczelność | IPX7 |
| Zakres temperatur pracy | -25°C do +40°C |
