- 640×512Detector, 50 Hz
- 1000 mRangefinder range, ±1 m
- 1300 mDetection range
- ≤15 mKNETD sensitivity

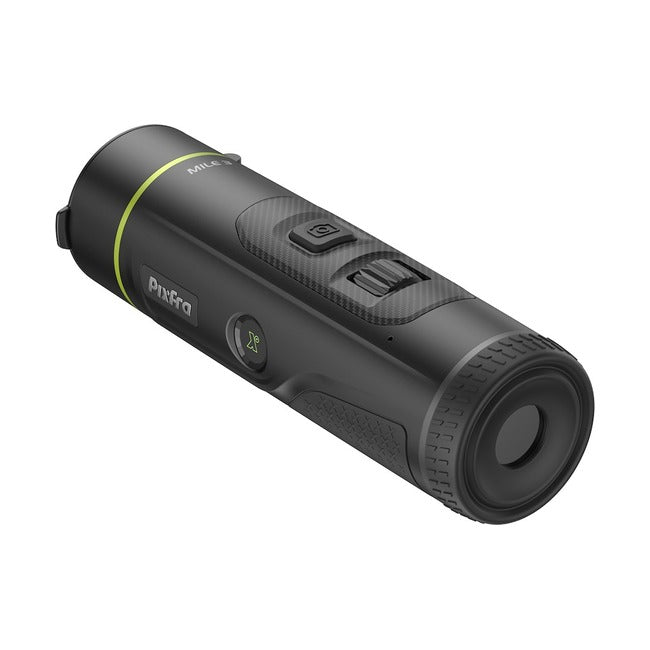

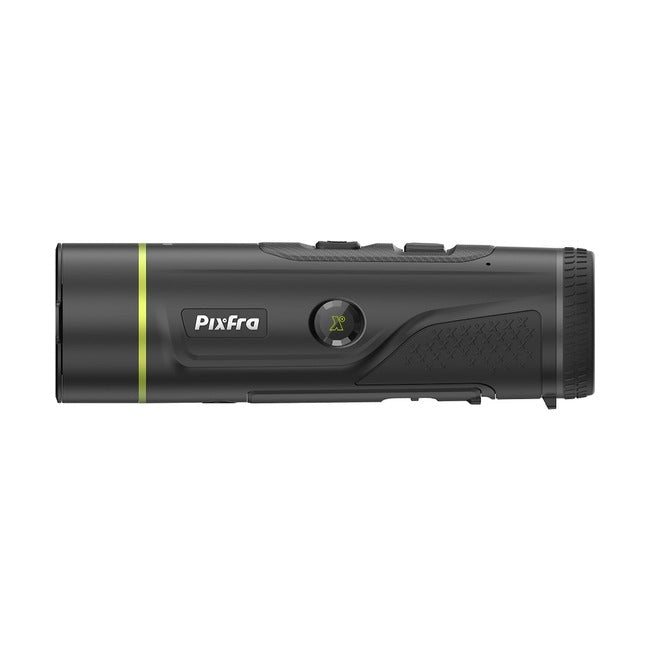

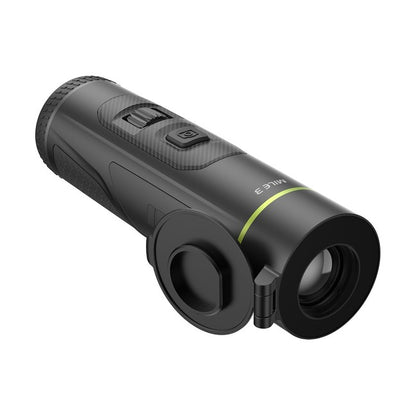

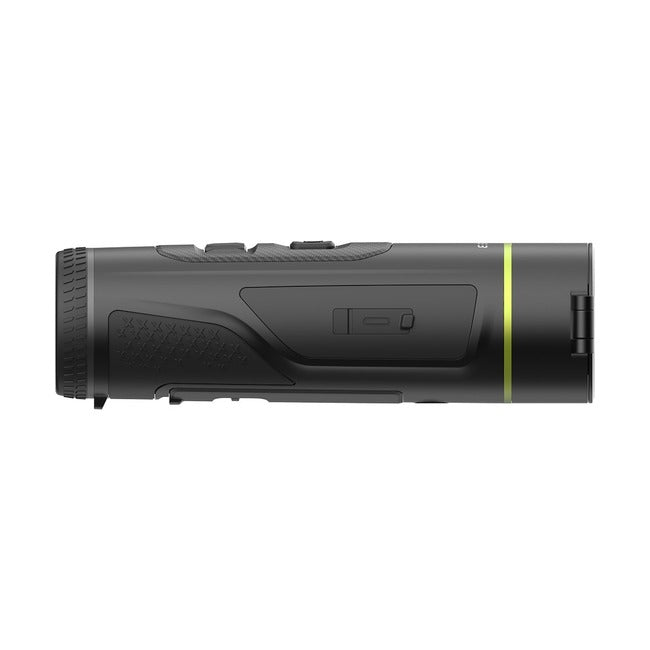

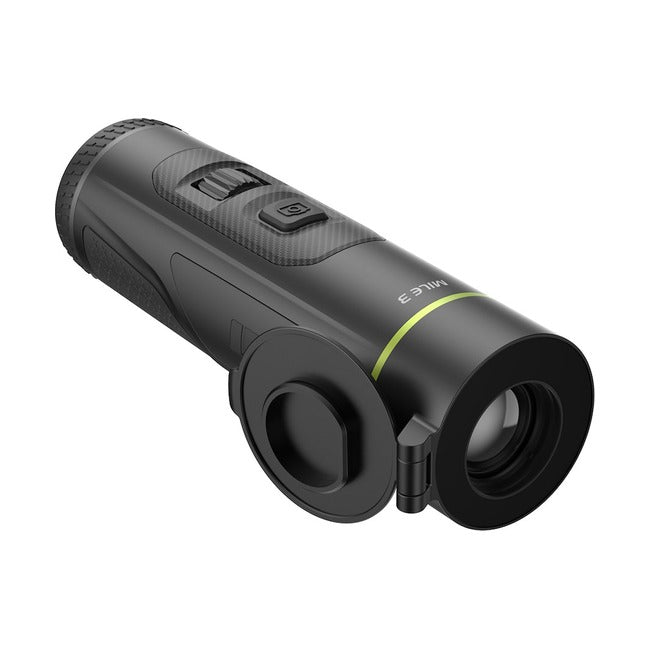

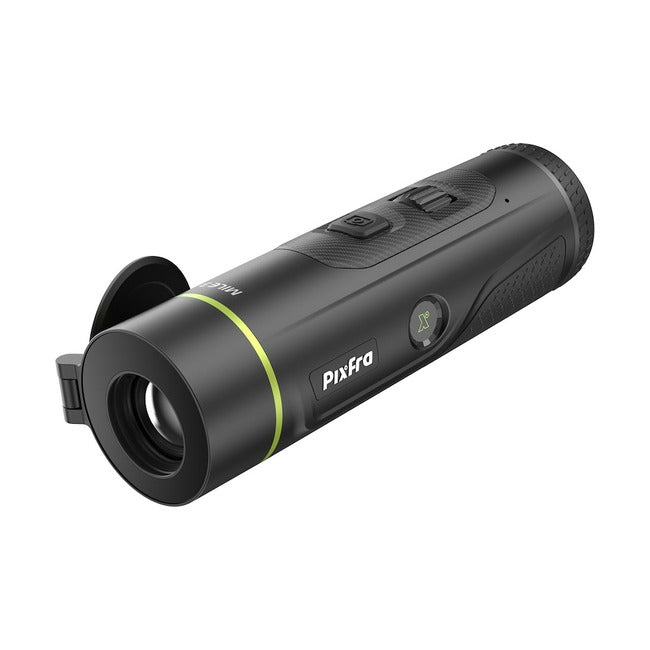

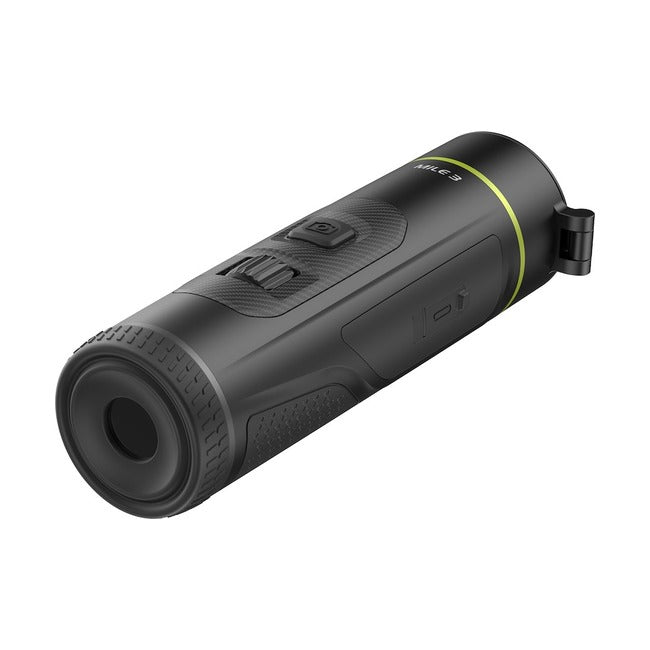

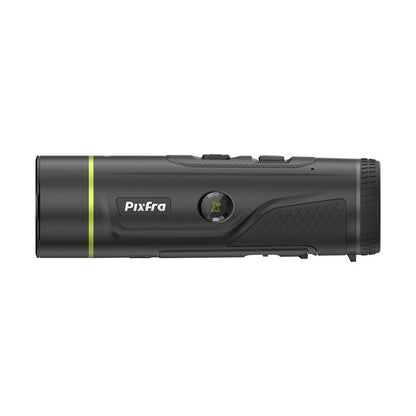

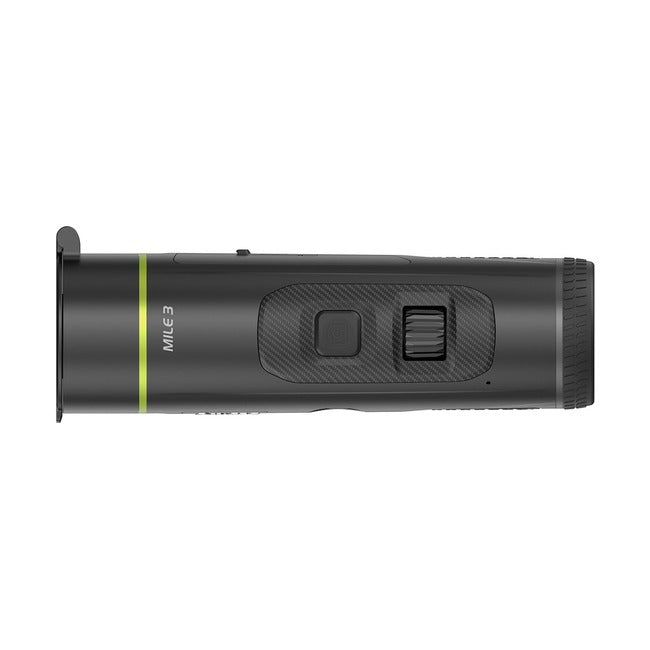

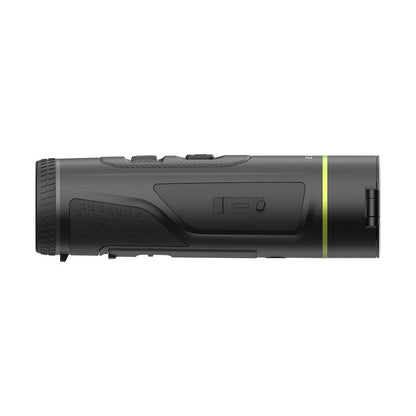

Pixfra Mile 3 M625 LRF is a pocket-sized thermal monocular with a 640×512 detector and a built-in laser rangefinder, designed for hunters who want to observe and measure distance with a single device. The rangefinder, co-axial with the housing, measures up to 1000 m with an accuracy of ±1 m and provides both line-of-sight and horizontal distance. The wide field of view of the 25 mm lens makes scanning the terrain easier, while the two 18650 batteries included in the set allow you to quickly resume work after replacement.
640×512
Detector, 50 Hz
1000 m
Rangefinder range, ±1 m
1300 m
Detection range
≤15 mK
NETD sensitivity
Key Features
- Uncooled VOx 640×512 detector, 12 µm pixel, 50 Hz refresh rate, ≤15 mK NETD sensitivity
- 25 mm F1.0 lens, 17.4° × 13.9° field of view (30.6 × 24.4 m at 100 m), 1300 m detection range
- Co-axial laser rangefinder: range up to 1000 m, ±1 m accuracy, line-of-sight and horizontal distance, Class 1 laser
- PIPS 3.0 Pro image processing with AI – less noise, more detail, and better detector response in cold conditions
- 0.49" 1920×1080 OLED display and six color palettes, with the target highlighted in red in Sepia and Green Hot modes
- 3-in-1 E-Wheel dial: electronic focusing, 1–8× digital zoom, and menu navigation, one-handed operation even with gloves
- Two interchangeable 18650 batteries included, up to 5 hours of operation on each, USB-C charging
- Magnesium alloy housing, rotating diopter correction ring, IP67 protection
- 64 GB memory, compass, video recording, photos, and Wi-Fi hotspot with preview on up to four smartphones using the PixFra Outdoor app
Applications
The Mile 3 M625 LRF is ideal for observing hunting grounds and estimating the distance to game before shooting, as well as in mountainous terrain, where horizontal distance measurement makes it easier to assess the situation. Distance measurement also helps monitor the boundaries of the hunting area. The wide field of view is useful in the forest and for quickly scanning the terrain, while the compact housing with no protruding elements fits in a pocket.
Technical Specifications
| Manufacturer | Pixfra |
|---|---|
| Model | Mile 3 PFI-M625 LRF |
| Detector type | uncooled VOx microbolometer |
| Detector resolution | 640×512 px |
| Pixel pitch | 12 µm |
| Refresh rate | 50 Hz |
| Spectral range | 8–14 µm |
| Sensitivity (NETD) | ≤15 mK @ f/1.0 |
| Lens | 25 mm, F1.0 |
| Field of view | 17.4° × 13.9° (30.6 × 24.4 m at 100 m) |
| Minimum focusing distance | 1 m |
| Detection range | 1300 m |
| Magnification | 1.2× (1–8× digital zoom) |
| Display | 0.49" OLED, 1920×1080 |
| Color palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Interpupillary distance | 15 mm |
| Diopter correction | from −5 to +3 D |
| Laser rangefinder | up to 1000 m, ±1 m accuracy |
| Laser class | Class 1 |
| Memory | built-in 64 GB |
| Connectivity | Wi-Fi hotspot |
| Power supply | 18650 battery (2 included) or 5 V DC via USB-C |
| Operating time | ≥5 hours on battery (25 °C, Wi-Fi off) |
| Protection | IP67 |
| Operating temperature | from −30 to +55 °C |
| Dimensions | 167.7 × 61.4 × 50 mm |
| Weight | ≤313 g (without battery) |
Package Contents
- Pixfra Mile 3 M625 LRF thermal monocular
- 2 18650 batteries (one installed, one spare)
- Battery charger
- USB cable
- Protective case
- Neck strap
- Wrist strap
- Foldable eye cups
Frequently Asked Questions
What is the range of the rangefinder in the M625 LRF?
Up to 1000 m with ±1 m accuracy. The rangefinder provides line-of-sight and horizontal distance. It is a Class 1 laser.
How does the M625 LRF differ from the M625?
It has a built-in laser rangefinder. The LRF version also has an F1.0 aperture lens (M625: F0.9), slightly larger dimensions, and weighs ≤313 g without the battery.
How long does the M625 LRF last?
Up to 5 hours on a single battery (25 °C, Wi-Fi off). Two 18650 batteries are included in the set.
