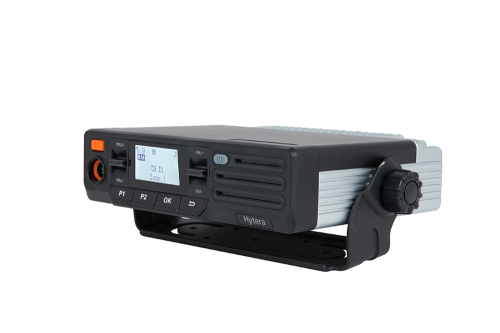

The Hytera MD625 BT is a compact DMR Tier II mobile radio with a 1.5'' LCD display — 256 channels, VHF or UHF, up to 45/50 W, IP54, MIL-STD-810G. The 1.5'' LCD display allows reading text messages and channel names. Weight 1100 g, dimensions 164×43×150 mm. Built-in Bluetooth for wireless accessories; GPS as an external option. Ideal for transportation and agriculture. Requires a UKE license.
256 channels
DMR Tier II + analog
1.5'' LCD
Text messages
45/50 W
UHF/VHF power
1100 g
164×43×150 mm
MD625 vs MD615: The MD625 has a 1.5'' LCD display instead of LED — visible channel names, zones, and text messages. Both have the same radio capabilities. The MD625 is lighter (1100 g vs approx. 1300 g) and has compact dimensions.
UKE license required
Features
- 1.5'' LCD — display of channel names, text messages, and status
- DMR Tier II + analog with auto-detection mode
- Hytera Pseudo-trunking — TDMA Direct
- 256 channels, 16 zones, Emergency Alarm
- Bluetooth (built-in) — wireless accessories and external PTT
- GPS (external option)
- Basic E2E encryption
Technical Specification
| VHF band | 136–174 MHz |
|---|---|
| UHF band | 400–470 MHz |
| LP transmit power | 1–25 W (VHF) / 1–25 W (UHF) |
| HP transmit power | 1–50 W (VHF) / 1–45 W (UHF) |
| Operating modes | DMR Tier II + analog |
| Number of channels | 256 channels / 16 zones |
| Display | 1.5'' LCD |
| Dimensions (W×H×D) | 164×43×150 mm |
| Weight | 1100 g |
| Power supply voltage | 13.6 V DC ± 15% |
| Protection rating | IP54 |
| Resistance | MIL-STD-810G |
| UKE license | Required |
Kit Contents
| Hytera MD625 radio | × 1 |
|---|---|
| SM11A1 hand microphone | × 1 |
| PWC10 power cable (12V) | × 1 |
| BRK29 mounting bracket | × 1 |
