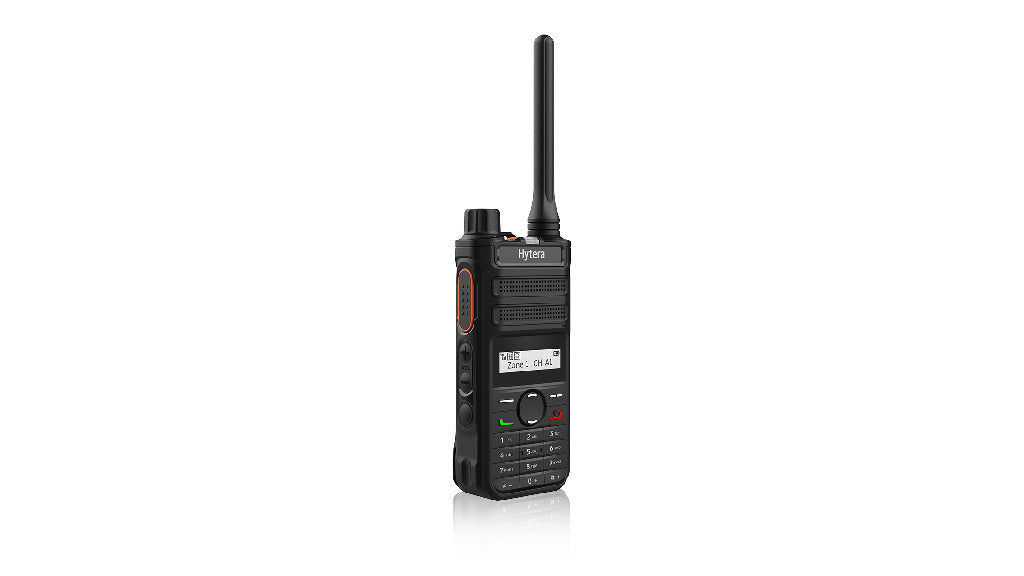

The Hytera AP585 is an analog radio with a slim body, a 1.4'' LCD display, and a full keypad – offering more on-site management options than models without a display. It features 128 channels, VHF or UHF, IP54, MIL-STD-810G, and a 1500 mAh battery with USB-C charging or via the CH10A07 desktop charger. An UKE license is required.
128 channels
1.4'' LCD display
12 h
Battery life (5-5-90)
IP54
MIL-STD-810G
5/4 W
VHF/UHF power
AP585 vs AP515: The AP585 has an LCD display and a full keypad – convenient channel management and 128 channels (vs 32). The AP515 is thinner and has longer battery life (25 h vs 12 h) due to a larger 4000 mAh battery. For applications with many channels or a need for identification – AP585.
UKE license required – the radio operates on frequencies requiring a concession from the Office of Electronic Communications.
Features
- 1.4'' monochrome LCD display – channel number and battery status preview
- 128 channels – wide configurability for large fleets
- Scrambler – basic call encryption
- VOX – hands-free communication
- CTCSS/CDCSS – channel privacy codes
- USB-C charging or via CH10A07 desktop charger
- Background noise reduction, voice notifications
Technical Specification
| VHF Band | 136–174 MHz |
|---|---|
| UHF Band | 470–527 MHz |
| Transmitting Power | 1–5 W (VHF) / 1–4 W (UHF) |
| Number of Channels | 128 channels |
| Channel Spacing | 12.5 / 25 kHz |
| Display | 1.4'' monochrome LCD |
| Battery | BL1507, 1500 mAh Li-Ion |
| Operating Time | Up to 12 h @ 5-5-90 |
| Charging | USB-C or CH10A07 desktop charger |
| Protection Rating | IP54 |
| Durability | MIL-STD-810G |
| Dimensions | 115×55×29.5 mm (without antenna) |
| Weight | Approx. 230 g (with battery and antenna) |
| UKE License | Required |
Package Contents
| Hytera AP585 Radio | × 1 |
|---|---|
| BL1507 Battery (1500 mAh) | × 1 |
| CH10A07 Desktop Charger with PS1044 Power Adapter | × 1 |
| BC48 Belt Clip | × 1 |
