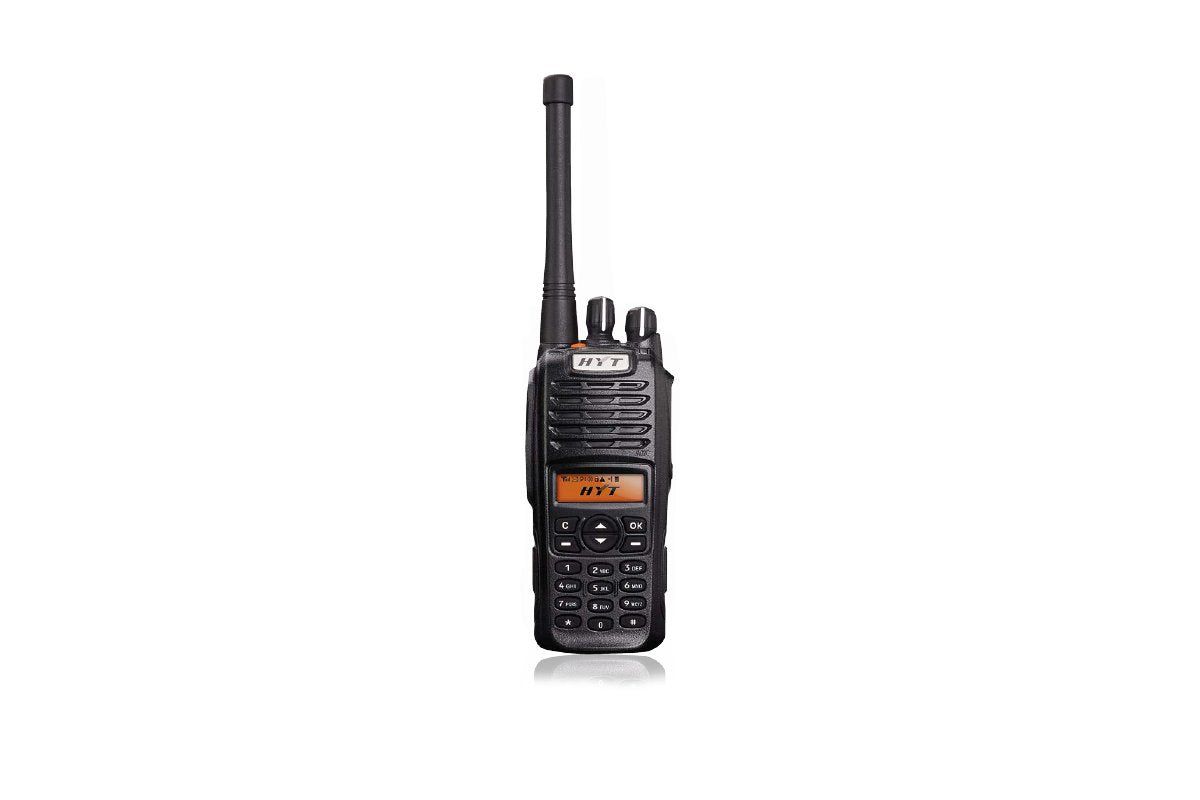

HYT TC-780 – flagship analog VHF/UHF radio (256 channels, Mandown, Scrambler, keypad)
The HYT TC-780 is the most advanced model in the HYT TC series — 256 channels, full alphanumeric keypad, LCD display, Mandown, dedicated emergency button, and Scrambler. 1700 mAh Li-Ion battery (BL1703), 13 hours of operation, IP54, MIL-STD-810C/D/E/F. VHF 136–174 MHz or UHF 400–470 MHz.
256 channels
Full keypad + display
Mandown
Position sensor + alarm
13 h
Operating time (5-5-90)
Scrambler
Analog encryption
TC-780 vs TC-700P: The TC-780 is the version with a full alphanumeric keypad,
256 channels and Mandown — offering the maximum capabilities of the HYT TC series in analog technology.
The TC-700P has fewer channels and no keypad, but is lighter and simpler to use.
Choose the TC-780 for dispatch centers, public safety, and applications
requiring a large number of channels and safety features.
Features
- Mandown — radio position sensor, automatic alarm in horizontal position
- Lone Worker — lone worker protection with presence confirmation alarm
- Dedicated emergency button — immediate emergency call
- Scrambler — voice encryption
- Full alphanumeric keypad
- LCD display with backlight
- VOX (5 levels) — hands-free communication
- CTCSS (38 tones) / CDCSS (83 codes)
- 2-tone, 5-tone, HDC2400 signaling
- Priority channel scan
- Vibration — discreet signaling
- DTMF, ANI Encode
- Configuration cloning
Technical specifications
| VHF band | 136–174 MHz, power 1 / 2 / 5 W |
|---|---|
| UHF band | 400–470 MHz, power 1 / 2 / 4 W |
| Number of channels | 256 |
| Channel spacing | 12.5 / 20 / 25 kHz |
| Display | Alphanumeric LCD with backlight |
| Keypad | Full alphanumeric |
| Battery | 1700 mAh Li-Ion BL1703 (replaceable) |
| Operating time | Up to 13 h @ 5-5-90 |
| Protection rating | IP54 |
| Durability | MIL-STD-810C/D/E/F |
| Operating temperature | -30°C to +60°C |
| Dimensions | 126×54×35 mm (without antenna) |
| Weight | 360 g (with battery and antenna) |
| License | Required (UKE) |
Kit contents
| HYT TC-780 radio | × 1 |
|---|---|
| BL1703 1700 mAh Li-Ion battery | × 1 |
| Antenna | × 1 |
| CH10L07 desktop charger with PS1018 power supply | × 1 |
| Belt clip | × 1 |
| Hand strap | × 1 |
