Product Description

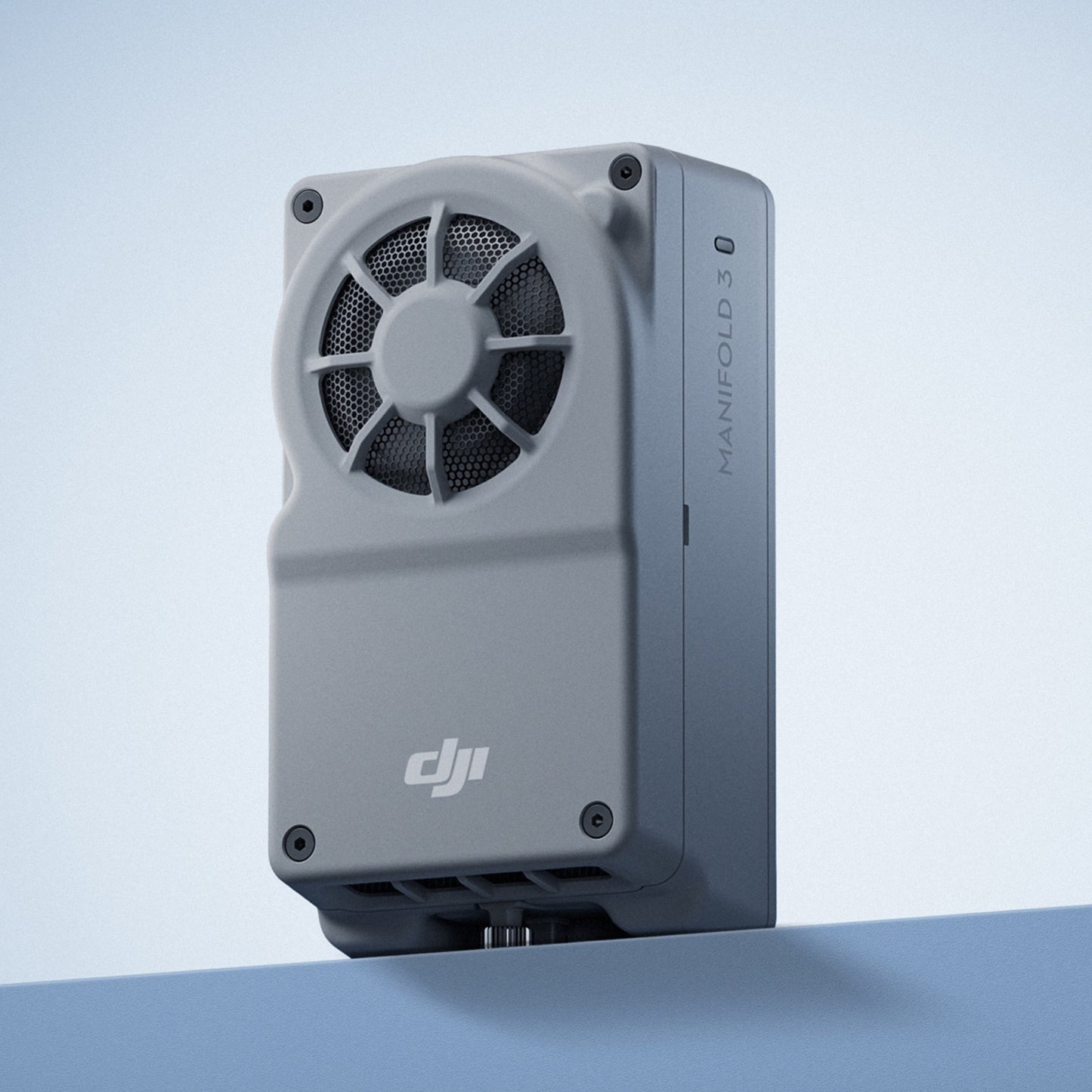

DJI Manifold 3 is an enterprise-grade AI onboard computer for real-time data processing (edge computing) directly on the drone. 100 TOPS of computing power (INT8), GPU + DLA architecture, 16 GB RAM, 256 GB SSD — advanced AI algorithms without sending raw data to the cloud. Weighs only 120 g, IP55, operates from -20°C to +50°C.
100 TOPS
AI Power (INT8)
16 GB
LPDDR5 RAM
256 GB
SSD
120 g
Weight
Edge computing — why? Manifold 3 processes data from cameras and sensors
directly on board the drone — without sending raw data to the cloud.
The result is lower latency, reduced O4 transmission bandwidth requirements,
greater mission autonomy, and the ability to run custom AI models in the field
without internet coverage.
Applications
- Real-time object detection and classification
- Automated infrastructure inspections with anomaly identification
- Autonomous BVLOS missions with onboard decision logic
- Data analysis from LiDAR sensors and multispectral cameras
- Public safety and critical area monitoring
Technical Specifications
| AI Power | Up to 100 TOPS (INT8) |
|---|---|
| Architecture | GPU + DLA (AI acceleration) |
| RAM Memory | 16 GB LPDDR5 |
| Storage | 256 GB SSD |
| Rated Power | 33 W |
| Interface | E-Port V2 + USB-C 3.2 Gen 1 |
| Weight | 120 ±5 g |
| Dimensions | 98 × 57 × 36 mm |
| Ingress Protection | IP55 |
| Operating Temperature | -20°C to +50°C |
Dedicated versions for DJI platforms
| Manifold 3 for Matrice 4 (4E / 4T) | For Matrice 4 series |
|---|---|
| Manifold 3 for Matrice 4D / 4TD | For Dock 3 platforms |
| Manifold 3 for Matrice 400 | For M400 platform |
