- Type 11769Compatible tube
- 26 mm F/1.2Lens
- 40°Field of view
- 11P4LXXXXXXX1Part number
The SKD AGM PVS-14L enclosure is a set of assembled components for a lightweight PVS-14L night vision monocular, supplied without an image intensifier tube. The manufacturer recommends an 11769-type tube for it. The set is intended for service centers and companies that select and install the tube themselves, resulting in a compact monocular with a 26 mm F/1.2 lens, built-in infrared illuminator, and single AA battery power.
Type 11769
Compatible tube
26 mm F/1.2
Lens
40°
Field of view
11P4LXXXXXXX1
Part number
Key features
- Assembled PVS-14L monocular components – the image intensifier tube is not included.
- Designed for an 11769-type tube.
- Compact and durable design with a smaller lens and eyepiece than the classic PVS-14.
- 26 mm F/1.2 lens, 1× magnification, 40° field of view, focusing from 0.25 m.
- Manual gain control and automatic shut-off in bright light to protect the tube's photocathode – the device automatically turns back on when the light intensity drops.
- Built-in infrared illuminator with a diffusing lens.
- LED indicators in the field of view: low battery, IR illuminator on, too bright.
- Powered by a single AA alkaline battery, up to 40 hours of operation at 20°C.
- Can be used handheld, head-mounted, or with other mounts.
Compatibility
The enclosure is designed for installation with an 11769-type image intensifier tube – AGM offers several, including MX-11769 Gen 2+ tubes in AP and APW versions. Once the tube is installed, the PVS-14L monocular can be used handheld or head-mounted, allowing for hands-free observation. The set is also suitable for service centers that want to replace a damaged enclosure and transfer a functional tube into it.
Technical specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | PVS-14L SKD Standard Lightweight Kit (without tube) |
| Part number | 11P4LXXXXXXX1 |
| Compatible tube | Type 11769 |
| Magnification | 1× |
| Lens | 26 mm, F/1.2 |
| Field of view | 40° |
| Focus range | From 0.25 m to infinity |
| Diopter correction | From −6 to +2 diopters |
| LED indicators in the field of view | Low battery, IR illuminator on, too bright |
| Manual gain control | Yes |
| Bright light shut-off | Yes |
| Infrared illuminator | Yes |
| Power supply | 1 AA alkaline battery |
| Operating time | Up to 40 hours at 20°C |
| Operating temperature | From −51 to +49°C |
| Storage temperature | From −51 to +85°C |
| Weight | 238 g |
| Dimensions (without lens cover and eyepiece shell) | 108 × 63 × 69 mm |

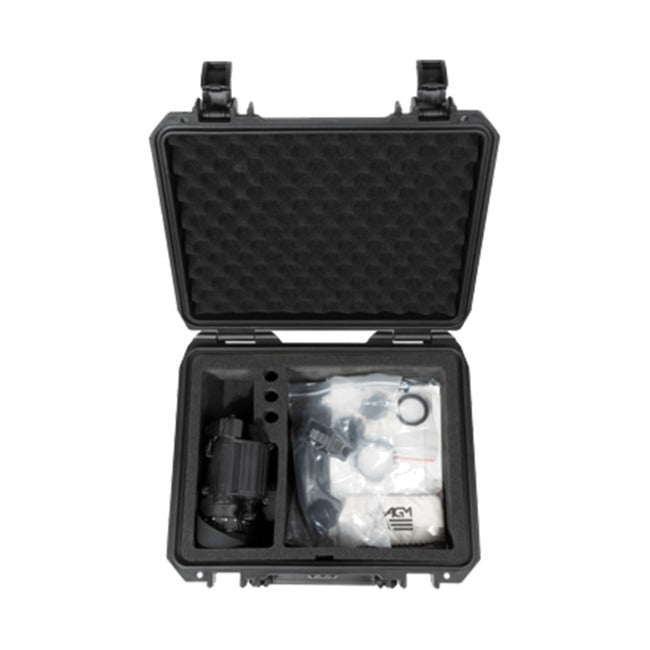

Set contents
- PVS-14L night vision monocular (enclosure without tube)
- Eyepiece shell
- Day filter
- Lens cloth
- Sacrificial lens protector
- Demist shield
- J-Arm head mount adapter
- User manual
- Battery
- Hard case
Frequently asked questions
Does the set include an image intensifier tube?
No. The SKD enclosure is sold without a tube. The manufacturer recommends an 11769-type tube for it.
What power supply does the PVS-14L require?
One AA alkaline battery. The manufacturer states up to 40 hours of operation at 20°C.
Can I install the tube in the enclosure myself?
Installing an image intensifier tube requires experience and knowledge of night vision device construction. We recommend contacting us before purchase regarding tube and enclosure selection.
