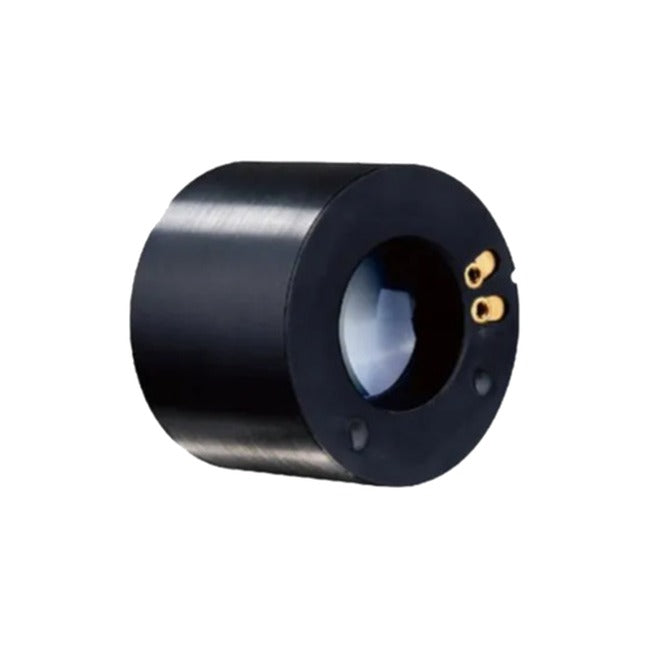

The AGM MX-10130 NL1 is an 18 mm drop-in Gen 2+ image intensifier tube with green P43 phosphor and a non-inverting fiber optic window. The manufacturer designates it for all versions of the AGM PVS-7 night vision goggles, making it useful for servicing and replacing the tube or assembling goggles from an SKD housing. It provides a resolution of 60–64 lp/mm and an FOM of 1300–1400 with a built-in power supply without autogating.
PVS-7
Fits
P43 green
Phosphor
60–64 lp/mm
Resolution
20205321
Part number
Key Features
- 10130 Gen 2+ tube in a compact 18 mm (drop-in) format, NL1 class
- P43 phosphor (green) on a non-inverting, concave fiber optic window
- Limiting resolution of 60–64 lp/mm, signal-to-noise ratio of 23–25, FOM of 1300–1400
- S25⁺ multi-alkali photocathode with sensitivity of 700 µA/lm (min.) to 800–850 µA/lm, sensitivity at 850 nm of 55–75 mA/W
- Gain of 25,000–30,000, maximum output brightness of 4–8 cd/m²
- Built-in power supply without autogating, blade contacts
- Dimensions of Ø 43.1 × 31.3 mm, useful photocathode diameter of 17.5 mm
Compatibility
The manufacturer states that the tube fits all versions of the AGM PVS-7 goggles, e.g. AGM PVS-7 NL1. According to AGM, 10130 series tubes are also used in other devices available on the civilian market, such as the FoxBat-LE or Comanche 22. The tube does not fit PVS-14 monoculars – for those, the manufacturer provides 11769 type tubes with an inverter. Replacement is necessary when the previous tube has been damaged or worn out, or when assembling goggles from an SKD housing without a tube.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | MX 10130 Gen 2+ P43-NL1 |
| Part number | 20205321 |
| Type | Gen 2+, type 10130, non-inverting |
| Phosphor | P43 (green) |
| Dimensions | Ø 43.1 (−0.15) × 31.3 ±0.6 mm |
| Contacts | blade contacts |
| Useful photocathode diameter | 17.5 mm |
| Photocathode type | S25⁺ multi-alkali |
| Input / output window | 5.6 mm glass / non-inverting, concave fiber optic |
| Photocathode sensitivity | min. 700 µA/lm, max. 800–850 µA/lm |
| Sensitivity at 850 nm | 55–75 mA/W |
| Limiting resolution | 60–64 lp/mm |
| Signal-to-noise ratio | 23–25 |
| FOM | 1300–1400 |
| Gain | 25,000–30,000 |
| Max. output brightness | 4–8 cd/m² |
| MTF | 2.5 lp/mm – 86%, 7.5 lp/mm – 72% |
| Power supply | without autogating |
| Compatibility | AGM PVS-7 (all versions) |
Frequently Asked Questions
Does the MX-10130 tube fit the PVS-14?
No. The manufacturer designates it for PVS-7 goggles. For the PVS-14, AGM offers 11769 type tubes, e.g. MX-11769 NL1.
How do the NL1, NL2, and NW1 classes differ?
According to AGM, Gen 2 tube classes differ mainly in resolution and image cosmetics. NL designations refer to tubes with green P43 phosphor, and NW – to those with white P45 phosphor.
Can I install the tube myself?
Installing the tube requires experience, so it is worth entrusting it to a service center or someone who has already assembled night vision goggles. We recommend contacting us before purchase regarding the selection of the tube for your device.
