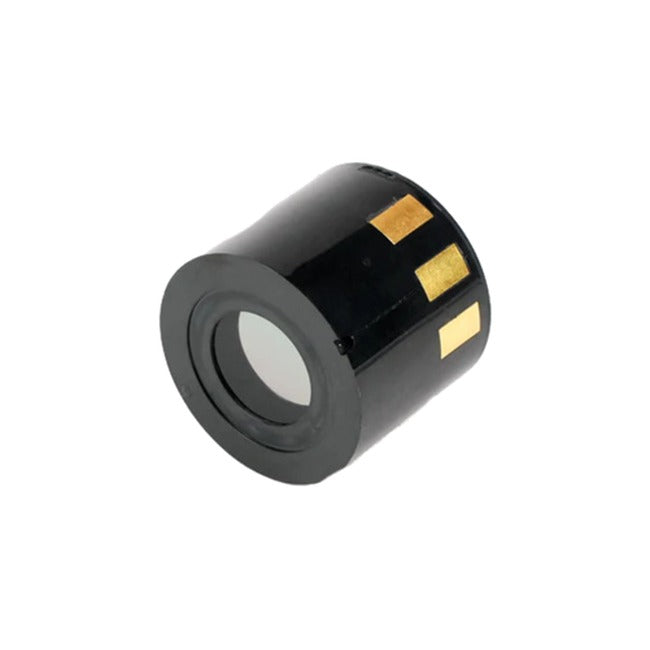

The AGM MX-11769 HP+ is a Gen 2+ image intensifier tube with P43 (green) phosphor, designed for night vision devices with an inverting 11769-type tube and manual gain control. According to the manufacturer, it is compatible with AGM PVS-14 devices (all versions), PVS-14L, PVS-14E, PVS14-51, NVG-40, NVG-50, and UNVG. The tube is aimed at service centers and night vision device assembly companies: it combines a minimum FOM of 2100, a resolution of 68 lp/mm, and power supply with an autogating function.
MX-11769
Tube type
FOM 2100
FOM value
P43 green
Phosphor
PVS-14, NVG, UNVG
Compatible with
Key Features
- Gen 2+ image intensifier tube in the 11769 standard.
- P43 phosphor (green) on an inverting fiber-optic output window (180° inverter).
- S-25 multialkali photocathode with a sensitivity of 1000 µA/lm.
- Resolution of 68 lp/mm and FOM 2100, signal-to-noise ratio of 28.
- Power supply with an autogating function and manual gain control in the device.
- Gain of 25,000–35,000, reliability of min. 10,000 h.
- Photocathode diameter min. 17.5 mm, weight 85 g.
Compatibility
The manufacturer states that the tube is designed for AGM PVS-14 devices (all versions), PVS-14L, PVS-14E, PVS14-51, NVG-40, NVG-50, and UNVG. It has an 11769 format with a diameter of approximately 36.75 mm and a length of 30.4 mm, with wires or contact pads. Replacing the tube is advisable when the current tube is worn or damaged, or when upgrading the device's parameters, e.g., changing the phosphor or switching to a higher FOM. Housings designed for G2G 43×22 mm tubes (Wolf-7 PRO, Wolf-14) do not accept the 11769 tube.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | MX 11769 Type Gen 2+ HP+ |
| Part Number | 2104117311 |
| Generation | Gen 2+ |
| Type | 180° inverter |
| Photocathode | multialkali |
| Phosphor | P43 (green) |
| Input / Output Window | 5.6 mm glass / inverting fiber-optic, concave |
| Resolution | 68 lp/mm |
| Photocathode Sensitivity | 1000 µA/lm |
| Signal-to-Noise Ratio | 28 |
| FOM (min.) | 2100 |
| Output Brightness | 4–8 cd/m² |
| Gain | 25,000–35,000 |
| Power Supply | autogating |
| Input Voltage | 2–3.4 V |
| Input Current (max.) | 25 mA |
| Reliability (min.) | 10,000 h |
| Contacts | wires or contact pads |
| Photocathode Diameter (min.) | 17.5 mm |
| Weight | 85 g |
| Dimensions | Ø 36.75 × 30.4 mm |
Frequently Asked Questions
Which night vision devices is this tube compatible with?
According to the manufacturer, it is compatible with AGM PVS-14 (all versions), PVS-14L, PVS-14E, PVS14-51, NVG-40, NVG-50, and UNVG.
Does the tube have autogating?
Yes. The manufacturer specifies power supply with an autogating function, and the tube is designed for devices with manual gain control.
Can I replace the tube in the night vision device myself?
Installing an image intensifier tube requires experience and appropriate service conditions, so before purchasing, we recommend contacting us regarding tube and housing selection.
