- 34 mmRing diameter
- 0 MOACant
- 16 mmScope height above the rail
- 230 gWeight

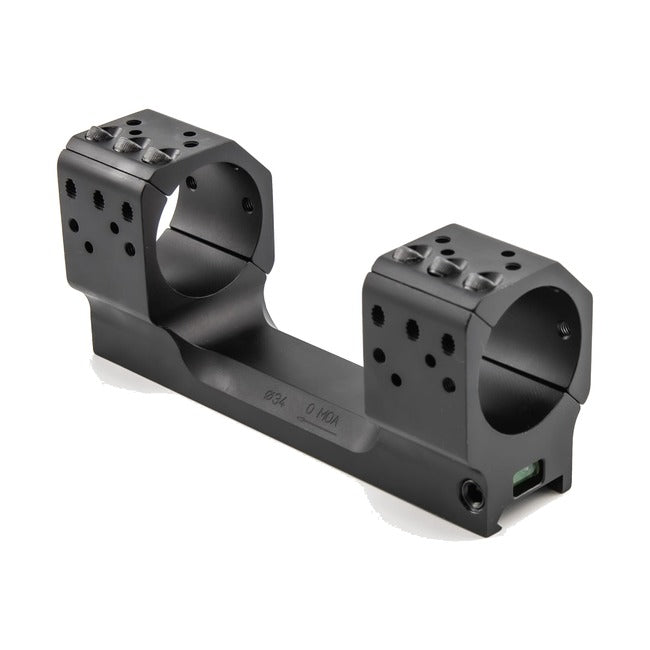

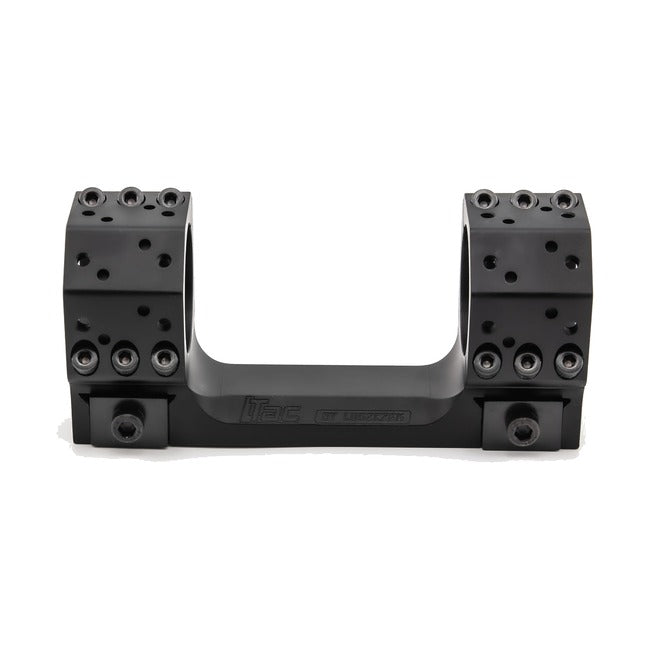

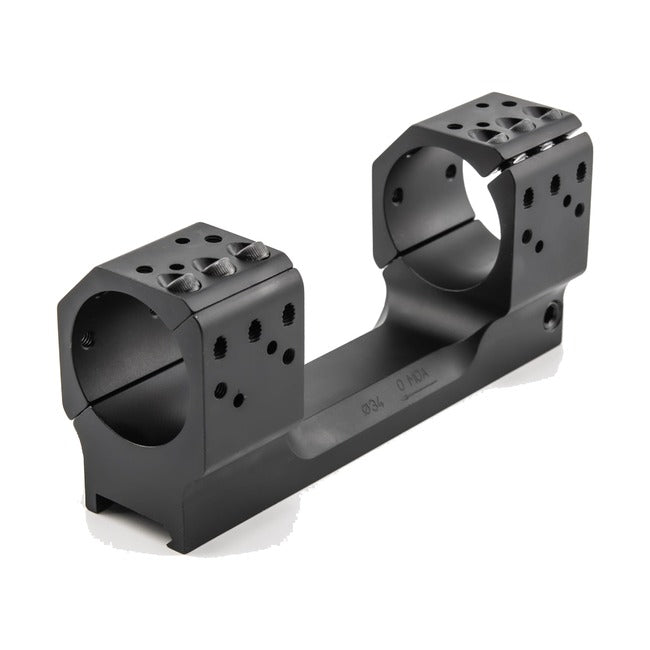

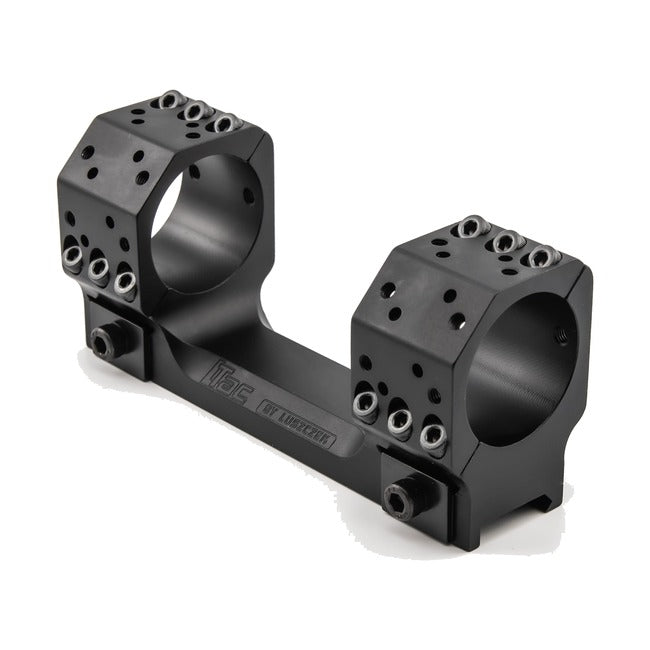

The Łuszczek Monoblock 34 mm mount is a one-piece monolithic mount designed for long-range shooting. It is mounted on a Picatinny or Weaver rail, and a scope with a 34 mm tube is held by two rings tightened together with twelve screws. The spirit level built into the lower part helps keep the rifle vertical, which improves comfort and shot repeatability.
34 mm
Ring diameter
0 MOA
Cant
16 mm
Scope height above the rail
230 g
Weight
Key Features
- Monolithic mount for a Picatinny/Weaver rail.
- Rings for scopes with a 34 mm tube.
- 0 MOA cant, scope height above the rail: 16 mm.
- Spirit level mounted in the lower part of the mount.
- Two independent steel rail clamps.
- 12 scope clamping screws.
- Mounting holes for a short Picatinny rail for additional scope accessories.
- Weight: 230 g.
Application
The mount is designed primarily for long-range shooting, where a rigid connection between the scope and the rifle and cant control are essential. A Picatinny or Weaver rail is required on the rifle – for a Tikka T3 rifle, you can choose the Łuszczek Picatinny rail. The short Picatinny rail screwed to the mount can be used to attach scope accessories.
Technical Specifications
| Manufacturer | Łuszczek |
|---|---|
| Model | Monoblock 34 mm, 0 MOA, H16 |
| Type | monolithic mount |
| Mounting | Picatinny/Weaver rail |
| Cant | 0 MOA |
| Ring diameter (D) | 34 mm |
| Mount length (A) | 130 mm |
| Distance between rings (B) | 70 mm |
| Ring width (C) | 30 mm |
| Mount width (E) | 38 mm |
| Scope height above the rail (F) | 16 mm |
| Mount height (G) | 59 mm |
| Clamps | 2 independent, steel |
| Scope clamping screws | 12 |
| Spirit level | yes, mounted |
| Weight | 230 g |
Frequently Asked Questions
What rail is this mount fitted to?
A Picatinny or Weaver rail.
What scope is it compatible with?
Scopes with a 34 mm tube diameter. The distance between the rings is 70 mm, and their width is 30 mm.
Does the mount have cant?
No, this is the 0 MOA version. The scope height above the rail is 16 mm.
