- 1–10×Magnification
- 22°–2.2°Field of view
- 96 mmEye relief
- 536 gWeight

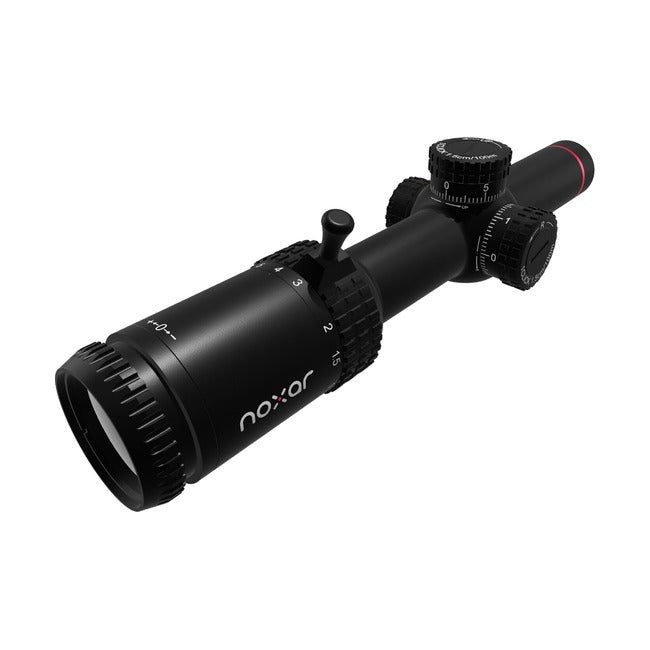

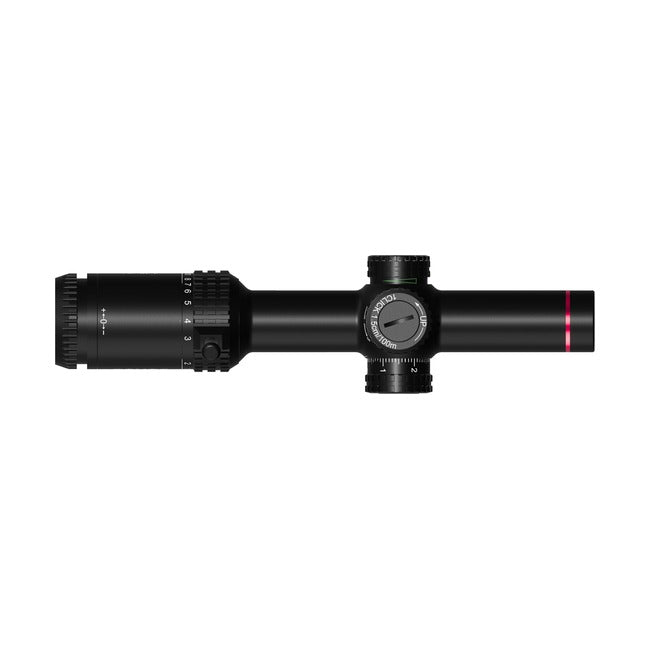

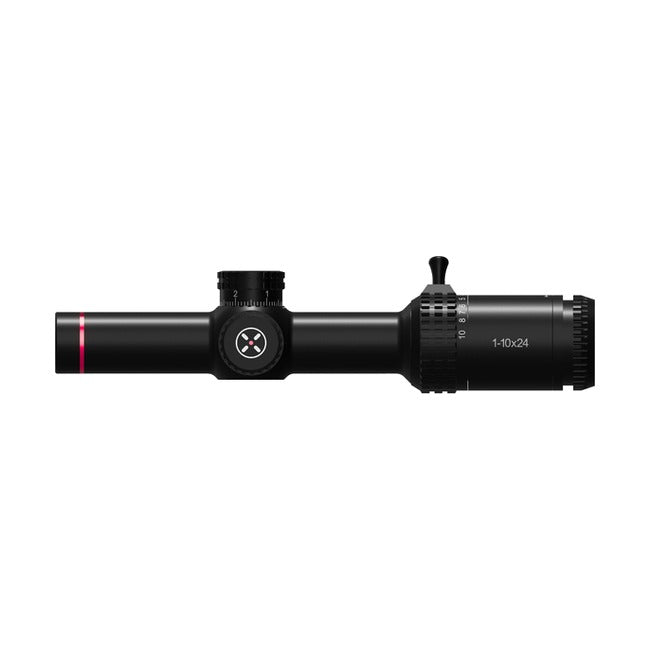

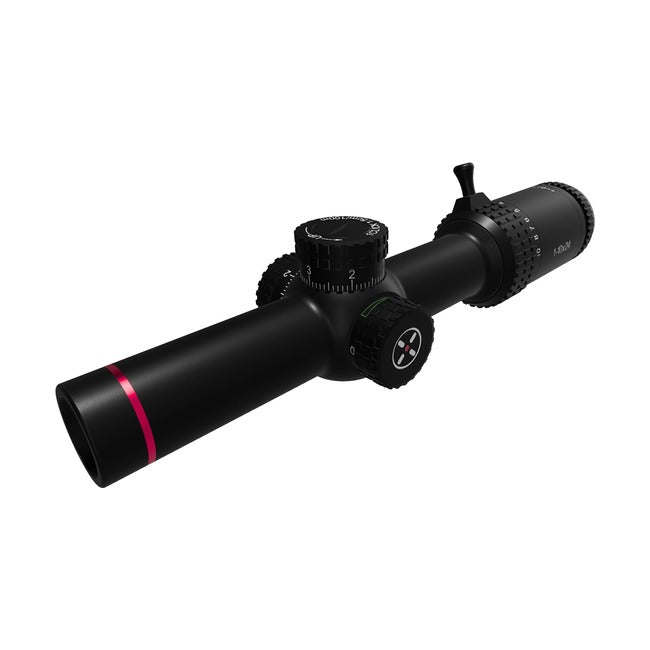

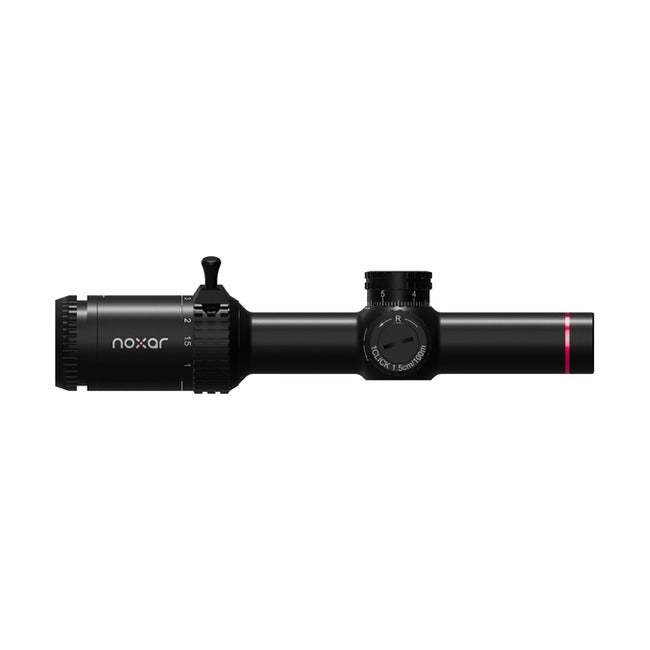

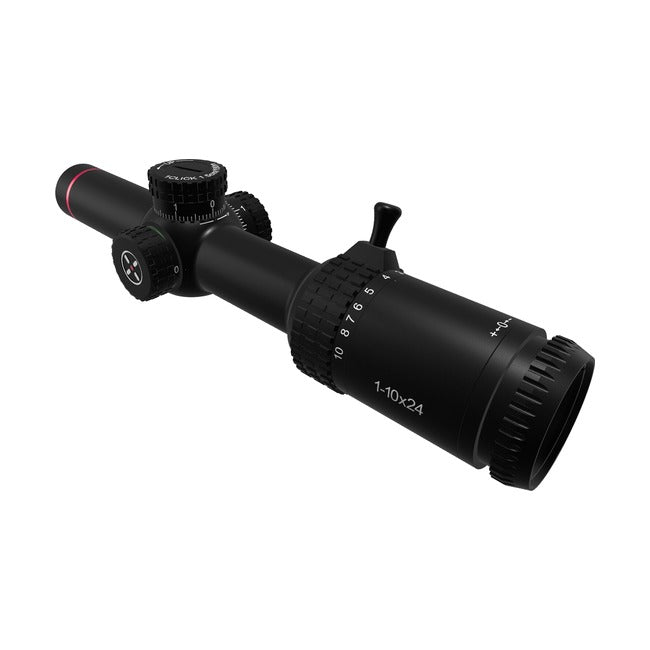

The Noxar Magnar 1-10x24 WA is an LPVO scope with the widest magnification range in the Magnar series – from 1× to 10×. At 1×, it allows for quick shooting with both eyes open during driven hunts and stalking, while at 10×, it makes it easier to identify game and take precise shots at longer distances. The etched glass reticle with red or green illumination, 30 mm tube, and rugged construction make it a versatile scope for most hunts. The set includes 30 mm Picatinny rail rings.
1–10×
Magnification
22°–2.2°
Field of view
96 mm
Eye relief
536 g
Weight
Key Features
- 1–10× magnification range – from quick shooting with both eyes open to precise shots at longer distances

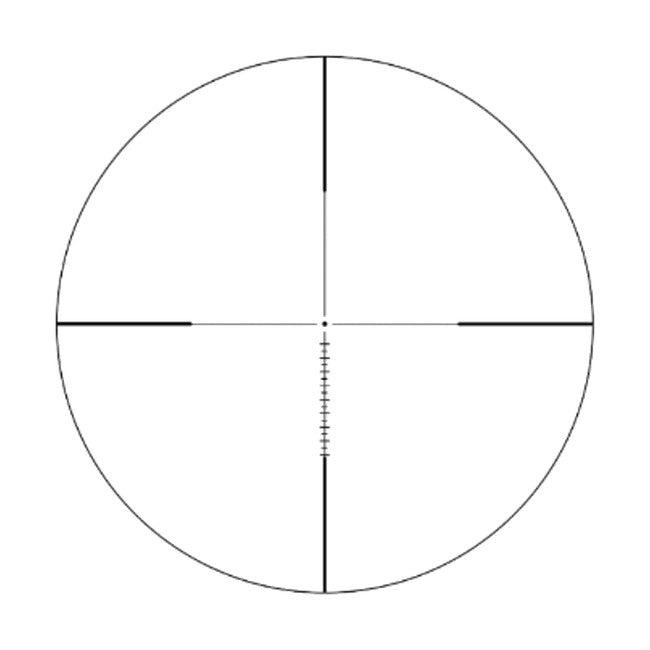

- Etched glass reticle, second focal plane (SFP)
- Red or green illuminated aiming point with brightness adjustment ring
- Open adjustment turrets for quick corrections
- 96 mm eye relief, safe for recoil
- Optics with multi-layer FMC coatings
- Shockproof, waterproof, and anti-fog construction
- 30 mm tube, 30 mm Picatinny rail rings included – the scope is ready to mount
Applications
The 1–10× LPVO scope effectively replaces two scopes: during a driven hunt, it works like a wide field-of-view red dot, while increasing the magnification allows you to examine the game closely and take a shot from a stand. It is ideal for driven hunts, stalking, and dynamic shooting. In the Magnar series LPVO scopes, the parallax is fixed (no adjustment).
Technical Specifications
| Model | Noxar Magnar 1-10x24 WA |
|---|---|
| Magnification | 1–10× |
| Objective diameter | 24 mm |
| Eyepiece diameter | 38 mm |
| Tube diameter | 30 mm |
| Field of view | 22°–2.2° (approx. 38.9–3.8 m at 100 m) |
| Eye relief | 96 mm |
| Exit pupil | 9–2.6 mm |
| Diopter adjustment | From −2.5 to +2.5 diopters |
| Reticle | Etched glass, second focal plane (SFP) |
| Illumination | Red or green, adjustable brightness |
| Illumination power | CR2032 battery |
| Adjustment turrets | Open |
| Parallax | Fixed (no adjustment) |
| Coatings | FMC (fully multi-coated) |
| Durability | Shockproof, waterproof, anti-fog |
| Mounting | 30 mm Picatinny rail rings (included) |
| Length | 270 mm |
| Weight | 536 g |
Package Contents
- Noxar Magnar 1-10x24 WA scope
- 30 mm Picatinny rail mounting rings
- Objective and eyepiece covers
- Optical cleaning cloth
