- 640×512VOx detector, 17 µm
- < 35 mKNETD
- 1029 mHuman detection
- IP67Enclosure rating

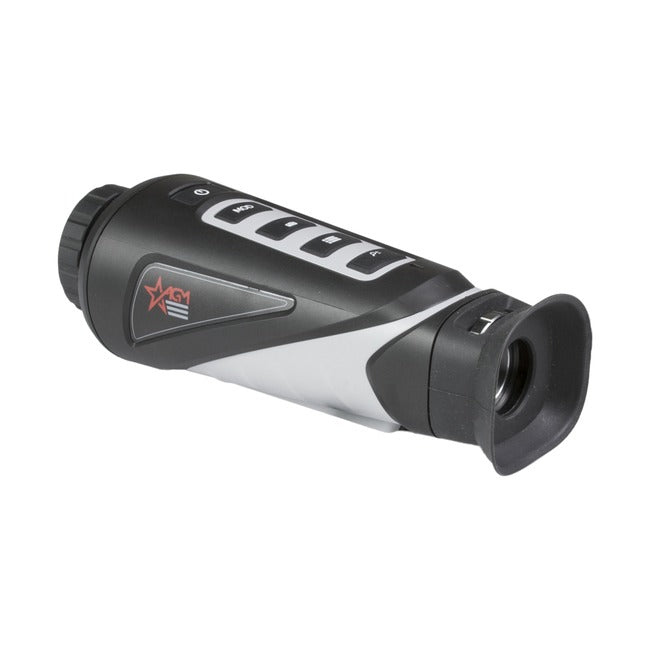

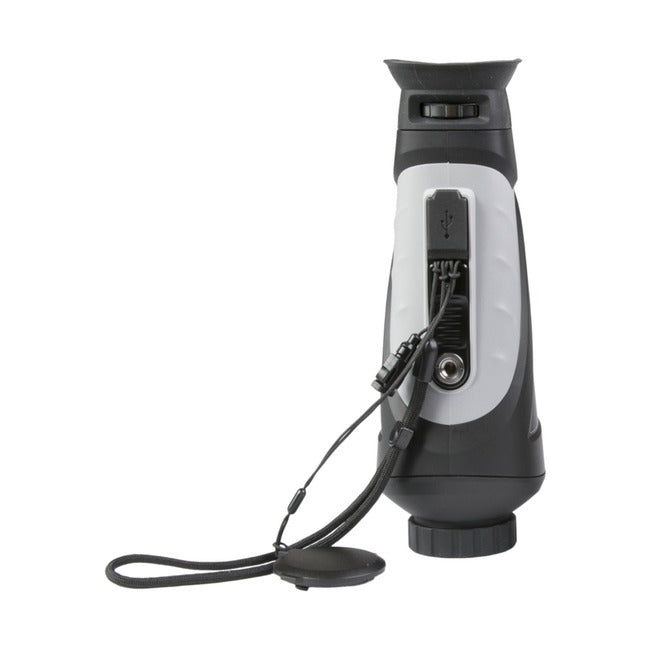

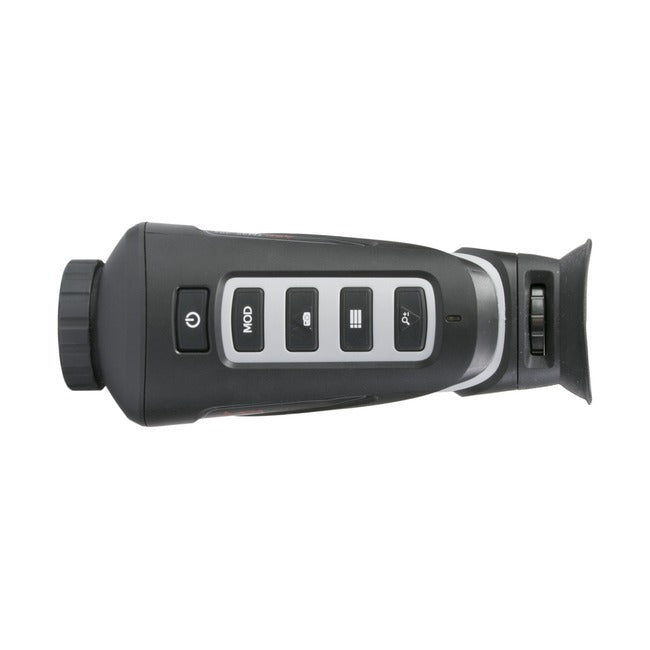

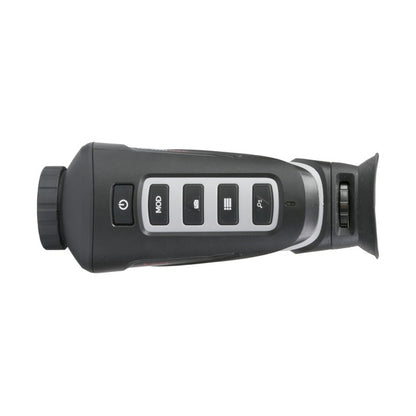

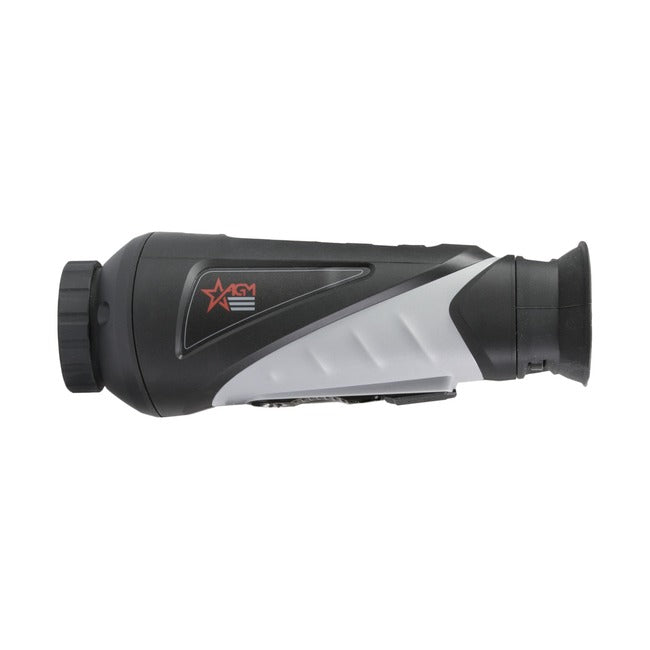

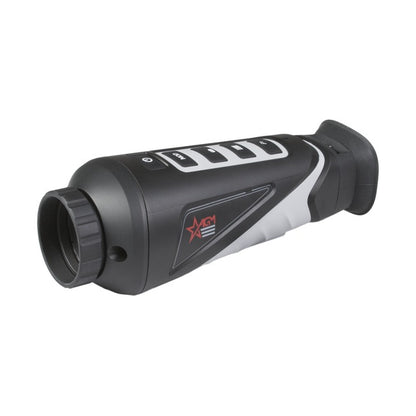

The AGM Asp TM35-640 is a handheld thermal monocular with a 640×512 detector featuring a 17 µm pixel pitch, a 35 mm F1.0 lens, and a 1024×768 OLED display. It is designed for night hunting, wild boar population control, and searching for and observing game in complete darkness, fog, rain, and snow. It has 16 GB of built-in memory for recording video and photos, a Wi-Fi hotspot, an IP67-rated enclosure, and up to 5 hours of battery life.
640×512
VOx detector, 17 µm
< 35 mK
NETD
1029 m
Human detection
IP67
Enclosure rating
Key Features
- Uncooled vanadium oxide (VOx) detector, 640×512, 17 µm pixel, NETD < 35 mK.
- 35 mm F1.0 lens, 17.7° × 14.2° field of view, 1.4× optical zoom, 1×, 2×, 4×, and 8× digital zoom.
- 0.39″ 1024×768 OLED display, 50 Hz refresh rate.
- Automatic gain control, detail enhancement (DDE), and 3D noise reduction (DNR).
- Hot Track (hottest point tracking) and stadia rangefinder.
- Color palettes: black hot, white hot, red hot, fusion.
- Video and photo recording to 16 GB of built-in memory.
- Wi-Fi hotspot—live view and settings adjustment via a mobile app.
- IP67 enclosure, built-in battery providing up to 5 hours of operation, and a 2-year manufacturer's warranty in Europe.
Applications
The manufacturer recommends the Asp TM35-640 for night hunting of predators, wild boar culling and pest control, long-range area searches, wildlife observation, and night walks. According to AGM, the monocular can detect a human silhouette at distances of up to 1029 m and a vehicle at up to 3157 m. The device is intended for civilian use only. The operating time of up to 5 hours applies when the Wi-Fi hotspot is turned off.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | AGM Asp TM35-640 |
| Part number | 3093551006AS31 |
| Detector type | uncooled VOx microbolometer array |
| Detector resolution | 640×512 |
| Pixel pitch | 17 µm |
| Spectral range | 8–14 µm |
| NETD | < 35 mK (25 °C, F1.0) |
| Refresh rate | sensor 50 Hz / OLED 50 Hz |
| Lens focal length | 35 mm |
| Aperture | F1.0 |
| Field of view | 17.7° × 14.2° |
| Optical zoom | 1.4× |
| Digital zoom | 1×, 2×, 4×, 8× |
| Detection range (human 1.8 × 0.5 m / vehicle 1.4 × 4.0 m) | 1029 m / 3157 m |
| Recognition range (human / vehicle) | 257 m / 789 m |
| Identification range (human / vehicle) | 129 m / 395 m |
| Diopter correction | −5 to +3 diopters |
| Calibration (FFC) | automatic, manual, external |
| Color palettes | black hot, white hot, red hot, fusion |
| Display | 0.39″ OLED, 1024×768 |
| Hot Track | yes |
| Memory | built-in, 16 GB |
| Video recording / photos | yes / yes |
| Wi-Fi | yes, hotspot |
| Battery | built-in lithium |
| Operating time | up to 5 hours of continuous operation |
| Charge indicator | yes |
| Power supply | 5 V DC / 2 A, 2 W |
| Operating temperature | −30 to +55 °C |
| Protection rating | IP67 |
| Dimensions | 202 × 74 × 66 mm |
| Weight | 480 g |
| Warranty | 2 years (Europe) |
Package Contents
- AGM Asp TM35-640 thermal monocular
- USB cable
- Lanyard
- Protective cover
- User manual
- Lens cloth
- EU power adapter
- Packaging
Frequently Asked Questions
Does the Asp TM35-640 have a laser rangefinder?
No. The monocular has a stadia rangefinder—distance is calculated by marking the top and bottom edges of an object of known height.
Can I record video and stream it to my phone?
Yes. The monocular records video and photos to 16 GB of built-in memory, and the Wi-Fi hotspot streams live video to a mobile app, where settings can also be adjusted.
How long does the battery last on a single charge?
Up to 5 hours of continuous operation with Wi-Fi turned off. The battery is built-in and charged via USB (5 V, 2 A).
