- 384×28812 µm VOx detector, 50 Hz
- 25 mmF1.0 thermal lens
- 600 mLaser rangefinder (±1 m)
- 1181 mObservation range

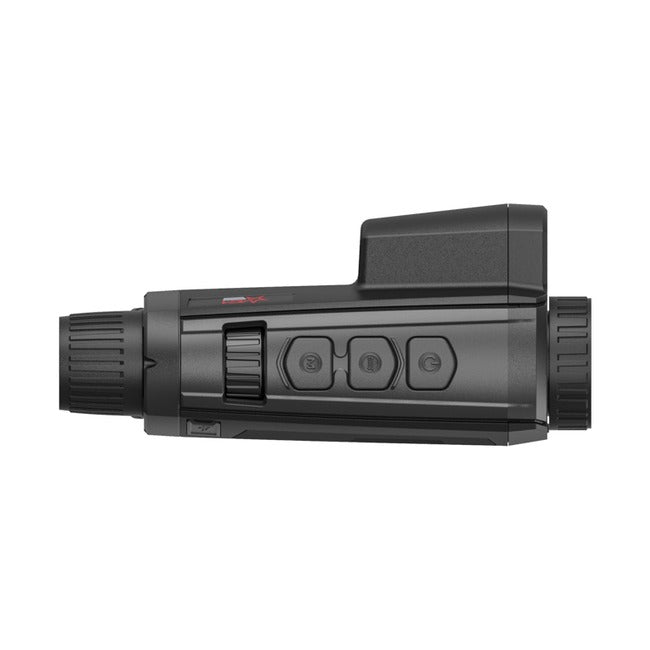

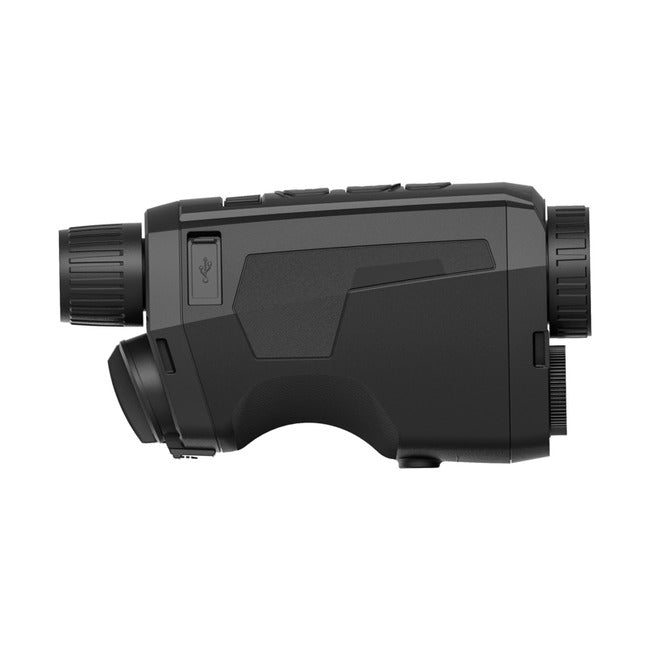

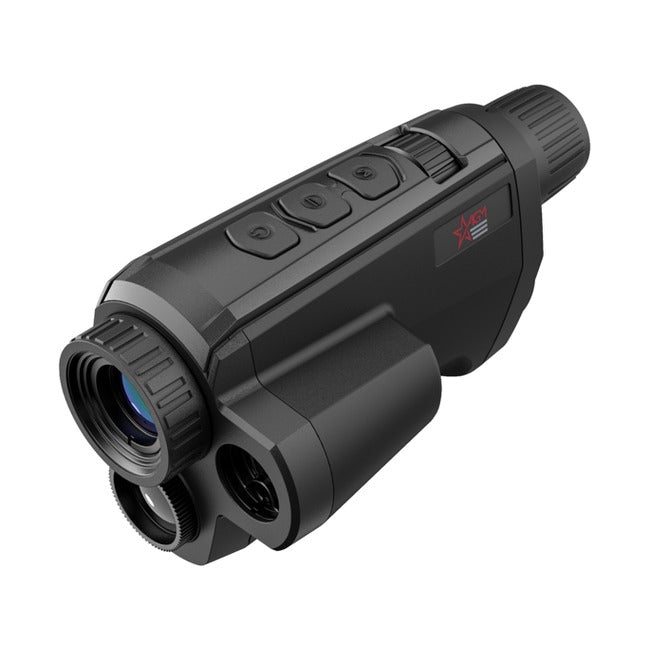

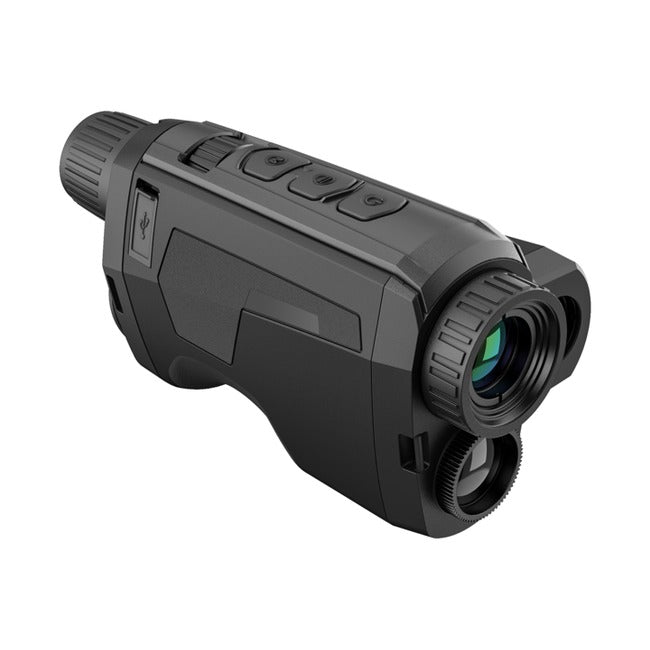

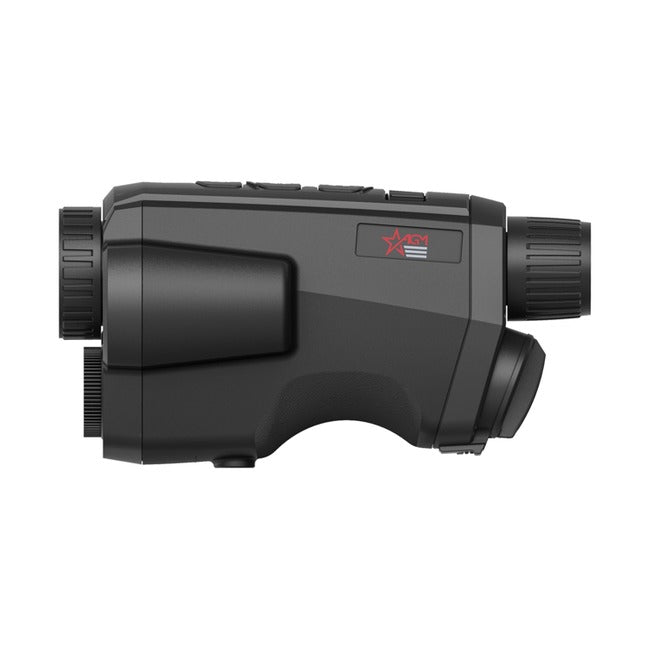

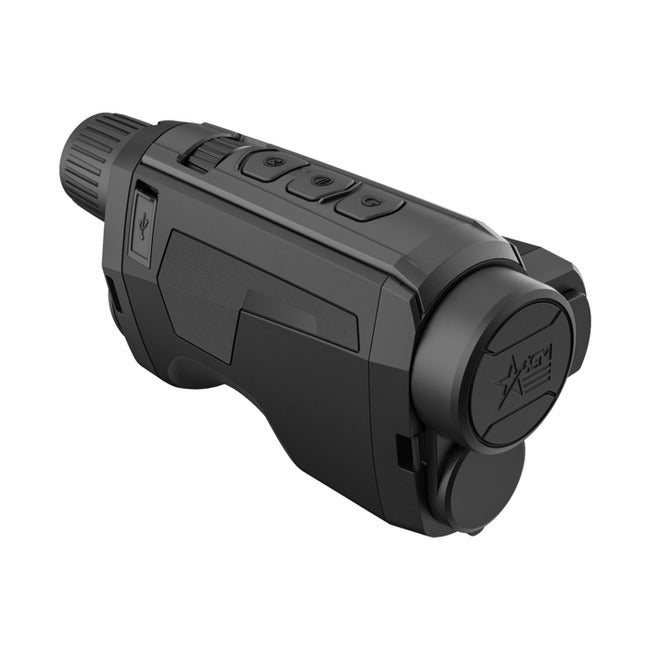

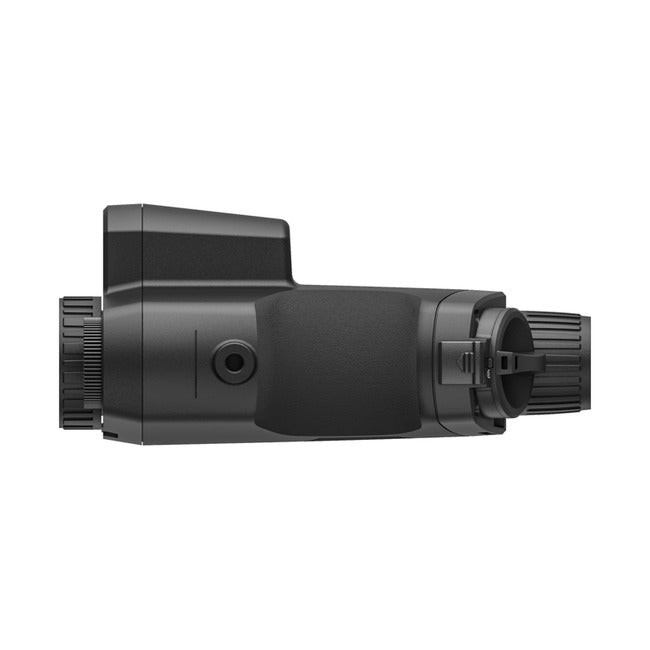

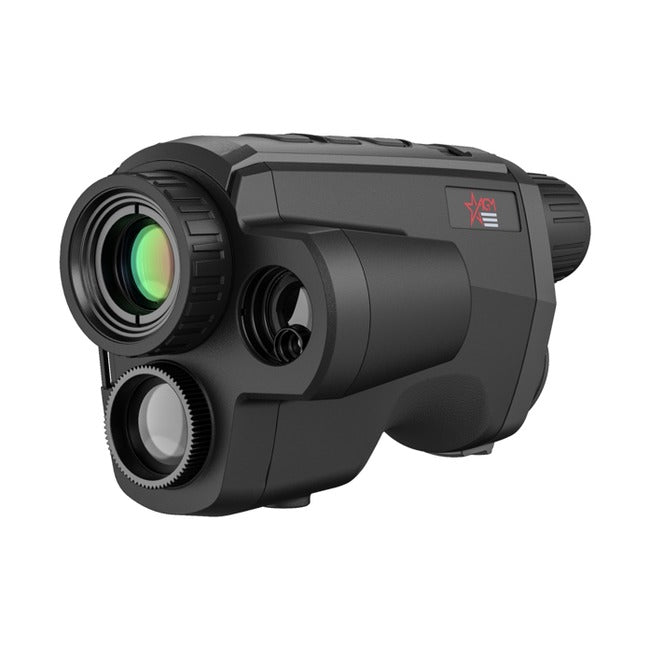

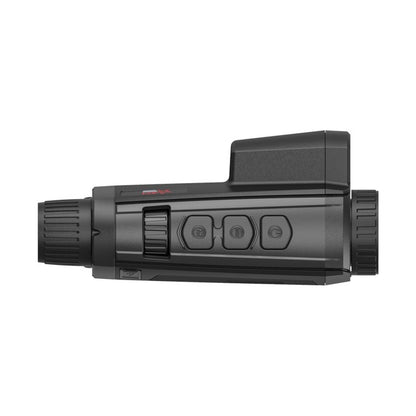

The AGM Fuzion LRF TM25-384 is a handheld dual-spectrum monocular that combines a 384×288 thermal imaging channel with a digital channel for low-light observation and a built-in laser rangefinder. The thermal image can be overlaid on the image from the day camera, making the heat source stand out clearly while the surroundings—trees, terrain, landmarks—remain visible. The 25 mm F1.0 thermal lens provides a manufacturer-rated observation range of 1181 m, and the rangefinder measures distances up to 600 m with an accuracy of ±1 m. The device is designed for hunters, game managers, and wildlife observers at night.
384×288
12 µm VOx detector, 50 Hz
25 mm
F1.0 thermal lens
600 m
Laser rangefinder (±1 m)
1181 m
Observation range
Key Features
- Two image channels: thermal and digital for low-light observation, plus a fusion mode combining both images
- Uncooled 384×288 VOx detector, 12 µm pixel, 50 Hz refresh rate, NETD sensitivity below 35 mK; 25 mm F1.0 lens, 10.5° × 7.9° field of view
- Digital channel with a 1/2" CMOS sensor (400–1000 nm range) and 22 mm lens—visible background at dusk and dawn
- Built-in 905 nm laser rangefinder (Class 1, eye-safe)—measures distances up to 600 m with ±1 m accuracy
- 0.39" 1024×768 OLED display, 2.5–20× magnification (1×, 2×, 4×, 8× digital zoom), diopter correction from −5 to +3 dpt
- Black Hot, White Hot, Red Hot, Fusion, Visible palettes, and image fusion; Jungle and Recognition scene modes, hottest point tracking
- Video recording and photos on 16 GB eMMC built-in memory, Wi-Fi hotspot for live viewing and file management in the AGM app
- Replaceable 18650 battery—up to 5 hours of operation (Wi-Fi and CVBS disabled), external power supply via USB-C; two batteries and a charger included
- IP67 waterproof housing, operating temperature range from −20 to +55 °C
Applications
The Fuzion LRF is useful for locating and identifying game at night, estimating distances before shooting, and wildlife observation. Fusion mode helps locate a target hidden in brush without losing orientation in the terrain, while the digital channel allows you to view details of the surroundings at dusk. The rangefinder displays the distance directly in the field of view, eliminating the need for a separate device. The manufacturer designates the monocular for civilian use only.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | Fuzion LRF TM25-384 |
| Part Number | 3142451304FM21 |
| Detector Type | Uncooled VOx microbolometer array |
| Detector Resolution | 384×288 px |
| Pixel Pitch | 12 µm |
| Refresh Rate | 50 Hz |
| Spectral Range | 8–14 µm |
| Sensitivity (NETD) | <35 mK |
| Thermal Lens | 25 mm, F1.0 |
| Field of View (horiz. × vert.) | 10.5° × 7.9° |
| Magnification | 2.5–20× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Observation Range | 1181 m |
| Diopter Correction | from −5 to +3 dpt |
| Display | 0.39" OLED, 1024×768, 50 Hz |
| Calibration (FFC) | automatic, manual, external |
| Palettes / Image Modes | Black Hot, White Hot, Red Hot, Fusion, Visible, image fusion |
| Scene Modes | Jungle, Recognition |
| Hottest Point Tracking | Yes |
| Digital Channel Sensor | 1/2" CMOS, progressive scan, 1960×1200 at 25 fps |
| Digital Channel Spectral Range | 400–1000 nm |
| Digital Channel Lens | 22 mm |
| Laser Rangefinder | up to 600 m, ±1 m accuracy |
| Laser Wavelength | 905 nm |
| Laser Class | Class 1 |
| Memory | 16 GB eMMC built-in |
| Video Recording / Photos | Yes / Yes |
| Connectivity | Wi-Fi hotspot |
| CVBS Output | Yes (via USB) |
| Sleep Mode | Yes |
| Power Supply | 1 × 18650 battery (replaceable); 5 V DC / 2 A, USB-C, external power supply |
| Operating Time | up to 5 h (25 °C, Wi-Fi and CVBS off); up to 3 h (25 °C, Wi-Fi and CVBS on) |
| Charge Indicator | Yes |
| Operating Temperature | from −20 to +55 °C |
| Sealing | IP67 |
| Dimensions | 158 × 61 × 57 mm |
| Weight | 510 g (without battery) |
Package Contents
- AGM Fuzion LRF TM25-384 Monocular
- 2 × 18650 batteries
- Battery charger
- USB cable
- EU power plug
- Rubber eye cup
- Lens cloth
- User manual
Frequently Asked Questions
How far does the built-in rangefinder measure?
The Class 1 905 nm laser rangefinder measures distances up to 600 m with ±1 m accuracy, and the result is displayed in the field of view.
What is fusion mode?
It overlays the thermal image on the image from the digital channel. Heat sources stand out while details of the surroundings remain visible. Each channel can also be used separately.
How long does it last on a single battery?
Up to 5 hours at 25 °C with Wi-Fi and CVBS output disabled, and up to 3 hours with them enabled. Two 18650 batteries and a charger are included, and the device can also be powered externally via USB-C.
