- PVS-14Fits
- 5A0574RPO part number
- 40 gWeight
- 25 mmEye relief

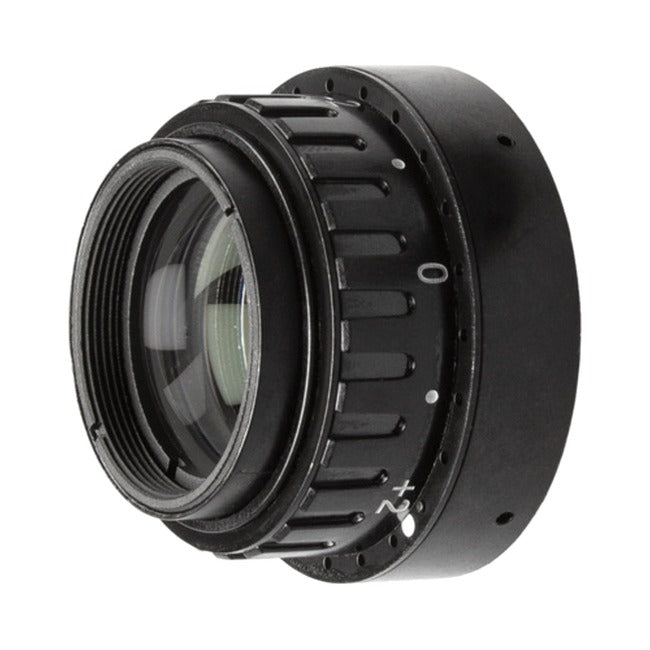

The RPO eyepiece assembly (part number 5A0574) is a lightweight, replaceable eyepiece for the PVS-14 night vision device, supplied with a diopter adjustment system. It weighs 40 g, provides a 25 mm eye relief, and a 40° field of view. The manufacturer publishes full optical specifications for it, making it a good part for service centers and companies assembling night vision devices that require documented parameters.
PVS-14
Fits
5A0574
RPO part number
40 g
Weight
25 mm
Eye relief
Key Features
- RPO eyepiece assembly, part number 5A0574, with a diopter adjustment system.
- Weight: 40 g.
- Eye relief: 25 mm (+0/−0.2 mm).
- Diopter correction from +2 to −6 diopters at 25 mm eye relief.
- Field of view: 40.0° ±1° for an 18 mm image format.
- Exit pupil: at least 14 mm on axis.
- Transmission: at least 85% (weighted average in the 400–680 nm range).
- Watertightness: immersion at a depth of 20 m for at least 2 hours.
Applications
The eyepiece is designed for the PVS-14 monocular. It is suitable for replacing a damaged eyepiece, assembling a night vision device from an SKD housing, and reducing the weight of a helmet-mounted device. Replacing the optical assembly requires disassembling the device and readjusting the focus, so we recommend that it be performed by a service center or someone with experience assembling night vision devices. If you have any doubts about selecting the correct part, contact us before purchasing.
Technical Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Model | PVS14 RPO Eyepiece Lens Assembly lightweight |
| Part number | 5A0574 |
| Weight | 40 g |
| Eye relief | 25 mm +0/−0.2 mm |
| Effective focal length (EFL) | 27.03 mm ±0.5 mm |
| Flange distance | 10 mm +0.28/−0.42 mm |
| Exit pupil | ≥ 14 mm on axis |
| Field of view | 40.0° ±1° (18 mm image format) |
| Diopter correction | from +2 to −6 diopters at 25 mm eye relief |
| Transmission | ≥ 85% (weighted average 400–680 nm) |
| Distortion | −8% ±0.5% at a 20° half-angle of field |
| Watertightness | immersion at 20 m for at least 2 h |
Frequently Asked Questions
What is the diopter adjustment range?
From +2 to −6 diopters at 25 mm eye relief.
How much does the eyepiece weigh?
The manufacturer states a weight of 40 g.
Is the eyepiece water-resistant?
The specifications state resistance to immersion at a depth of 20 m for at least 2 hours.
