Product description

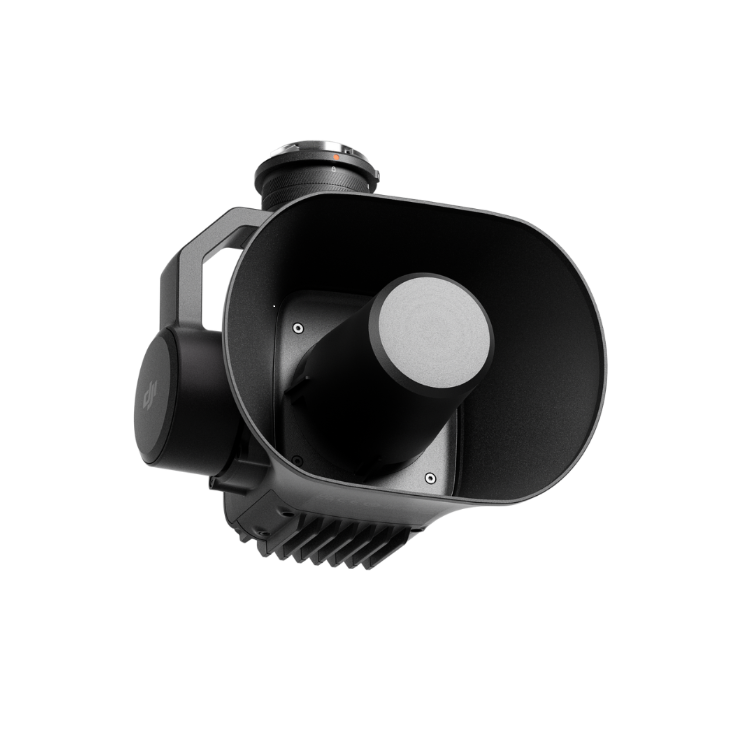

DJI Zenmuse V1 is a professional aviation speaker designed for class drones. enterprise, enabling effective voice communication during missions rescue, law enforcement, public safety operations and traffic management and evacuation. Thanks to the stabilized gimbal, high power acoustic and support for recording, playback and Text-to-Speech functions, The Zenmuse V1 allows you to quickly transmit voice messages over long distances, while maintaining high sound quality and operational reliability.
Technical specifications
General
| Product name | Zenmuse V1 |
|---|---|
| Dimensions | 134 × 119 × 140 mm (L×W×H) |
| Libra | 690 ± 10 g |
| Rated power | 30 W |
| Supported drones | Matrice 300 RTK (requires DJI RC Plus) • Matrice 350 RTK |
| Housing temperature | <50°C (plastic housing) |
| Degree of protection | IP54 |
Work environment
| Operating temperature | -20° to 50°C |
|---|---|
| Storage temperature | -20° to 60°C |
Gimbal
| Stabilization system | Single axis (pitch) |
|---|---|
| Angular vibration range | Hover: ±0.01° • Flight: ±0.02° |
| Mounting | Detachable DJI SKYPORT |
| Mechanical range | Pitch: -125° to +25° |
| Controlled range | Pitch: -120° to +20° |
| Operating modes | Watch • Free • Re-center |
Loudspeaker
| Impedance | 4 ohms |
|---|---|
| Nominal power | 25 W |
| Effective transmitting distance | Up to 500 m |
| Max sound pressure level | 127 dB @1 m |
| Frequency response | 800 Hz – 8 kHz |
Basic functions
| Recording and broadcasting | Recording, broadcasting, local playback and saving |
|---|---|
| Text-to-Speech | TTS and writing support (English, Mandarin) |
| File playback | MP3, AAC, WAV |
| Playback controls | Start / Stop / Loop / Volume Control |
| Button on the controller | Press once: record • press twice: stop and play |
| Gimbal synchronization | Yes |
Special features
| Directional audio recording | Ambient noise reduction |
|---|---|
| Component protection | Speaker temperature, overcurrent and power supply protection |
