Product description

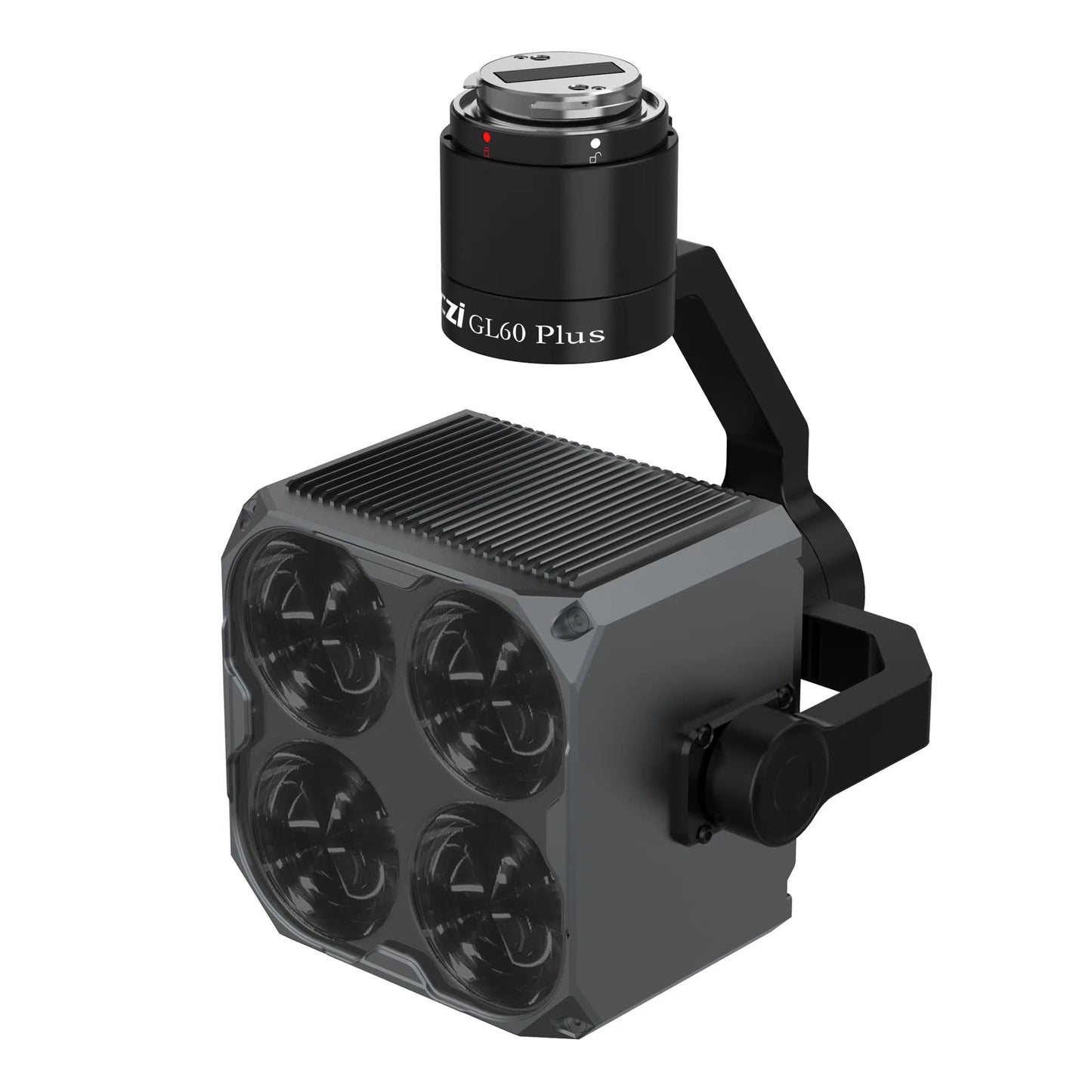

The CZI GL60 Plus Gimbal Searchlight is a high-performance, aircraft-grade searchlight. enterprise, designed to intensively illuminate the area during nighttime drone operations. Thanks to the use of four sets of lenses optical with a beam angle of 15°, the device generates a focused, uniform beam lights with high brightness and consistent color temperature. High LED power and precise gimbal stabilization allows for effective lighting of large areas from a high altitude, which makes the GL60 Plus an ideal tool for operations rescue, fire-fighting, infrastructure inspections and night patrols.
Technical specifications
General
| Product name | GL60 Plus |
|---|---|
| Electrical interface | DJI SkyPort V2.0 |
| Dimensions | 126 × 131 × 167 mm |
| Libra | 750 g |
| Beam angle (FOV) | 15° |
| Supply voltage | PSDK 17 V + OSDK 24 V |
Power and light parameters
| LED power | 120W / 60W |
|---|---|
| Total power | 128W / 68W |
| Color temperature | 5000–6000 K |
| Luminous flux | 13,400 lm ±3% (120 W) • 8000 lm ±3% (60 W) |
| Luminous efficiency | 111.67 lm/W • 133.33 lm/W |
Range and light intensity
| Spot diameter | 13.2 m @50 m • 26.4 m @100 m • 39.5 m @150 m |
|---|---|
| Illuminated area | 136 m² @50 m • 544 m² @100 m • 1225 m² @150 m |
| Central intensity | 85 lux @50 m (120 W) • 23 lux @100 m • 11 lux @150 m |
| Central intensity (60 W) | 45 lux @50 m • 12 lux @100 m • 6 lux @150 m |
Operating modes
| Modes | Normal (120W / 60W) • Sharp Flash |
|---|---|
| Control | Gimbal angle and brightness adjustment |
Gimbal
| Swivel range | Pitch: -99° to +23° • Yaw: ±99° |
|---|---|
| Construction scope | Tilt: -100° to +24° • Pan: ±100° • Roll: -90° to +60° |
Work environment
| Operating temperature | -20°C to +50°C |
|---|
